Extension rack CLIP galvanized type 1567
Code: 1567
CLIP extension rack, galvanized finish, depth 600 mm, height 2000 mm, 5 shelves, width 1000 mm. Screwless, easy assembly. Shelf full description and parameters
Description and technical parameters
Extension rack CLIP galvanized type 1567

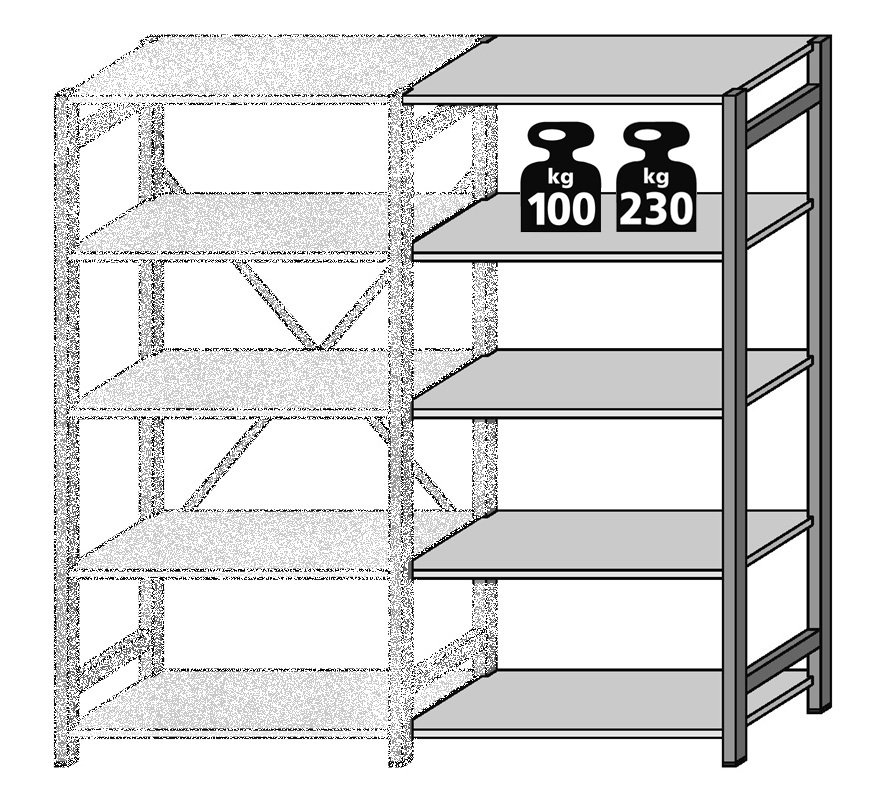

CLIP extension rack, galvanized finish, depth 600 mm, height 2000 mm, 5 shelves, width 1000 mm. Screwless, easy assembly. Shelf capacity 230 kg. Attention, only one web - it is used for setting the base racks.
- the stand is delivered already assembled
- 5 shelves are supplied as standard for a rack height of 2000 mm
- for a rack height of 2500 mm, 6 shelves are supplied as standard
- for a rack height of 3000 mm, 7 shelves are supplied as standard
- the dimensions shown are the dimensions of the shelves, the actual width of the rack is approx. 6 mm larger and the depth approx. 36 mm larger
- extra shelves can be purchased
All models
| Code | 1543 | 1555 | Currently browsing 1567 | 1547 | 1559 | 1571 | 1551 | 1563 | 1575 |
|---|---|---|---|---|---|---|---|---|---|
| Total height | 2000 mm | 2000 mm | 2000 mm | 2500 mm | 2500 mm | 2500 mm | 3000 mm | 3000 mm | 3000 mm |
| Width | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
| Depth | 400 mm | 500 mm | 600 mm | 400 mm | 500 mm | 600 mm | 400 mm | 500 mm | 600 mm |
| Shelf capacity | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg |
| Column load capacity | 1560 kg | 1560 kg | 1560 kg | 2400 kg | 2400 kg | 2400 kg | 2020 kg | 2020 kg | 2020 kg |
| Number of shelves | 5 | 5 | 5 | 6 | 6 | 6 | 7 | 7 | 7 |
| Mass | 23.6 kg | 26.8 kg | 31.7 kg | 29.1 kg | 33.1 kg | 39.1 kg | 33.7 kg | 38.2 kg | 45.2 kg |
| In stock | No | No | Yes | No | No | No | No | No | No |
| Price without VAT | 94.96 Eur | 105.18 Eur | 123.17 Eur | 116.95 Eur | 129.56 Eur | 151.49 Eur | 136.43 Eur | 151.02 Eur | 176.83 Eur |
Information / documents
- Important information and documents
- Available colors and designs
Before you order the shelf:
- please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
- an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
- this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
- when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well
Documents for download:
- CLIP + FIX Declaration of Conformity
- META shelf catalog
- META CLIP assembly instructions
- CLIP accessory assembly instructions
- META COMPACT assembly instructions
- META CLIP S3 assembly instructions
- META FIX assembly instructions
- META Speed-Rack assembly instructions
- META Mini-Rack assembly instructions
- ATLAS, Multistrong M+L assembly instructions
- META Multipal assembly instructions
- Multipal accessories assembly instructions
- META Multistrong H assembly instructions
- META Reifenregal assembly instructions
- load capacities of META Fix shelves
