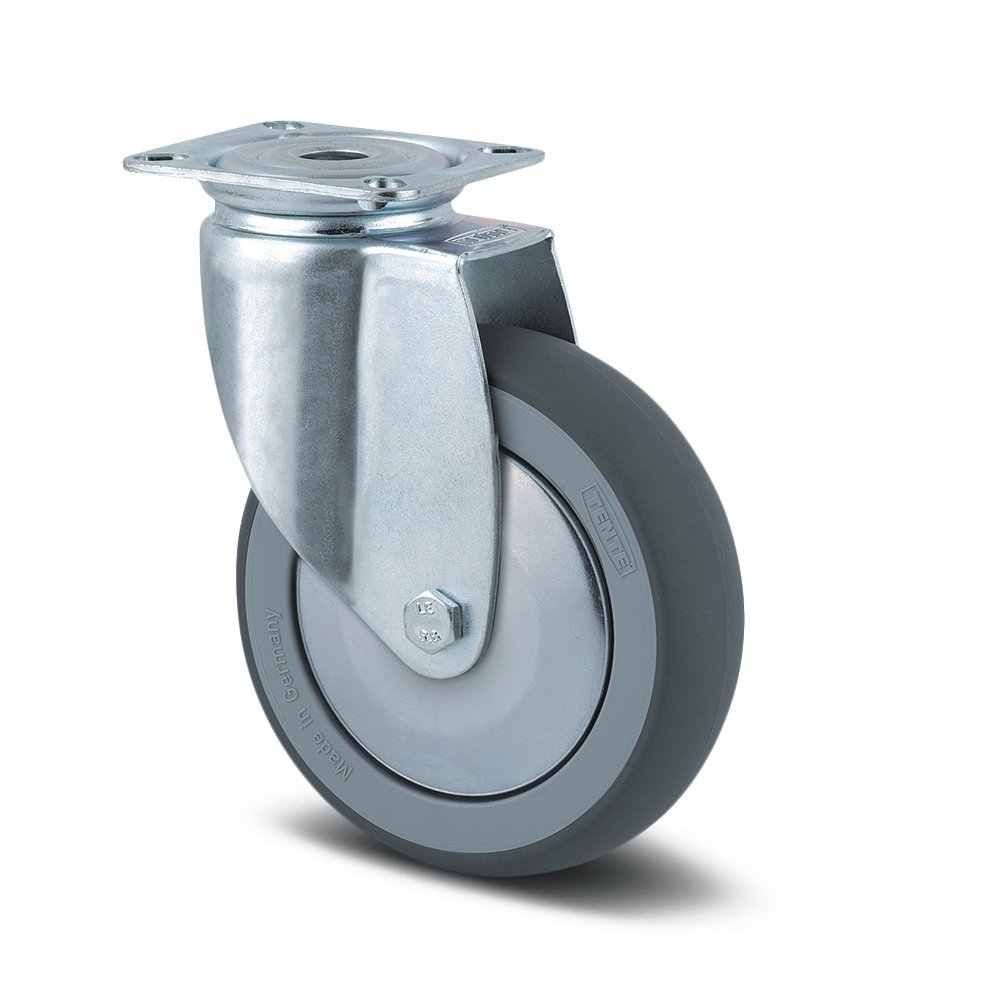

Gray instrument wheel ø 125 mm with plate attachment, rotatable with cover
Code: 2470PJH125P50
Rotating instrument wheel with a diameter of 125 mm, fork made of pressed steel, double ball bearing in the rotating head, wheel full description and parameters
Description and technical parameters
Tool wheel gray ø 125 mm with mounting plate 2470PJH125P50
Rotating instrument wheel with a diameter of 125 mm, fork made of pressed steel, double ball bearing in the rotating head, wheel with screw and nut, attachment with plate. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double ball bearing with thread protection
- temperature resistance -20 °C to 60 °C
- plate size 77 x 67 mm
- hole spacing 61.5/56 x 51.5/46.5 mm
- hole diameter 8.5 mm
- turning radius 103.5 mm
- dynamic load capacity 100 kg
- static load capacity 200 kg
- wheel diameter 125 mm
- tread width 32 mm
- tread hardness Shore A87
- meets the EN 12530 standard
- building height 160 mm
| Carrying capacity: | 80 kg |
|---|---|
| Wheel diameter: | 125 mm |
| Bearings: | ball |
| Warranty (years): | 7 |
| Manufacturer: |
|
All models
| Code | 2470PJH075P40 | 2470PJH100P50 | Currently browsing 2470PJH125P50 |
|---|---|---|---|
| Carrying capacity | 75 kg | 80 kg | 80 kg |
| Wheel diameter | 75 mm | 100 mm | 125 mm |
| Bearings | ball | ball | ball |
| In stock | No | Yes | Yes |
| Price without VAT | 6.12 Eur | 13.46 Eur | 14.35 Eur |
