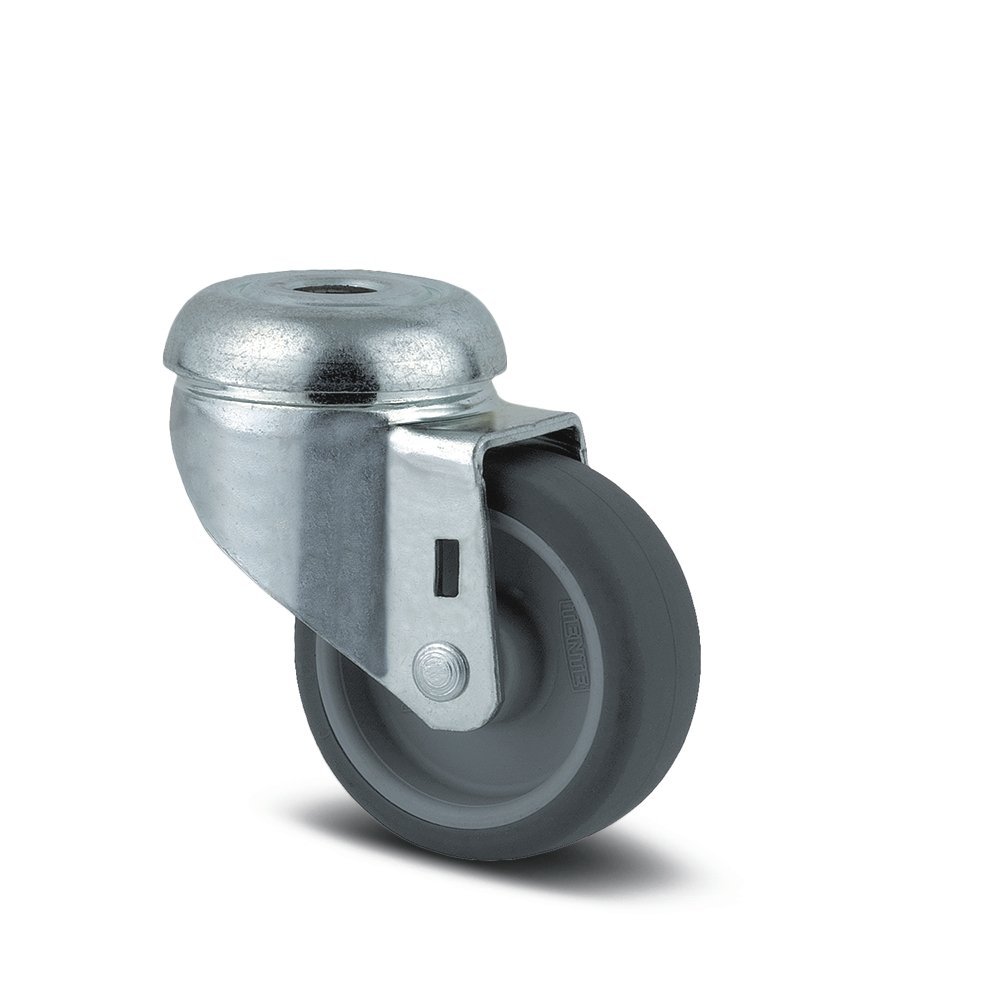

Gray instrument wheel, pin hole, center riveted
Code: 2470PJI050P30-11
Rotating instrument wheel with ø 50 mm, fork made of pressed steel, double ball bearing in rotating head, center riveted, hole for full description and parameters
Description and technical parameters
Instrument wheel gray ø 50 mm 2470PJI050P30-11
Rotating instrument wheel with ø 50 mm, fork made of pressed steel, double ball bearing in rotating head, center riveted, hole for pin. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing. It can be mounted with standard screws of any length.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double ball bearing with thread protection
- temperature resistance -20 °C to 60 °C
- diameter of central hole 11 mm
- turning radius 49 mm
- dynamic load capacity 40 kg
- static load capacity 80 kg
- wheel diameter 50 mm
- tread width 19 mm
- tread hardness Shore A87
- meets the EN 12530 standard
- building height 69 mm
| Carrying capacity: | 40 kg |
|---|---|
| Wheel diameter: | 50 mm |
| Bearings: | ball |
| Warranty (years): | 7 |
| Manufacturer: |
|
