Handling chassis 24041935
Code: 24041935
A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis full description and parameters
Description and technical parameters

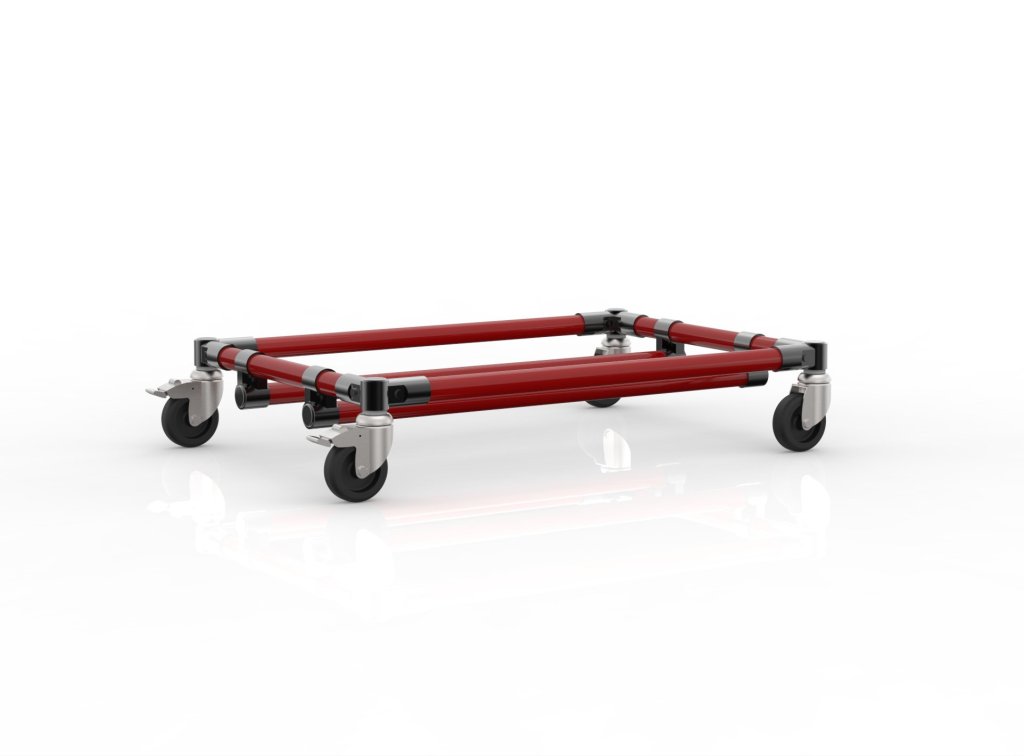

Mounted steel chassis 24041935
A handling trolley made from a tubular system is suitable for various handling purposes in warehouses and workshops. The chassis includes 2 swivel casters with brakes and 2 swivel casters without brakes, with a diameter of 75 mm, allowing easy handling of items. The internal dimension is designed for a crate measuring 600 x 400 mm. Dimensions are 678 x 478 x 138 mm.
- a trolley made from a tubular system
- 2x swivel wheels with brakes, 2x without brakes
- wheel diameter 75 mm
- internal dimensions for a crate measuring 600 x 400 mm
- high load capacity 160 kg
- dimensions 678 x 478 x 138 mm
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in an ESD or stainless steel variant (suitable for gastronomy).
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Height: | 350 mm |
|---|---|
| Total height: | 138 mm |
| Width: | 840 mm |
| Width: | 678 mm |
| Depth: | 478 mm |
| Carrying capacity: | 160 kg |
| Wheel diameter: | 75 mm |
| Warranty (years): | 2 |
All models
| Code | 24041931 | Currently browsing 24041935 | 24041937 |
|---|---|---|---|
| Height | mm | 350 mm | 350 mm |
| Total height | 138 mm | 138 mm | 138 mm |
| Width | 678 mm | 678 mm | 878 mm |
| Width | mm | 840 mm | 840 mm |
| Depth | 478 mm | 478 mm | 678 mm |
| Carrying capacity | 100 kg | 160 kg | 160 kg |
| Wheel diameter | 75 mm | 75 mm | 75 mm |
| In stock | No | No | No |
| Price without VAT | 74.12 Eur | 83.76 Eur | 91.02 Eur |
