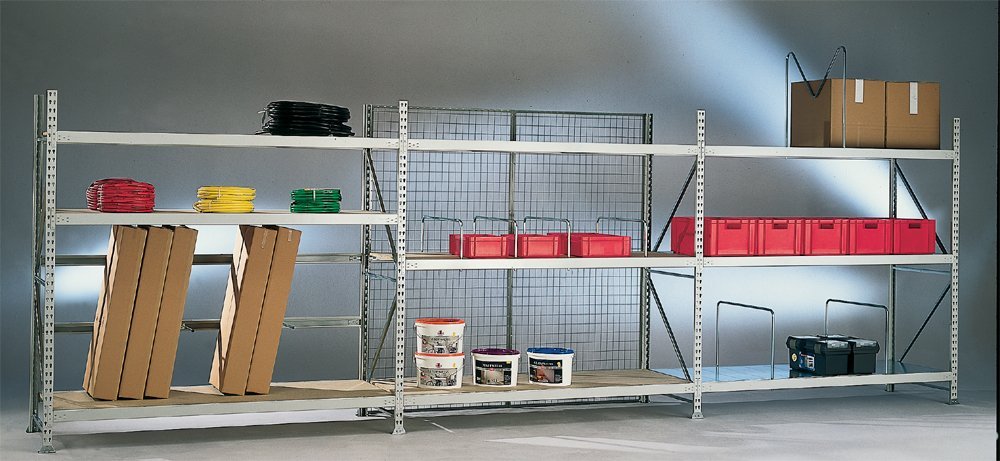

MINI-RACK - extension rack with wide spacing of frames type 41571
MINI-RACK - extension rack with wide spacing of frames type 41571 - 1
MINI-RACK - extension rack with wide spacing of frames type 41571 - 2
MINI-RACK - extension rack with wide spacing of frames type 41571 - 3

MINI-RACK - extension rack with wide spacing of frames type 41571

Code: 41571

Rack height 2500 mm, width 2600 mm, depth 800 mm, shelf capacity 490 kg. Suitable for storing large heavy objects. The surface of full description and parameters

Show all models

Made to order, delivery time 2 - 5 weeks. It may vary depending on the manufacturer's capacity.

465.56 Eur 563.33 Eur with VAT

Quantity

Description and technical parameters

MINI-RACK - extension rack with wide spacing of frames type 41571

Rack height 2500 mm, width 2600 mm, depth 800 mm, shelf capacity 490 kg. Suitable for storing large heavy objects. The surface of the rack is galvanized, 4 x shelves made of natural chipboard with a thickness of 18 mm. Attention, only one web - it is used to set the base racks.

  • for storage lying down and standing up
  • height adjustable shelves in 50 mm grid
  • beams are perforated in a grid of 200 mm
  • shelf weights between 84 - 238 kg
  • racks heights: 2500 mm standard, 2200 mm, 3000 mm on request
  • rack capacity 490 or 600 kg
  • the dimensions shown are the dimensions of the shelves, the actual width of the rack is approx. 51 mm larger
Total height: 2500 mm
Width: 2600 mm
Depth: 800 mm
Shelf capacity: 490 kg
Column load capacity: 2500 kg
Number of shelves: 4
Mass: 185 kg
Warranty (years): 5
Manufacturer:

All models

Code 51274 51278 51282 51286 51290 51294 51298 51302 51306 51310 Currently browsing 41571 51316
Total height 2500 mm 2500 mm 2500 mm 2500 mm 2500 mm 2500 mm 2500 mm 2500 mm 2500 mm 2500 mm 2500 mm 2500 mm
Width 1400 mm 1400 mm 1400 mm 1800 mm 1800 mm 1800 mm 2200 mm 2200 mm 2200 mm 2600 mm 2600 mm 2600 mm
Depth 650 mm 800 mm 1050 mm 650 mm 800 mm 1050 mm 650 mm 800 mm 1050 mm 650 mm 800 mm 1050 mm
Shelf capacity 600 kg 600 kg 600 kg 600 kg 600 kg 600 kg 600 kg 600 kg 600 kg 490 kg 490 kg 490 kg
Column load capacity 4350 kg 4350 kg 4350 kg 3200 kg 3200 kg 3200 kg 2750 kg 2750 kg 2750 kg 2500 kg 2500 kg 2500 kg
Number of shelves 4 4 4 4 4 4 4 4 4 4 4 4
Mass 84 kg 95 kg 116 kg 105 kg 121 kg 148 kg 135 kg 155 kg 187 kg 161 kg 185 kg 225 kg
In stock No No No No No No No No No No No No
Price without VAT 254.48 Eur 273.08 Eur 308.35 Eur 297.18 Eur 322.90 Eur 367.71 Eur 366.95 Eur 399.47 Eur 464.53 Eur 426.88 Eur 465.56 Eur 558.31 Eur
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart
Into the cart

Information / documents

  • Important information and documents
  • Available colors and designs

Before you order the shelf:

  • please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
  • an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
  • this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
  • when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well

Documents for download:
