Picking trolley
Code: 22031604
Auxiliary picking trolley from the tubular modular system. Thanks to the ergonomic design with handles, the trolley is easy to full description and parameters
Description and technical parameters

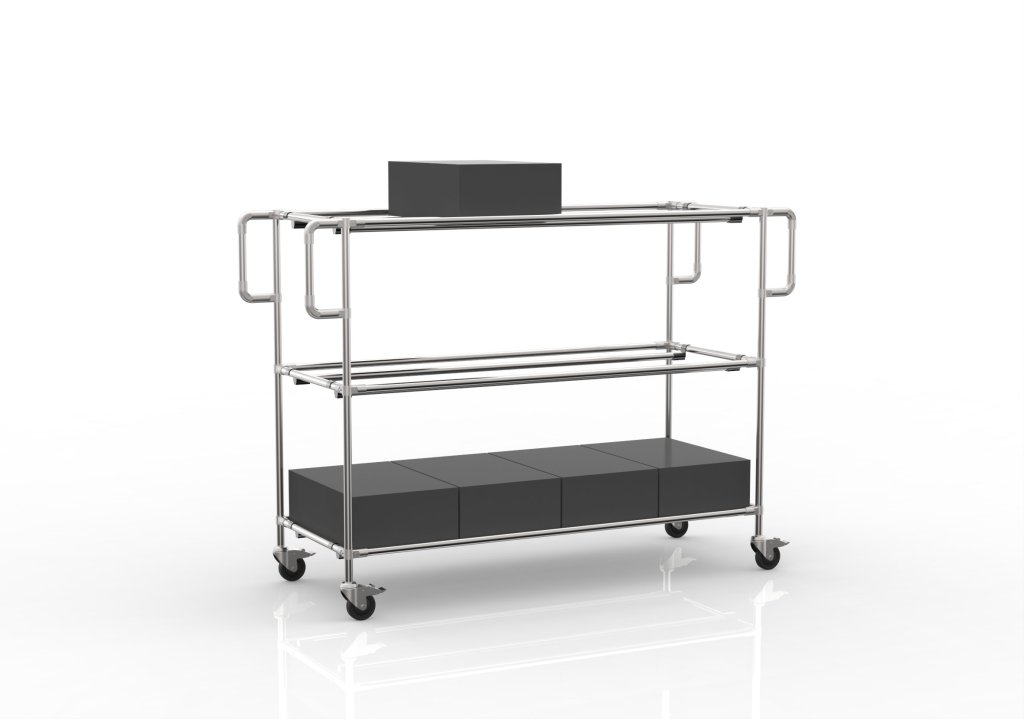

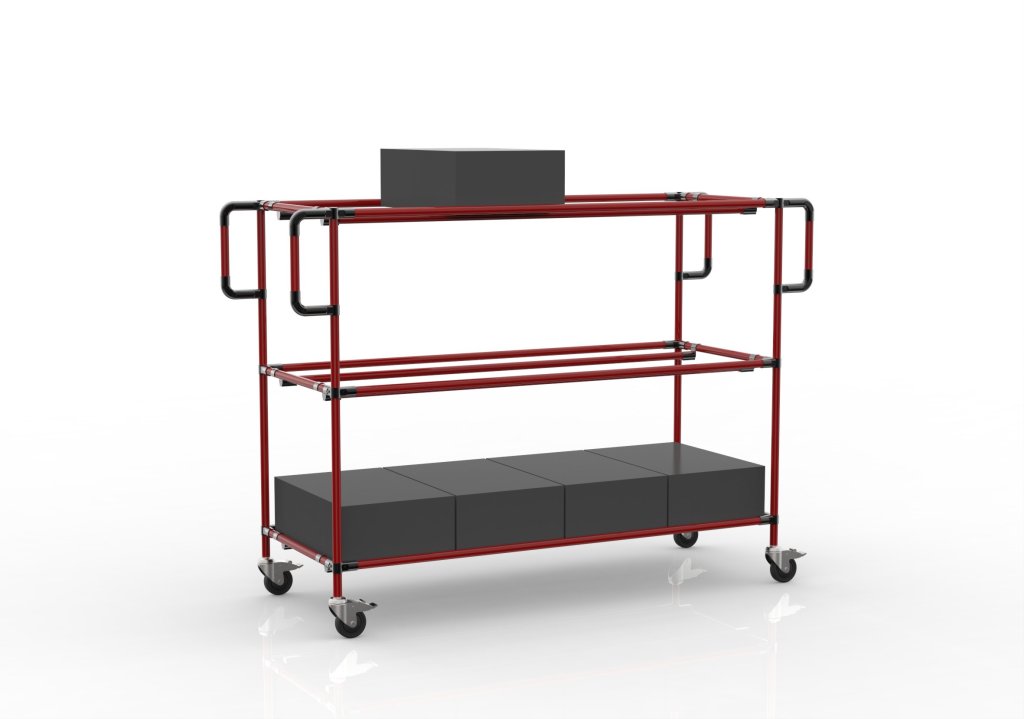

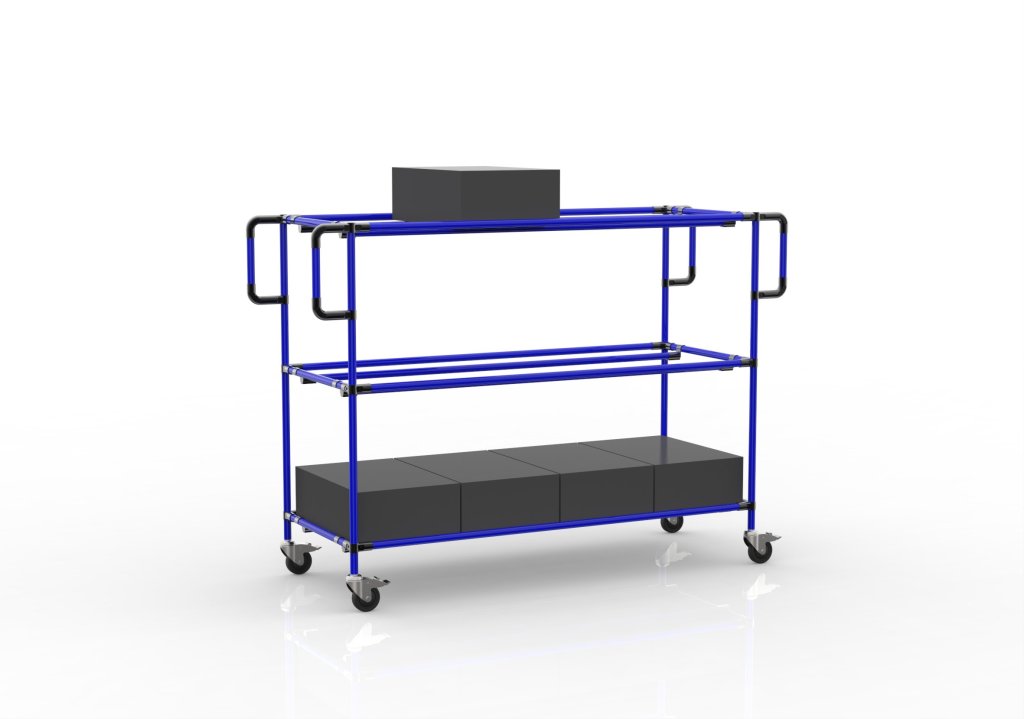

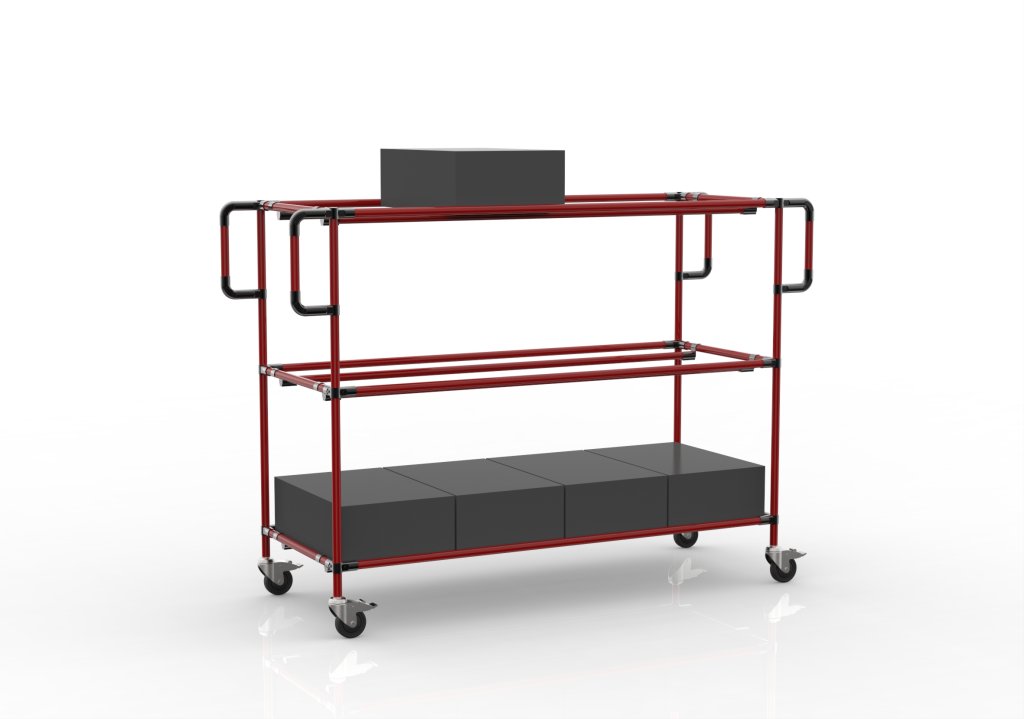

Picking trolley
Auxiliary picking trolley from the tubular modular system. Thanks to the ergonomic design with handles, the trolley is easy to handle. The robust construction of the tube system ensures the safe transport of KLT crates. Suitable for transporting KLT crates 600 x 400 x 147 (RL-KLT-6147). Load capacity per floor 40 kg, total load capacity 120 kg. Dimensions 1370 x 1703 x 683 mm.
- picking cart from the pipe system
- ergonomic design with handles for easy handling
- suitable for transporting KLT crates 600 x 400 x 147
- load capacity per floor 40 kg
- total load capacity 120 kg
- 4x swivel wheel with brake
- wheel diameter 100 mm
- dimensions 1370 x 1703 x 683 mm
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
| Total height: | 1370 mm |
|---|---|
| Width: | 683 mm |
| Depth: | 1703 mm |
| Carrying capacity: | 120 kg |
| Shelf capacity: | 40 kg |
| Wheel diameter: | mm |
| Assembled product: | Yes |
| Warranty (years): | 2 |
