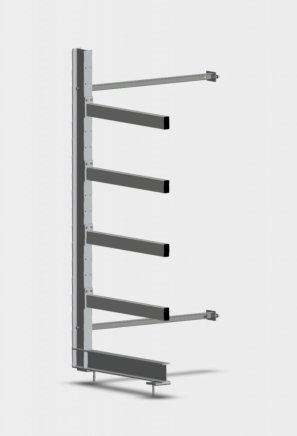

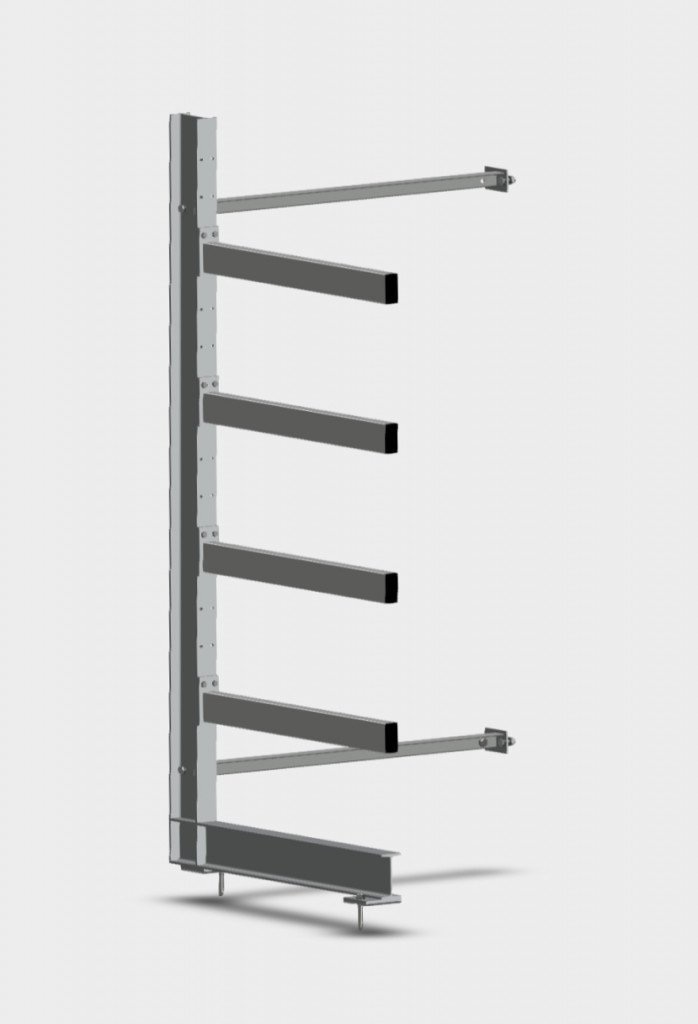

Cantilever rack - single-sided corbel extension KJP201350
Cantilever rack - single-sided corbel extension KJP201350 - 1
Cantilever rack - single-sided corbel extension KJP201350 - 2
Cantilever rack - single-sided corbel extension KJP201350 - 3
Cantilever rack - single-sided corbel extension KJP201350 - 4
Cantilever rack - single-sided corbel extension KJP201350 - 5
Cantilever rack - single-sided corbel extension KJP201350 - 6

Cantilever rack - single-sided corbel extension KJP201350

Code: KJP201350

Medium load rack for standing and lying long material, height 2000, width 1300, depth 500 mm, number of arms 4 per post, arm load full description and parameters

Show all models

Made to order, delivery time 6-8 weeks. It may vary depending on the manufacturer's capacity.

467.63 Eur 565.83 Eur with VAT

Quantity

Description and technical parameters

Cantilever rack - single-sided corbel extension KJP201350

Medium load rack for standing and lying long material, height 2000, width 1300, depth 500 mm, number of arms 4 per post, arm load capacity 430 kg, one-sided web load capacity 2340 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.

  • for storage of board and board material
  • cylindrical profiles IPE 140
  • height-adjustable arms in 100 mm increments
  • perfect security worked out to the last detail
  • production is approved by SZU and is produced under ISO 9001 management conditions
  • the consoles can be supplemented with grates (hot-dip galvanized) or chipboards (raw DTD)
  • upon request, it is possible to supply racks in a different size (columns up to a maximum height of 10 m, consoles up to a maximum length of 2 m), with a different load capacity or in an outdoor hot-dip galvanized version
Total height: 2000 mm
Width: 1300 mm
Depth: 500 mm
The bearing capacity of the web is one-sided: 2340 kg
Carrying capacity of the arm: 430 kg
Number of arms: 4
Warranty (years): 5
Manufacturer:

All models

Code KJP201050 KJP201080 KJP251050 KJP251080 KJP301050 KJP301080 Currently browsing KJP201350 KJP201380 KJP251350 KJP251380 KJP301350 KJP301380
Total height 2000 mm 2000 mm 2500 mm 2500 mm 3000 mm 3000 mm 2000 mm 2000 mm 2500 mm 2500 mm 3000 mm 3000 mm
Width 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1300 mm 1300 mm 1300 mm 1300 mm 1300 mm 1300 mm
Depth 500 mm 800 mm 500 mm 800 mm 500 mm 800 mm 500 mm 800 mm 500 mm 800 mm 500 mm 800 mm
The bearing capacity of the web is one-sided 2340 kg 1650 kg 2200 kg 1500 kg 2000 kg 1250 kg 2340 kg 1650 kg 2200 kg 1500 kg 2000 kg 1250 kg
Carrying capacity of the arm 430 kg 250 kg 430 kg 250 kg 430 kg 250 kg 430 kg 250 kg 430 kg 250 kg 430 kg 250 kg
Number of arms 4 4 4 4 5 5 4 4 4 4 5 5
In stock No No No No No No No No No No No No
Price without VAT 453.67 Eur 460.65 Eur 537.43 Eur 544.41 Eur 593.27 Eur 656.08 Eur 467.63 Eur 474.61 Eur 523.47 Eur 530.45 Eur 621.18 Eur 684.00 Eur
