Cantilever rack - single-sided corbel base KJZ201350
Code: KJZ201350
Medium load rack for standing and lying long material, height 2000, width 1300, depth 500 mm, number of arms 4 per post, arm load capacity 430 kg, one-sided web load capacity 2340 kg. Color RAL 5010 full description and parameters
Technical parameters
Total height
2000 mm
Width
1300 mm
Depth
500 mm
The bearing capacity of the web is one-sided
2340 kg
Carrying capacity of the arm
430 kg
Number of arms
4
Warranty (years)
5
Manufacturer
Product description

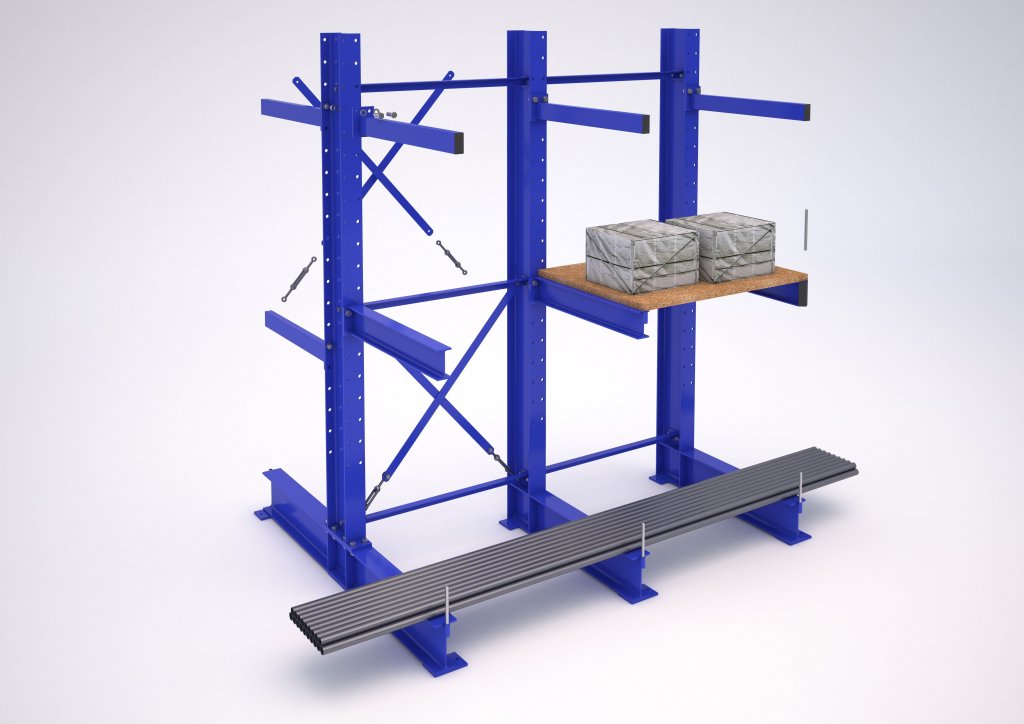

Cantilever rack - single-sided corbel base KJZ201350
Medium load rack for standing and lying long material, height 2000, width 1300, depth 500 mm, number of arms 4 per post, arm load capacity 430 kg, one-sided web load capacity 2340 kg. Color RAL 5010 blue. For these products, even with a purchase value over CZK 3,000 excluding VAT, shipping is paid according to the place of delivery. Personal collection in Chrudim.
- for storage of board and board material
- cylindrical profiles IPE 140
- height-adjustable arms in 100 mm increments
- perfect security worked out to the last detail
- production is approved by SZU and is produced under ISO 9001 management conditions
- the consoles can be supplemented with grates (hot-dip galvanized) or chipboards (raw DTD)
- upon request, it is possible to supply racks in a different size (columns up to a maximum height of 10 m, consoles up to a maximum length of 2 m), with a different load capacity or in an outdoor hot-dip galvanized version
All models
Technical parameters
Code
Number of arms
Carrying capacity of the arm
The bearing capacity of the web is one-sided
Total height
Width
Depth
In stock
Price
You are currently browsing
KJZ201350
4
430 kg
2340 kg
2000 mm
1300 mm
500 mm
No
823.59 €
