Frame 2623 HO
Code: 2623 HO
The HO framework is used to create the basic structure of an assembly. The part serves to increase the distance between the shelves. By inserting one HO Frame between two U Frames, you create space full description and parameters
Product description

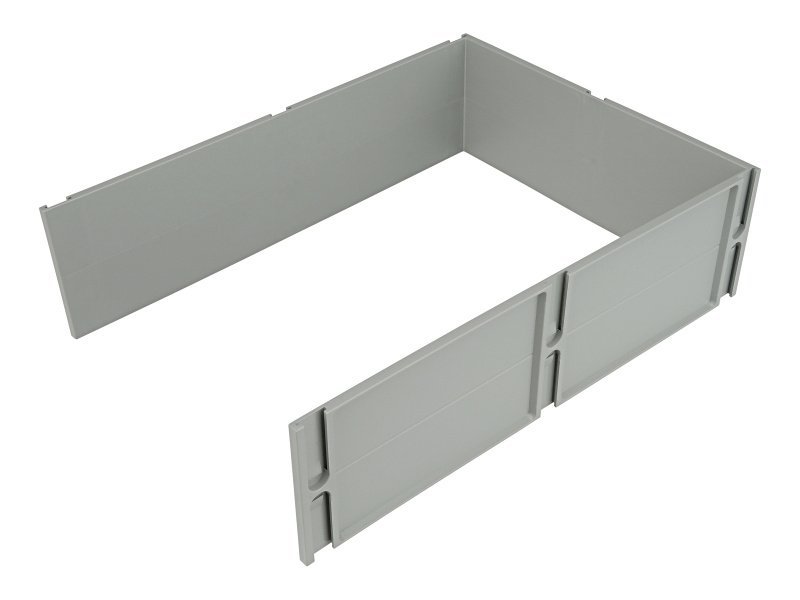

Frame 2623 HO

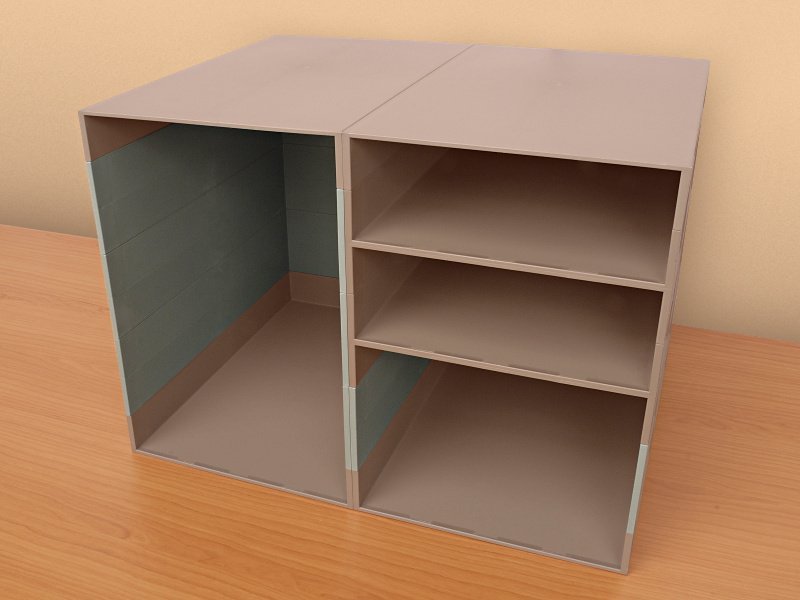

The HO framework is used to create the basic structure of an assembly. The part serves to increase the distance between the shelves. By inserting one HO Frame between two U Frames, you create space for drawer 2603 (Drawer A4 deep). By inserting additional HO Frames between two U Frames, you get space for storing higher objects (organizers, bottles, containers).
- the frame has a thin sidewall and is designed for regular use in the office or workplace
- can be combined with standard U/H Frames as well as robust UI/IU/HI Frames (with limitation, see next paragraph)
- You can wind the HO frame into the inner parts of all assemblies
- you can also use the part in the end walls of assemblies, but only in those assemblies that do not have robust frames on the edges
- standard and robust frames cannot be combined on the edges of assemblies
- frames are connected to each other with connectors 2631 or 2632 (the choice of connectors depends on your intention - we will use connector 2631 on the walls that will be inside the assembly and connector 2632 on the outer walls of the assembly
- the black version is made from recycled material

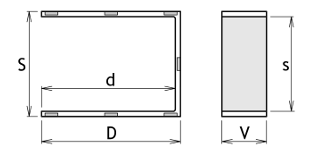

Technical parameters
Dimension D
322 mm
Dimension S
242 mm
Dimension V
88 mm
Dimension d
316 mm
Dimension s
230 mm
Warranty (years)
2
Manufacturer
You can buy more
Similar products
Information / documents
We present to you a new adaptable system for offices, warehouses, archives and other workplaces. This is a kit from which you can easily build a custom cabinet with various drawers and shelves. You will save money with the VariBox system, because it offers an excellent ratio of price and storage volume.
The VariBox system offers the user options:
- build cabinets for documents, material and work tools
- assemble different blocks of shelves and drawers
- and adapt the layout of the workplace according to your own needs and in accordance with the 5S methodology
 |
 |
|
| Workbench | Office cabinet |
VariBoxes can be used in offices, warehouses, archives, workshops and shops.
 |
 |
|
| Carriage | Warehouse |
In our offer you will also find assembly trolleys assembled from VariBoxes. The applicability of the system is thus not limited to a fixed location. The trolley is a solution for everyone who needs to have their tools with them at all times.
Assembly bearing capacity
The assemblies are self-supporting, so they do not require any auxiliary construction. The components of the kit are also designed for long-term high loads, which arise, for example, during the storage of steel components.
System adaptability
The system was designed with an emphasis on high adaptability and variability. The individual parts are easy to connect together and offer an endless number of combinations when creating assemblies. However, it is necessary to remember the golden rule of measure twice, cut once. Parts that have already been connected cannot be disassembled without damage.
The components of the kit can be divided into two groups according to their purpose
- structural elements
- and elements for content.
 |
 |
|
| Builder | Builder |
Construction elements
Structural elements are used to create the basic structure of an assembly. The basis of all assemblies are frames connected to each other by connectors.
 |
 |
|
| Assembling reports 1 | Assembly reports 2 |
 |
 |
|
| Example construction | Example construction |
Frames exist in two versions:
- The basic variant has a thin side wall and is intended for normal use in the office and workplace (office supplies and common work tools).
- Robust version has a reinforced side wall and is used in warehouses and archives for storing heavier objects (screws, tools, archives).
 |
 |
|
| Conjunctions | Conjunctions |
Couplings are intended for connecting frames into a whole.
- Flat shaped connectors are used to connect standard and heavy-duty frames into assemblies.
Elements for content
Content elements help the user organize and manage documents, drawings, records, and other materials.
Drawers
The drawers exist in three different designs. You can choose the size that best suits your needs. The size of the A4 drawers is adapted to enable the smooth handling of A4-sized documents.
 |
 |
|
| Drawers | Drawers |
Binder
The binder is intended for storing documents, forms, prospectuses or drawings. Its size is again determined by the size of the A4 format.
 |
 |
|
| Free Binder | Binder and usage |
Counter
With the help of partitions, the user can easily divide the interior space of the files and drawers into smaller parts. Partitions facilitate the overview and division of documents into groups. .=С
 |
 |
|
| Binder dividers | Partitions in drawers |
