Plastic bed of CNC tool VDI 50
Code: 2075 VDI 50
Plastic bed for CNC tools VDI 50. The main benefit is clarity, order and cleanliness in the workplace. You can create any combination of individual elements. The elements are connected using a full description and parameters
Product description

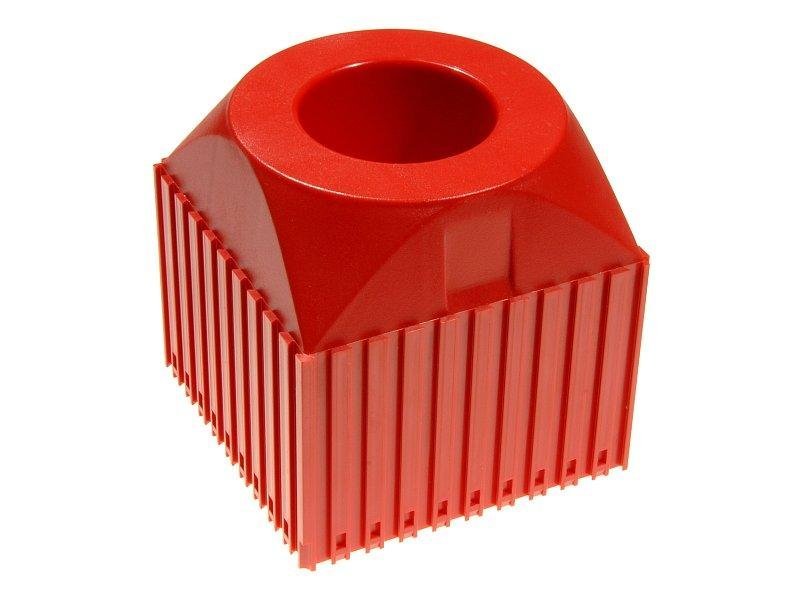

Plastic bed of CNC tool VDI 50
Plastic bed for CNC tools VDI 50. The main benefit is clarity, order and cleanliness in the workplace. You can create any combination of individual elements. The elements are connected using a dovetail joint. Choice of red RAL 3020 or blue RAL 5015.
Technical parameters
Dimension D
102 mm
Dimension S
102 mm
Dimension V
102 mm
Dimension d
50.4 mm
Dimension in
70 mm
Dimension h
94 mm
Number of cavities
1
Warranty (years)
2
Manufacturer
You can buy more
Similar products
Information / documents

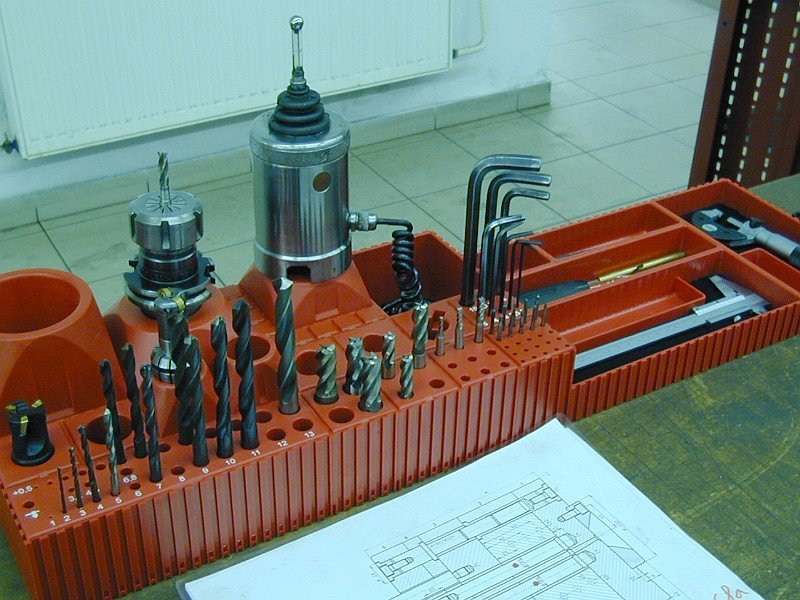

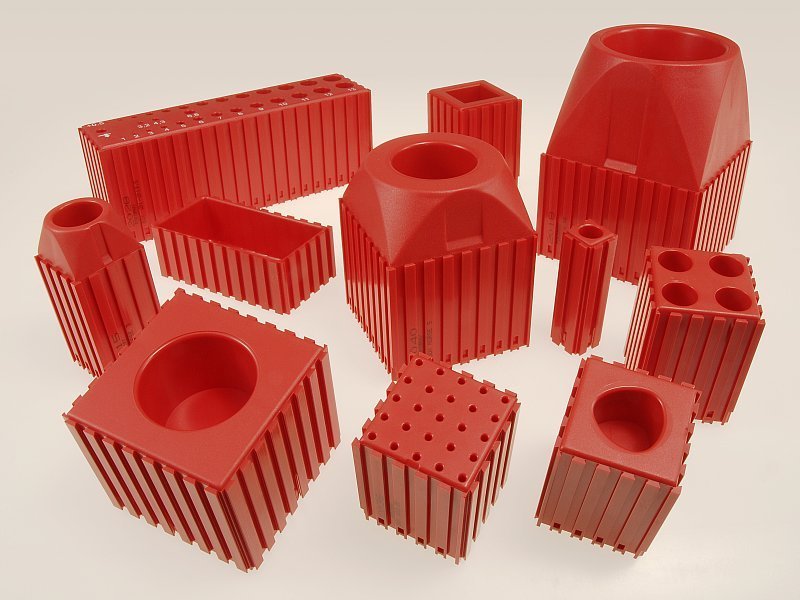

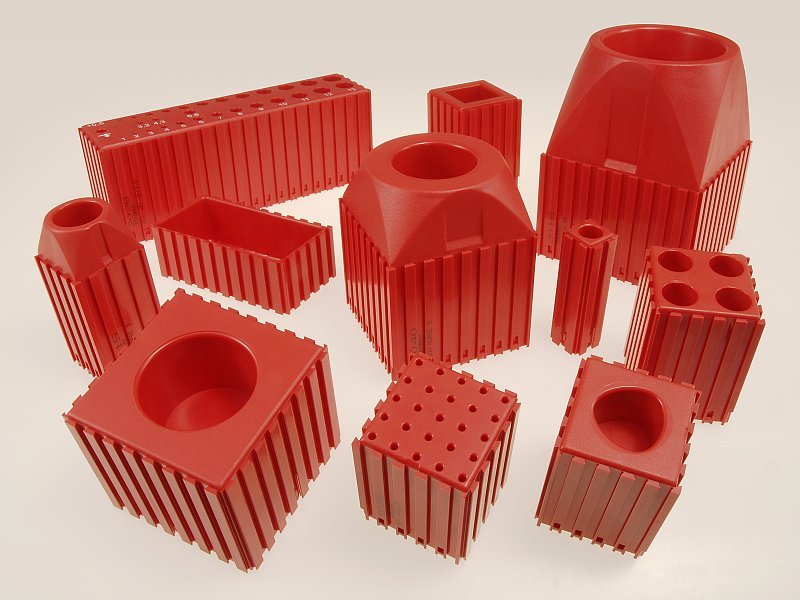

The building block system of boxes is used for the orderly and clear storage of tools at workplaces and in warehouses.
 |
 |
|
| Sample 1 | Sample 2 |
Supported clamping systems
- cylindrical shank
- MORSE cones
- ISO-SK cones
- ABS and ABS-N
- HSK, KM, WDX, UTS
- CAPTO
- VDI clamps
Special boxes
The system includes special components for:- turning knives
- collets
- drill sets
- threads
- keys for IMBUS screws
- electrode holders

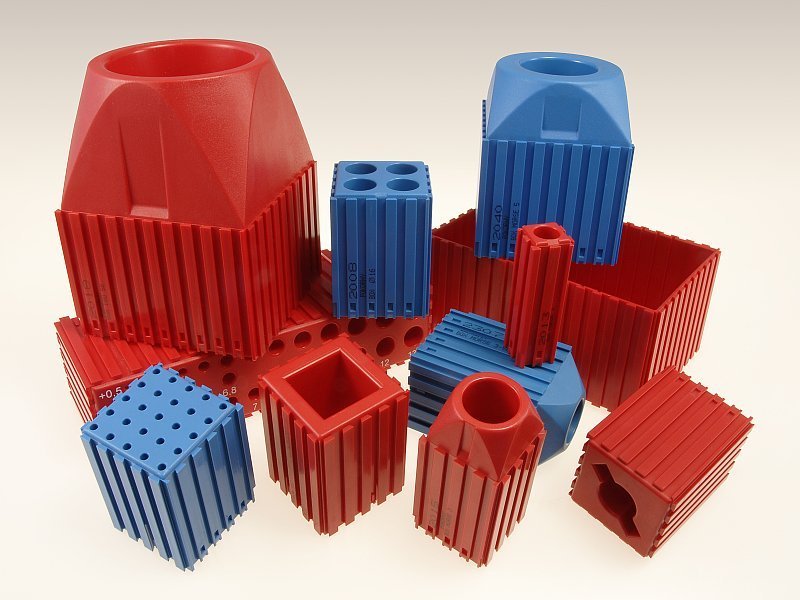

The boxes are made of ABS material in two colors, red (RAL 3020) and blue (RAL 5015). You can find a detailed description of individual parts in the online catalog.
Building block system
 |
 |
|

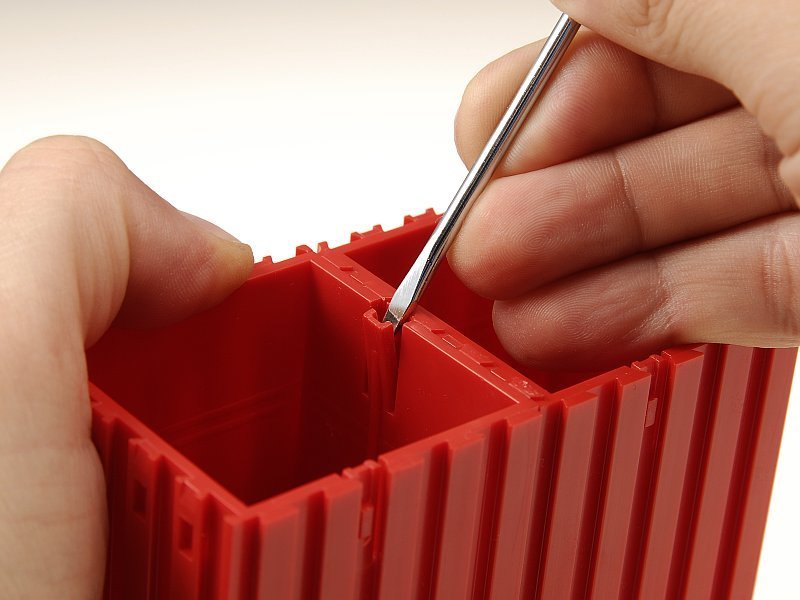

The boxes are designed as a highly variable workshop kit. They are connected using a dovetail groove in any assembly. A fuse is used to prevent the assembly from being disassembled. If you need to disassemble the assembly again, the fuse must first be released for the individual parts.
 |
 |
|
| Dovegrooving | Flexible fuse |

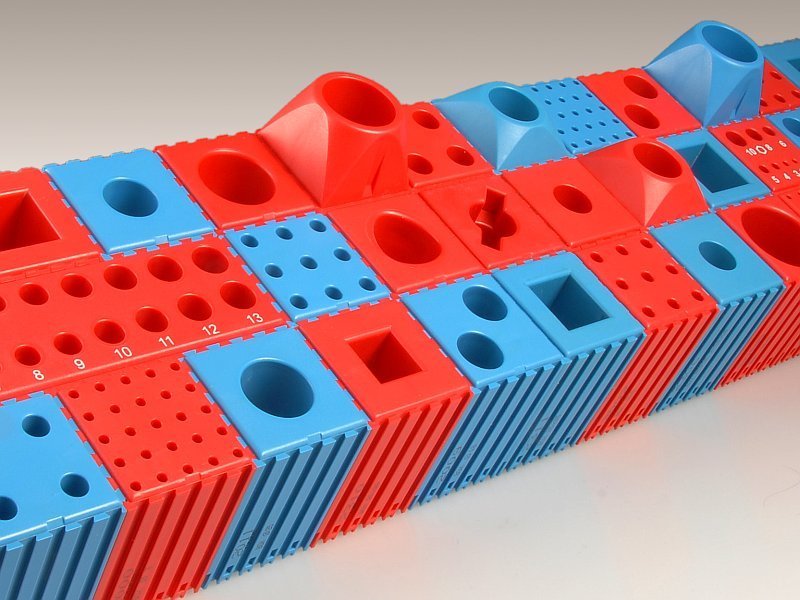

All parts of the kit can be combined not only with each other, but also with boxes, panels and expansion elements.
When creating reports, follow the instructions. It is especially important to maintain the correct orientation of the kit parts during assembly. Incorrect orientation will make other parts impossible to connect.
You can download the instructions here!
Special Components

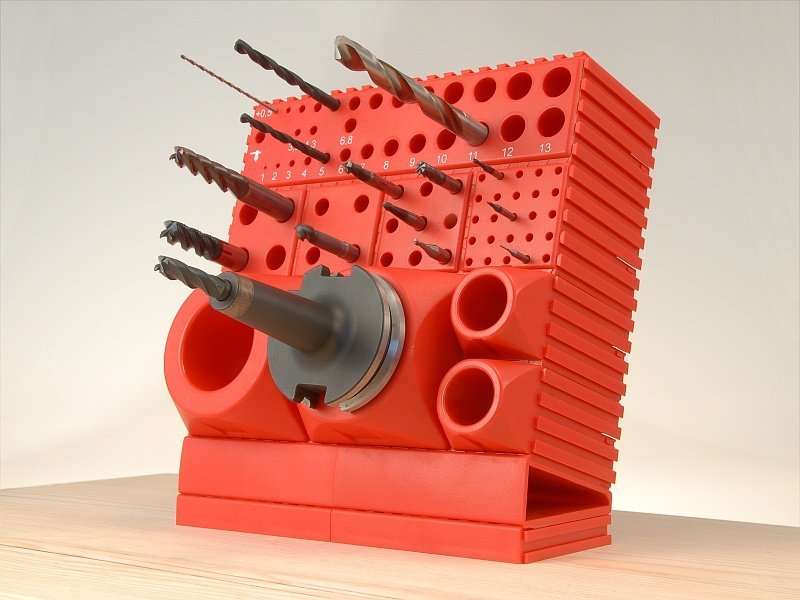

Among the components of the kit you will find special boxes for drill sets and boxes for storing IMBUS keys or an electrode holder.
 |
 |
|
| For drill sets | For IMBUS keys |
In the boxes for drills, the diameters of the storage cavities are graduated in 0.1mm increments and have labels. The description speeds up the finding of the necessary drill, and the grading helps to correctly place the drill back in its proper place.
There are two simple rules to follow when creating reports. This will prevent difficulties and avoid a bad experience.
Users without previous experience are advised to take stock of the overall arrangement of the assembly on squared paper before starting work. This can be especially useful when combining parts with different join modules.
1) Consensual filming
 |
 |
|
| 1. Messy boxes | 2. Correctly shot boxes |
On each box you will find four different corners. Only one of them has an arrow shape and is called a positioning corner.
First rotate each element of the system correctly before connecting it to the assembly. The positioning corner should point to the lower (or closer) left corner of the resulting assembly (see Fig. 2).
2) Correct connection order
 |
 |
|
| 3. Connection order | 4. The resulting assembly |
When creating an assembly, always first connect the individual boxes to the whole in the crosswise direction from left to right (direction 1). If the row is wide enough, you can connect other parts in the longitudinal direction from front to back (or bottom to top, direction 2).
Following the correct connection order means that you start at the near left (or lower left) corner of the assembly and end at the far right (upper right) corner of the assembly.
jak-na-boxy-cz.pdf (1.11 MB) - Instructions for connecting boxes for printing
