Switch cabinet REV 22
Switch cabinet REV 22 - 1
Switch cabinet REV 22 - 2

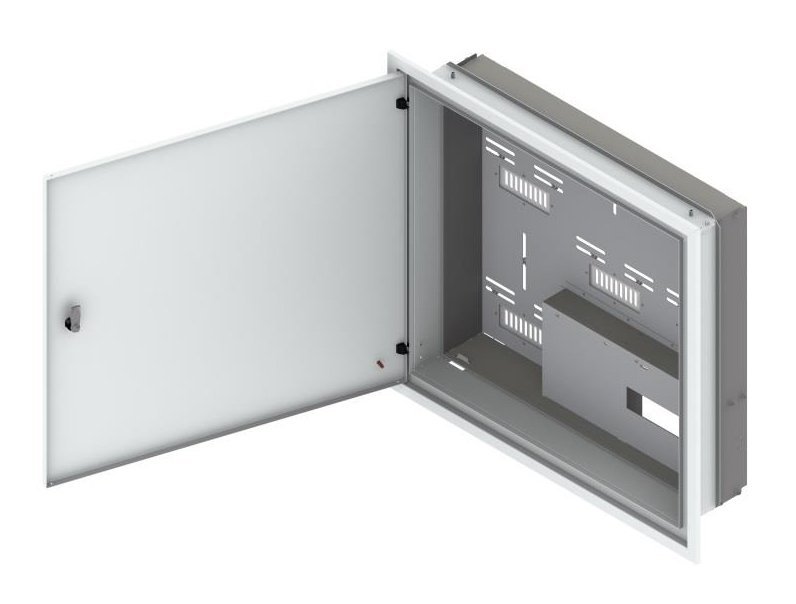

Switch cabinet REV 22

Code: REV22 + REV22.001-02

Rev22 switchboard - for 2 separate two-tariff measurements (day, night). Steel sheet meter switchboards of the REV series are used full description and parameters

On order, delivery time 2 - 4 weeks. It may change depending on the manufacturer's capacity.

448.78 Eur 543.02 Eur with VAT

Quantity

Description and technical parameters

Switch cabinet REV 22

Rev22 switchboard - for 2 separate two-tariff measurements (day, night). Steel sheet meter switchboards of the REV series are used to install single- and three-phase electricity meters with a 16A/B main circuit breaker and a 2A single-phase circuit breaker for HDO switching and are intended for installation in outdoor pillars and solid walls. They are characterized by durable surface treatment, high-quality processing and easy and quick assembly. The cabinet is delivered empty, the installation is individual as needed.

  • rev22 series sheet steel meter switchboard
  • built-in + frame and door
  • frame and door galvanized sheet 1 mm
  • quality hinges and closures
  • powder coating with a structured surface
  • color light gray RAL 7035
  • on request, production from 1 mm stainless steel sheet
  • closing on a standard square loop (all available types on request)
  • mounting tub galvanized sheet 1 mm
  • output terminals for wire cross section 10 mm2
  • use for 2 separate two-tariff measurements (day, night)
  • intended for ČEZ / EON
  • rated values ​​3x400/230V, 50 Hz, max. value of main circuit breaker 63A
  • maximum internal power loss 95W
  • opening for walling 675 x 725 mm
  • the cabinet is delivered empty, the equipment is individual as needed

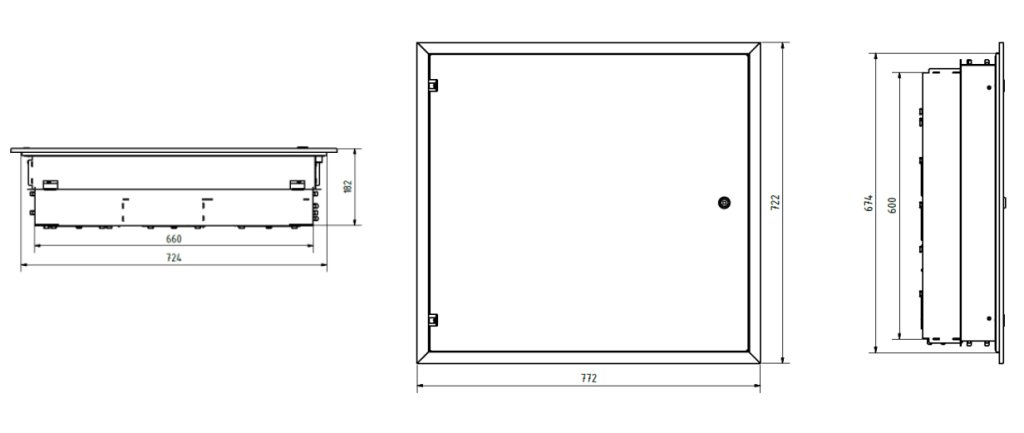

Height: 722 mm
Width: 772 mm
Depth: 183 mm
Rated frequency: 50 ... 60 Hz
Cover: IP43 (IP54 with snap-on or glued gasket)
Mechanical durability: IK10
Protection class: I
Certification: ČSN EN 62208, Test Report No.: 305512-01/01 dated 27.02.2014
Premises: outdoor
Warranty (years): 2
