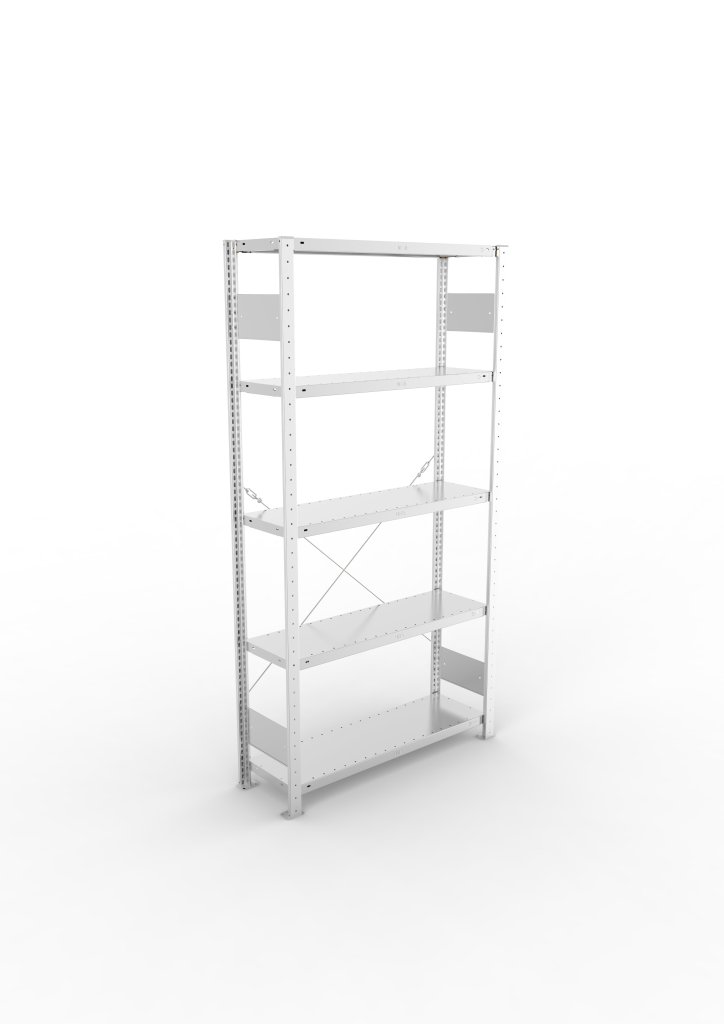

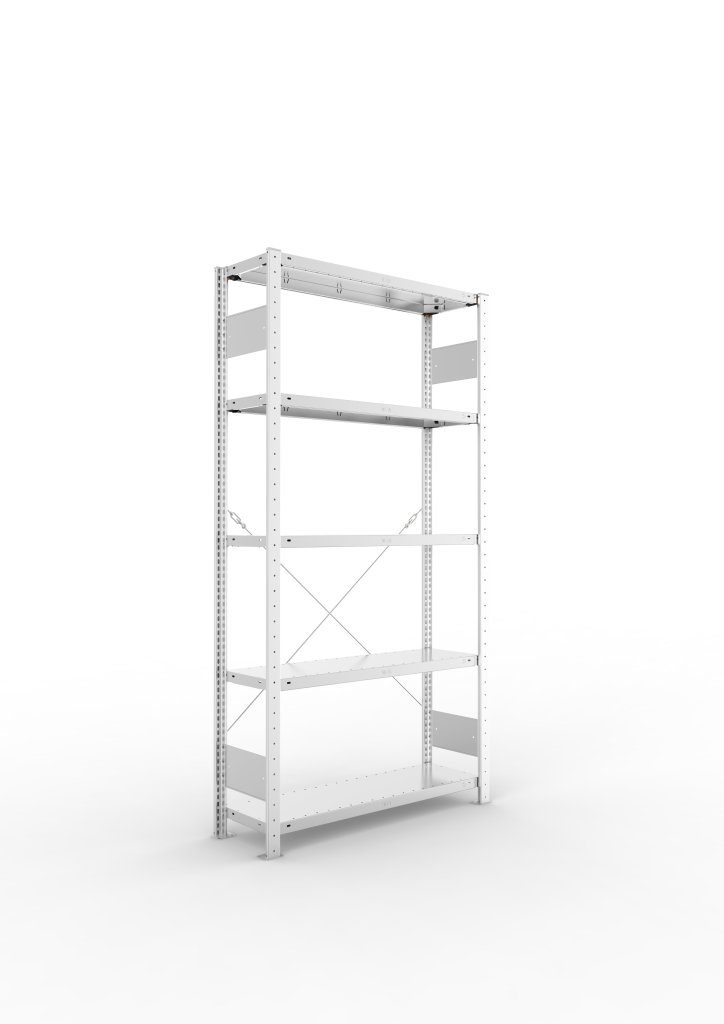

Basic Shelf Unit Clip S3, galvanized, depth 300 mm (3 models)
Code: 260199
Basic CLIP shelving units, galvanized finish, 5 shelves, height 2000 mm, width 1000 mm, depth 300 mm. Boltless design for easy assembly. Can be extended with add‑on units to create continuous runs. full description and parameters
Product description
Basic Shelf Unit S3 CLIP, galvanized, type 260199
Basic CLIP shelving units, galvanized finish, 5 shelves, height 2000 mm, width 1000 mm, depth 300 mm. Boltless design for easy assembly. Can be extended with add‑on units to create continuous runs. Each basic unit includes a cross brace. Shelf load capacity 150 kg.
- basic shelf units can be used independently
- disassembled S3 plug‑in frame
- frame assembly by rigid connection of uprights and side braces
- quick assembly and reconfiguration without tools
- plug‑in system requiring minimal installation effort
- shelves are height‑adjustable in a 25 mm grid
- shelf load capacity: 150 kg
- upright load capacity: 1100 kg
- load capacities apply to evenly distributed loads
- listed dimensions refer to shelf size; actual rack width is approx. 56 mm greater and depth approx. 36 mm greater
- additional shelves and accessories available
- suitable for warehouses, workshops, shops, offices, etc.
- shelves are prepared for system accessories such as dividers and wire partition grids
Technical parameters
Total height
2000 mm
Width
1000 mm
Depth
300 mm
Shelf capacity
150 kg
Column load capacity
1100 kg
Number of shelves
5
Mass
24.76 kg
Warranty (years)
5
Manufacturer
Information / documents
Before you order the shelf:
- please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
- an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
- this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
- when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well
Documents for download:
- CLIP + FIX Declaration of Conformity
- META shelf catalog
- META CLIP assembly instructions
- CLIP accessory assembly instructions
- META COMPACT assembly instructions
- META CLIP S3 assembly instructions
- META FIX assembly instructions
- META Speed-Rack assembly instructions
- META Mini-Rack assembly instructions
- ATLAS, Multistrong M+L assembly instructions
- META Multipal assembly instructions
- Multipal accessories assembly instructions
- META Multistrong H assembly instructions
- META Reifenregal assembly instructions
- load capacities of META Fix shelves
