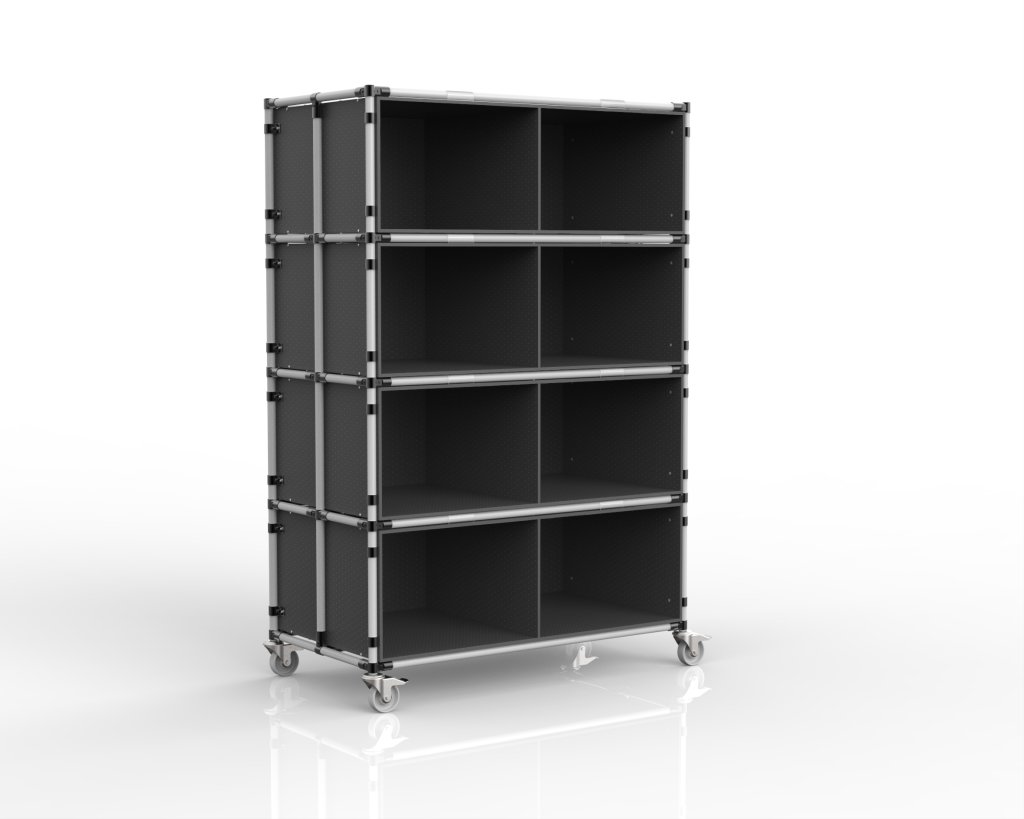

Compartment trolley with 8 PP board inserts

Modular tube trolley for storing and transporting materials in 8 PP board compartments. Dimensions (h × w × d): 1 978 × 1 306 × 700 mm. Total load capacity with an evenly distributed load: 120 kg.

• modular tube system
• rigid inserts (compartments) made from PP board
• single-sided design with 8 compartments
• 4 swivel castors with a diameter of 100 mm
• height of each compartment: 400 mm, width: 605 mm
• load capacity per compartment with an evenly distributed load: 15 kg
• total load capacity with an evenly distributed load: 120 kg
• trolley dimensions (h × w × d): 1 978 × 1 306 × 700 mm

Custom solution. We adapt the trolley dimensions and compartment layout to the materials being transported and the space available. The design takes account of the size and shape of the parts, how they are loaded and removed, and the handling requirements within your facility. The colour can also be selected to suit the workstation requirements.

The compartment trolley is suitable for organised storage and safe transport of materials in production facilities and warehouses. It can be used, for example, to supply workstations or move parts between individual production operations.

The storage area consists of separate inserts (compartments) made from PP board or Akyboard. Storing parts separately limits contact between them and helps prevent scratches and other damage during handling and transport. Operators also have a clear overview of the stored materials. All eight compartments are accessed from one side of the trolley.

The compartments are arranged on four levels, making use of the trolley’s height. Four swivel castors with a diameter of 100 mm make it easier to move between workstations and handle materials when supplying production.

FAQ

How do you choose the right compartment layout?
We start with the size and shape of the parts being transported and the way they are stored. We then design the dimensions and layout of the individual compartments. We also consider the required number of storage spaces and sufficient room for convenient loading and removal of materials.

Can the trolley be modified if the transported materials change?
We assess the modification options based on the existing frame and the requirements of the new materials. We check whether the dimensions of the trolley and the existing compartments are suitable and propose the necessary changes.

How can I get a custom compartment trolley design?
Contact our experts via the enquiry form, by phone or by email. They will discuss your operational requirements with you and prepare a trolley design, including a 3D visualisation, free of charge.

Color variants	ESD variant	Stainless steel variant
1 mm thick steel tube (LP-1100) or 2 mm (LP-1200)	antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK)	0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110)

Black variant	Nickel variant	Silver variant
metal clutches are always available in three variants - black, silver and nickel
