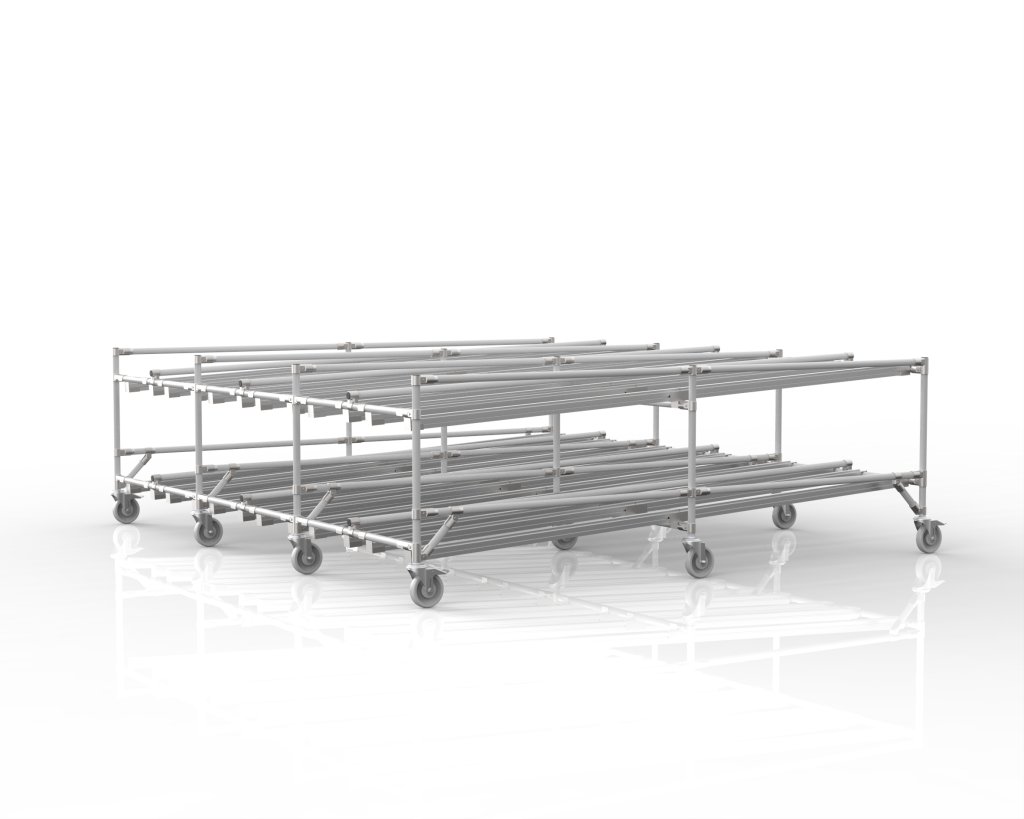

ESD gravity flow rack for higher loads

Code: 26021701

The ESD gravity flow rack with two levels of roller tracks provides storage and sequential picking of materials in containers at workstations requiring ESD equipment. Its total load capacity of 960 kg full description and parameters

Made to order, delivery time 2 - 8 weeks.

1 282.35 € (1 551.64 € with VAT)
Technical parameters
Total height
804 mm
Width
2733 mm
Depth
2433 mm
Load capacity per level
480 kg
Total load capacity
960 kg
ESD design
Yes
Warranty (years)
2
Product description

ESD gravity flow rack for higher loads

The ESD gravity flow rack with two levels of roller tracks provides storage and sequential picking of materials in containers at workstations requiring ESD equipment. Its total load capacity of 960 kg makes it suitable for heavier containers or larger stocks of material.

Containers move along the inclined tracks under their own weight towards the picking point, without a motorised drive. Tracks arranged side by side provide multiple picking positions. Heavy-duty ESD swivel castors allow the rack to be moved. Braked castors secure it in the chosen position.

  • version: ESD, 2 levels of roller tracks
  • load capacity per level: 480 kg
  • total load capacity: 960 kg
  • 4 ESD swivel castors with brakes, Ø 125 mm
  • 8 ESD swivel castors without brakes, Ø 125 mm
  • dimensions (H × W × D): 804 × 2 733 × 2 433 mm

Custom solutions: we adapt the rack dimensions and the number and width of the tracks to the containers used and the required stock level. The design takes into account the load on each level, available space and specific ESD requirements.

FAQ

How is the rack load taken into account during design?
We start with the weight of filled containers, their number on each track and their distribution between levels. We assess both the total amount of stored material and how it is distributed within the frame.

How should the number and width of roller tracks be chosen?
We design the track layout according to container dimensions, the number of material types and the required picking positions. We also consider the stock required for individual parts and the space needed for replenishment and operator access.

How can I get a custom rack design?
Contact our specialists using the enquiry form, by phone or by email. They will discuss your operational requirements with you and prepare a rack design tailored to your needs free of charge.



Colour variants ESD version Stainless steel version
steel tube with a wall thickness of 1 mm (LP-1100) or 2 mm (LP-1200) antistatic steel tube with a wall thickness of 1 mm (CP-1100BK) or 2 mm (CP-1200BK) stainless steel tube with a wall thickness of 0.7 mm (ST-1070) or 1.1 mm (ST-1110)



Black version Nickel version Silver version
Metal joints are available in three versions: black, silver and nickel.
