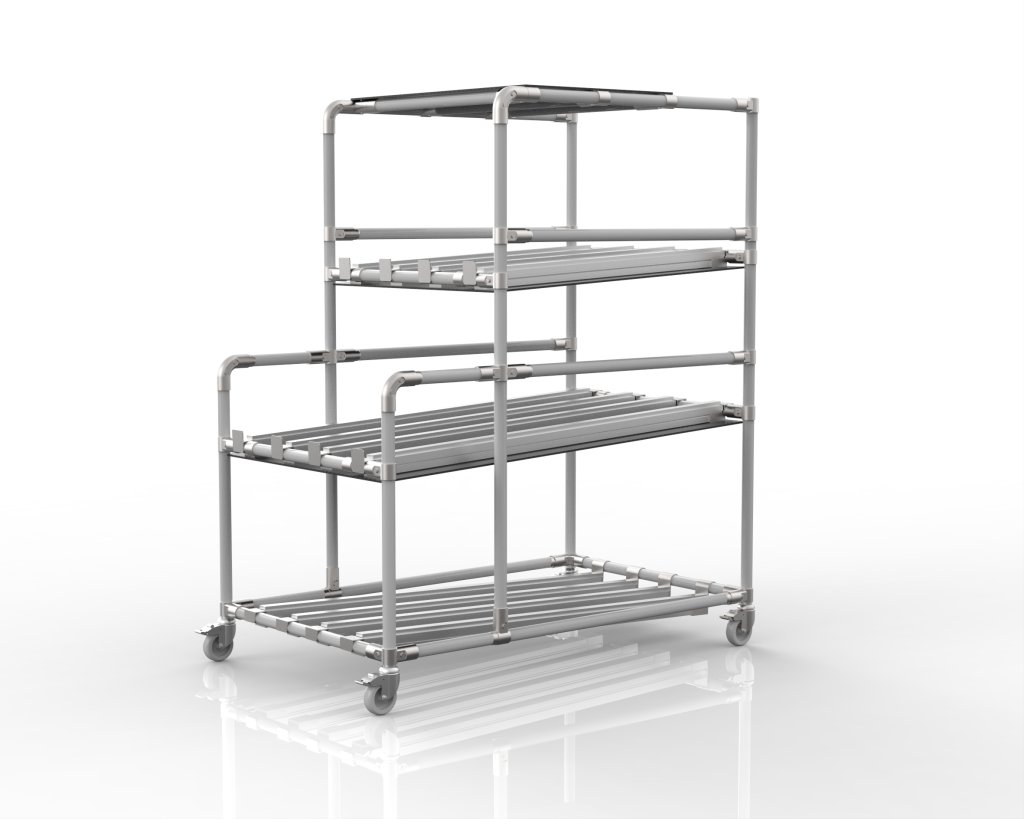

ESD gravity flow rack with plastic top panel

Code: 26011205

This compact gravity flow rack made from a modular tubular system in an ESD version provides storage and sequential picking of materials in containers. Three levels of roller tracks are complemented full description and parameters

Made to order, delivery time 2 - 8 weeks.

386.27 € (467.39 € with VAT)
Technical parameters
Total height
1318 mm
Width
688 mm
Depth
1103 mm
Load capacity per level
50 kg
Total load capacity
150 kg
ESD design
Yes
Warranty (years)
2
Product description

ESD gravity flow rack with plastic top panel

This compact gravity flow rack made from a modular tubular system in an ESD version provides storage and sequential picking of materials in containers. Three levels of roller tracks are complemented by a top ESD plastic panel. The rack is designed for storage and material supply at workstations requiring ESD equipment.

Containers move along the inclined tracks under their own weight towards the picking point, without a motorised drive. Three storage levels make use of the available height, while the 688 mm width allows the rack to fit into narrower supply areas. Swivel castors make it easy to reposition, and the brakes secure it in place.

  • version for ESD applications
  • 3 levels of roller tracks
  • top ESD plastic bubble panel, 4.4 mm thick
  • 4 ESD swivel castors with brakes, Ø 75 mm
  • load capacity: 50 kg per level, 150 kg in total
  • dimensions (H × W × D): 1 318 × 688 × 1 103 mm

Custom solutions: we adapt the rack dimensions, level spacing and track layout to your containers and available space. We take into account the required stock, material weight and the workstation’s specific ESD requirements.

FAQ

How do you choose the right version for a specific ESD workstation?
Our design starts with your operation’s ESD equipment requirements and how the rack will be used. We clarify these requirements with you in advance and take them into account when designing the frame and its components.

What should you consider when placing the rack in a narrow space?
In addition to the rack dimensions, allow space for replenishing containers, picking materials and operator access. If the rack is to be moved regularly, we also consider passageways and handling at the workstation during design.

How can I get a custom rack design?
Contact our specialists using the enquiry form, by phone or by email. They will discuss your operational requirements with you and prepare a rack design tailored to your needs free of charge.



Colour variants ESD version Stainless steel version
steel tube with a wall thickness of 1 mm (LP-1100) or 2 mm (LP-1200) antistatic steel tube with a wall thickness of 1 mm (CP-1100BK) or 2 mm (CP-1200BK) stainless steel tube with a wall thickness of 0.7 mm (ST-1070) or 1.1 mm (ST-1110)



Black version Nickel version Silver version
Metal joints are available in three versions: black, silver and nickel.
