Fixed industrial wheel white with mounting plate (4 models)

Code: 3478UOR100P62

Rigid industrial wheel ø 100 mm, fork made of pressed steel, zinc chromated, swivel bearing with double ball ring and swivel bearing protection, wheel with screw and nut, mounting with plate. Wheel full description and parameters

Product description

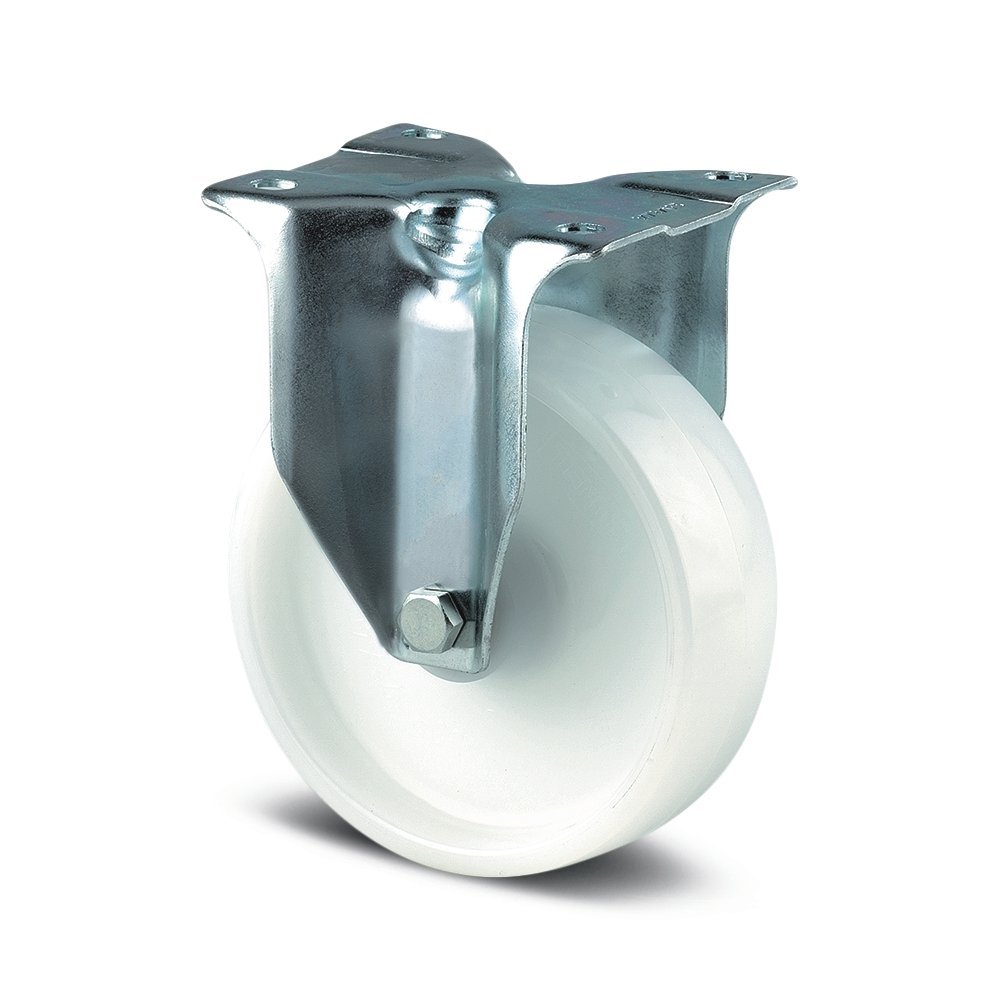

Fixed industrial wheel white ø 100 mm with mounting plate 3478UOR100P62

Rigid industrial wheel ø 100 mm, fork made of pressed steel, zinc chromated, swivel bearing with double ball ring and swivel bearing protection, wheel with screw and nut, mounting with plate. Wheel center made of polyamide, needle bearing.

Polyamide wheel center
temperature resistance -40 °C to 80 °C
plate size 103 x 85 mm
hole spacing 80/77 x 60 mm
hole diameter 9 mm
dynamic load capacity 200 kg
static load capacity 400 kg
wheel diameter 100 mm
tread width 36 mm
tread hardness Shore D75
meets the EN 12532 standard
building height 128 mm

Technical parameters

Carrying capacity

200 kg

Wheel diameter

100 mm

Warranty (years)

7

Manufacturer

All models

Technical parameters

Code

Wheel diameter

Carrying capacity

In stock

Price

You are currently browsing

3478UOR100P62

100 mm

200 kg

No

8.32 Eur

3478UOR125P62

125 mm

250 kg

No

9.16 Eur

3478UOR160P63

160 mm

350 kg

No

18.91 Eur

3478UOR200P63

200 mm

350 kg

No

16.94 Eur
