Instrument wheel black with mounting plate (3 models)
Code: 3640IEP125P63
Instrument wheel, black, ø 200 mm, with mounting plate
Code: 3640IEP200P63
Instrument wheel ø 200 mm, fork made of reinforced sheet metal, blue zinc chromate, rotating head of the wheel with sealed precision ball bearing, center of the wheel with a nut, mounting with a plate full description and parameters
Product description

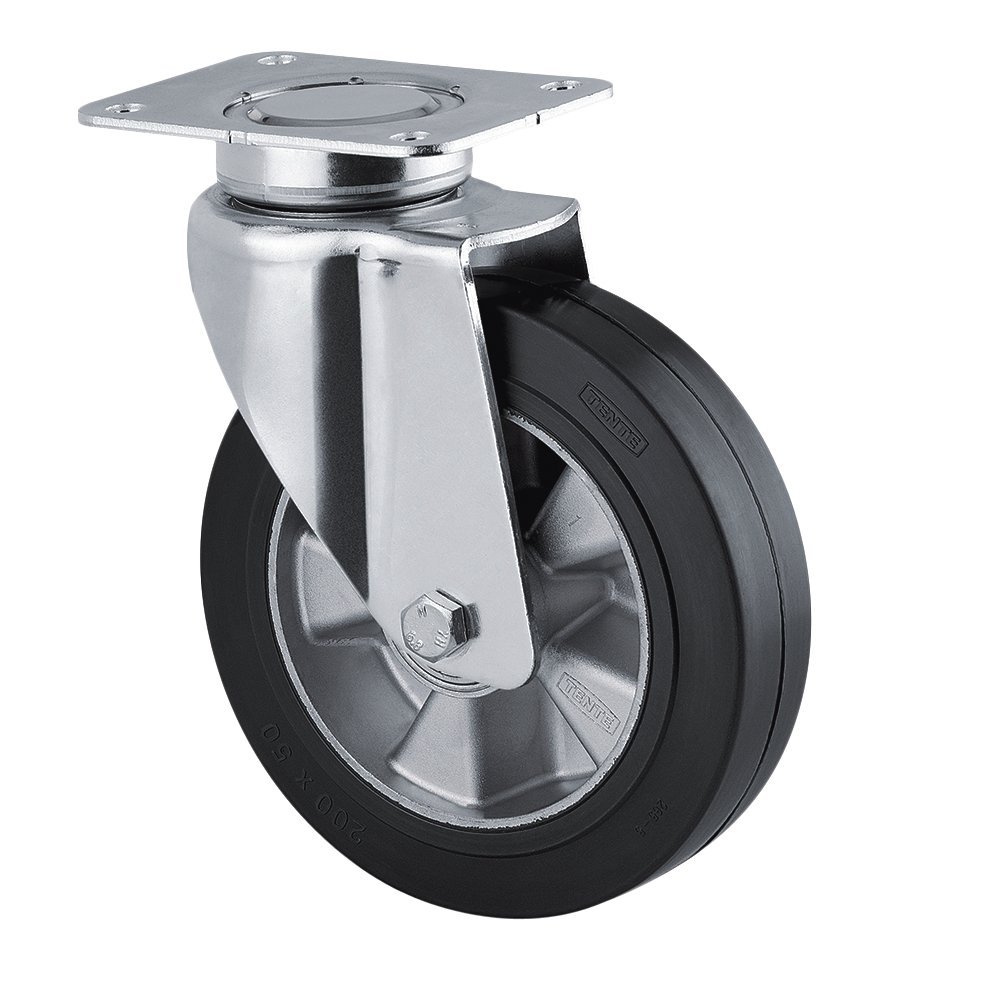

Instrument wheel black ø 200 mm with mounting plate 3640IEP200P63
Instrument wheel ø 200 mm, fork made of reinforced sheet metal, blue zinc chromate, rotating head of the wheel with sealed precision ball bearing, center of the wheel with a nut, mounting with a plate. Wheel center made of aluminum alloy, black elastic vulcanized rubber tread, precision ball bearing.
- aluminum alloy wheel center
- black elastic vulcanized rubber tread
- precision ball bearing
- temperature resistance -20 °C to 85 °C
- plate size 137 x 105 mm
- hole spacing 105 x 80/75 mm
- hole diameter 11 mm
- dynamic load capacity 450 kg
- static load capacity 900 kg
- wheel diameter 200 mm
- tread width 50 mm
- Shore A67 tread hardness
- meets the EN 12532 standard
- building height 250 mm
Technical parameters
Carrying capacity
450 kg
Wheel diameter
200 mm
Bearings
ball
Warranty (years)
7
Manufacturer
All models
Technical parameters
Code
Bearings
Wheel diameter
Carrying capacity
In stock
Price
Similar products
Instrument wheel, black, ø 160 mm, with mounting plate
Code: 3640IEP160P63
