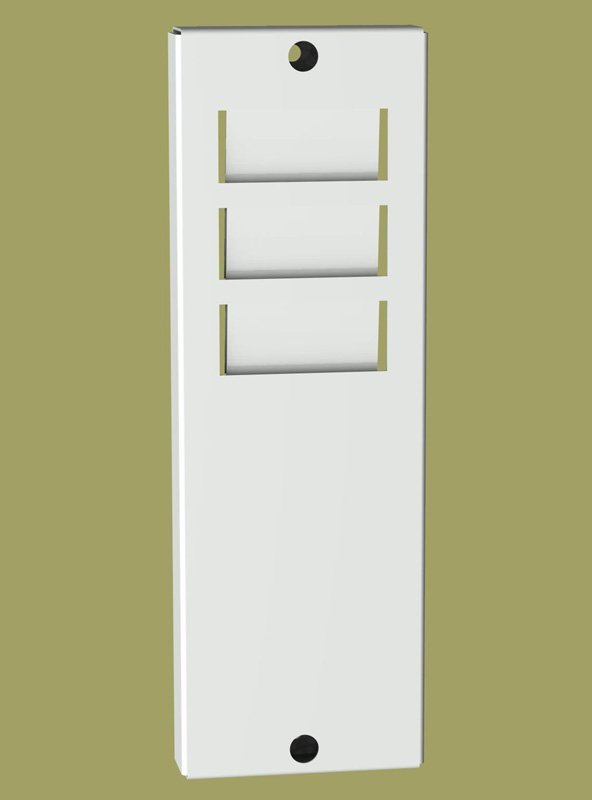

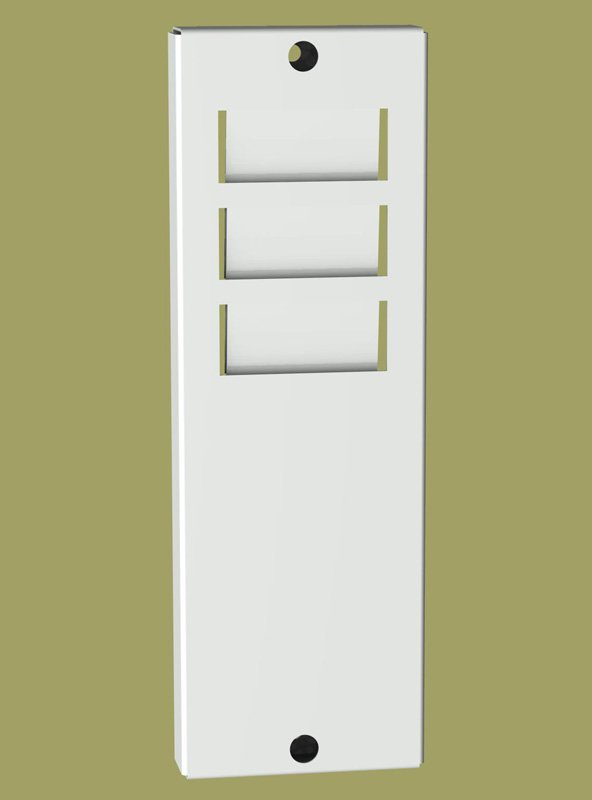

Kanban file for identification cards POR S03A
Code: POR_S03_A
Metal file for scheduling, attendance and identification cards in workshops, entrance halls, etc. Height 277 x width 92 x depth 25 mm. For 3 cards, color light gray. Other colors by agreement for an full description and parameters
Product description
Kanban file for identification cards POR S03A
Metal file for scheduling, attendance and identification cards in workshops, entrance halls, etc. Height 277 x width 92 x depth 25 mm. For 3 cards, color light gray. Other colors by agreement for an additional fee.
- for cards size 150 x 60 mm
- it is possible to make a type for a different card size
- other colors by agreement for an additional fee
Technical parameters
Height
277 mm
Width
92 mm
Depth
25 mm
Warranty (years)
2
Manufacturer
Similar products
Information / documents
Rozměry papíru podle ISO/DIN (v mm):
| Formát | A- | B- | C- | D- | E- |
| 0 | 841 x 1189 | 1000 × 1414 | 917 × 1297 | ||
| 1 | 594 x 841 | 707 × 1000 | 648 × 917 | 545 × 771 | |
| 2 | 420 × 594 | 500 × 707 | 458 × 648 | 385 × 545 | |
| 3 | 297 × 420 | 353 × 500 | 324 × 458 | 272 × 385 | 400 × 560 |
| 4 | 210 × 297 | 250 × 353 | 229 × 324 | 192 × 272 | 280 × 400 |
| 5 | 148 × 210 | 176 × 250 | 162 × 229 | 136 × 192 | 200 × 280 |
| 6 | 105 × 148 | 125 × 176 | 114 × 162 | 96 × 136 | 140 × 200 |
| 7 | 74 × 105 | 88 × 125 | 81 × 114 | 68 × 96 | |
| 8 | 52 × 74 | 62 × 88 | 57 × 81 | ||
| 9 | 37 × 52 | 44 × 62 | 40 × 57 | ||
| 10 | 26 × 37 | 31 × 44 | 28 × 40 |
Rozměry obálek podle ISO/DIN (v mm):
| Formát | Velikost | Formát obsahu |
| DL | 110 × 220 | 1/3 A4 (dvakrát přehnutá A4) |
| C7/C6 | 81 x 162 | 1/3 A5 (dvakrát přehnutá A5) |
| C6 | 114 × 162 | A6 (dvakrát přehnutá A4) |
| C6/C5 | 114 × 229 | 1/3 A4 (dvakrát přehnutá A4) |
| C5 | 162 × 229 | A5 (jednou přehnutá A4) |
| C4 | 229 × 324 | A4 |
| C3 | 324 × 458 | A3 |
| B6 | 125 × 176 | obálka formátu C6 |
| B5 | 176 × 250 | obálka formátu C5 |
| B4 | 250 × 353 | obálka formátu C4 |
| E4 | 280 × 400 | B4 |
Formáty používané v USA, Velké Británii, Kanadě, Mexiku aj.:
-
v těchto a některých dalších zemích se mezinárodní formáty příliš nepoužívají (možná v souvislosti s nepřijetím metrického systému)
- místo toho se formáty popisují přímo svou velikostí v palcích nebo standardním označením podle následující tabulky
| Název | Velikost v palcích (in) | Velikost v mm (mm) | Poměr stran |
| Quarto | 10 × 8 | 254,0 × 203,2 | 1,25 |
| Foolscap | 13 × 8 | 330,2 × 203,2 | 1,63 |
| Letter | 8½ × 11 | 215,9 × 279,4 | 1,29 |
| -- | 8 × 10½ | 203,2 × 266,7 | 1,31 |
| Legal | 8½ × 14 | 215,9 × 355,6 | 1,65 |
| Ledger / Tabloid | 11 × 17 | 279,4 × 431,8 | 1,55 |
| Executive | 7¼ × 10½ | 184,15 × 266,7 | 1,45 |
| Post | 15½ × 19¼ | 393,7 × 488,95 | 1,24 |
| Crown | 15 × 20 | 381,0 × 508,0 | 1,33 |
| Large post | 16½ × 21 | 419,1 × 533,4 | 1,28 |
| Demy | 17½ × 22½ | 444,5 × 571,5 | 1,29 |
| Medium | 18 × 23 | 457,2 × 584,2 | 1,28 |
| Royal | 20 × 25 | 508,0 × 635,0 | 1,25 |
| Elephant | 23 × 28 | 584,2 × 711,2 | 1,22 |
| Double Demy | 23½ × 35 | 596,9 × 889,0 | 1,49 |
| Quad Demy | 35 × 45 | 889,0 × 1143,0 | 1,29 |
| STMT | 5½ x 8½ | 139,7 × 215,9 | 1,55 |
| A | 8½ × 11 | 215,9 × 279,4 | 1,29 |
| B | 11 × 17 | 279,4 × 431,8 | 1,55 |
| C | 17 × 22 | 431,8 × 558,8 | 1,29 |
| D | 22 × 34 | 558,8 × 863,6 | 1,55 |
| E | 34 × 44 | 863,6 × 1117,6 | 1,29 |
Do you have further questions?
Do you have a question about this product? Write to us and we will be happy to answer you.
Colors, shades, upholstery
KOVOS color swatch - category A and B
- combinations of these colors with a body in RAL 7035 color (category A) are free of charge, others see the table below
light gray RAL 7035 (A)
yellow RAL 1023 (B)
red RAL 3000 (B)
blue RAL 5012 (B)
green RAL 6024 (B)
dark gray RAL 7031 (B)
gray / front surfaces blue
KOVOS color swatch - category C
- surcharges see table below
RAL 1001
RAL 2008
RAL 3003
RAL 5003
RAL 5005
RAL 5010
RAL 5018
green RAL 6001
RAL 7032
RAL 8014
RAL 9003
KOVOS color swatch - category D
- surcharges see table below
RAL 1003
RAL 1007
RAL 1013
RAL 1015
RAL 1016
RAL 1017
RAL 1018
RAL 1021
RAL 1028
RAL 1033
RAL 2000
RAL 2002
RAL 2004
RAL 2009
RAL 2011
RAL 2012
RAL 3001
RAL 3002
RAL 3004
RAL 3005
RAL 3011
RAL 3020
RAL 4003
RAL 4006
RAL 4008
RAL 5002
RAL 5007
RAL 5008
RAL 5009
RAL 5011
RAL 5013
RAL 5014
RAL 5015
RAL 5017
RAL 5023
RAL 5024
RAL 6005
RAL 6017
RAL 6018
RAL 6019
RAL 6029
RAL 6033
RAL 6034
RAL 7001
RAL 7005
RAL 7012
RAL 7015
RAL 7016
RAL 7034
RAL 7036
RAL 7037
RAL 7038
RAL 7040
RAL 7043
RAL 7044
RAL 8004
RAL 8011
RAL 8016
RAL 8017
RAL 8019
RAL 9001
RAL 9002
RAL 9004
RAL 9005
RAL 9010
RAL 9011
RAL 9018
KOVOS color swatch - category E
- surcharges see table below
KOVOS swatch for laminate and HPL
Kovos swatch for SBS_X
Surcharges for colors and color combinations
Surface treatment is carried out by the technology of electrostatic application of powder colors on the surface of products pre-treated with Fe phosphate. The colors are fired at a temperature of min. 180 °C approx. 20 min. Using automatic paint application and manual spraying, a uniform color layer is achieved, the thickness of which is on average 50-80 μm.
| Surcharges in % according to the ordered quantity in CZK without VAT | |||||||
| Body / front face combination | from CZK 0 | from 10,000 | from 20,000 | from 50,000 | from 100,000 | from 250,000 | from 500,000 |
| AA + AB | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| AC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| AD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| BA + BB | 10 | 8 | 6 | 3.5 | 1.5 | 1 | 0 |
| BC | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| BD | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CA + CB | 50 | 35 | 16 | 12 | 3.5 | 2.5 | 1.5 |
| CC | 80 | 45 | 20 | 15 | 6 | 4 | 3 |
| CD | 100 | 50 | 25 | 20 | 8 | 6 | 5 |
| DA + DB | 80 | 45 |
20 | 15 |
6 |
4 |
3 |
| DC + DD |
100 | 50 | 25 | 20 | 8 | 6 | 5 |
| Category E | individual surcharge | ||||||
- if you are interested in a color combination with an additional charge, please contact us for a price quote
- phone: 224 942 663, 733 710 443 or free 800 888 868, e-mail: info@kovovynabytek.cz
