MULTISTRONG M cantilever rack - one-sided extension 75104

Name: MULTISTRONG M cantilever rack - one-sided extension 75104
Brand: META
SKU: 75104
Price: 264.37 eur
Availability: PreOrder

Code: 75104

Medium load rack for standing and lying long material, height 2500, width 1300, depth 500 mm, number of arms 4 per post, arm load capacity 430 kg, one-sided web load capacity 2200 kg. Color RAL 5010 full description and parameters

Product description

MULTISTRONG M cantilever rack - one-sided extension 75104

for storage of board and board material
hot cylindrical profiles IPE 140 - perforated on both sides for possible future conversion from single-sided to double-sided
height-adjustable arms in 50 mm increments
protection against falling out of the arms secures the arms against unhooking during storage and unloading of goods
perfect security worked out to the last detail
the specified depth is the depth of the arm, the actual depth of the rack is approx. 230 mm greater

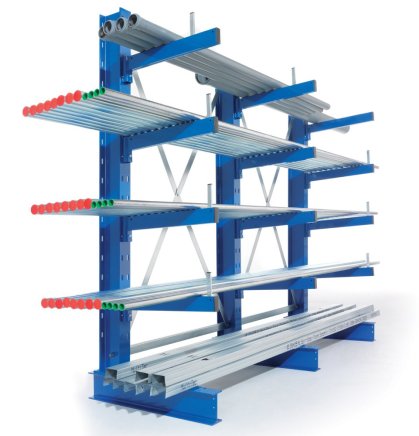

The picture shows the base rack + extension rack.

Technical parameters

Total height

2500 mm

Width

1300 mm

Depth

500 mm

The bearing capacity of the web is one-sided

2200 kg

Carrying capacity of the arm

430 kg

Number of arms

Number of webs

Warranty (years)

Manufacturer

All models

Technical parameters

Code

Number of webs

Number of arms

Carrying capacity of the arm

The bearing capacity of the web is one-sided

Total height

Width

Depth

In stock

Price

75067

430 kg

2340 kg

2000 mm

1000 mm

500 mm

197.21 Eur

To the basket

75071

250 kg

1650 kg

2000 mm

1000 mm

800 mm

226.61 Eur

To the basket

75075

430 kg

2200 kg

2500 mm

1000 mm

500 mm

215.56 Eur

To the basket

75079

250 kg

1500 kg

2500 mm

1000 mm

800 mm

245.02 Eur

To the basket

75083

430 kg

2000 kg

3000 mm

1000 mm

500 mm

251.24 Eur

To the basket

75087

250 kg

1250 kg

3000 mm

1000 mm

800 mm

285.48 Eur

To the basket

75091

430 kg

2340 kg

2000 mm

1300 mm

500 mm

Yes

200.14 Eur

To the basket

75095

250 kg

1650 kg

2000 mm

1300 mm

800 mm

229.60 Eur

To the basket

You are currently browsing

75104

430 kg

2200 kg

2500 mm

1300 mm

500 mm

218.49 Eur

To the basket

75108

250 kg

1500 kg

2500 mm

1300 mm

800 mm

247.95 Eur

To the basket

75112

430 kg

2000 kg

3000 mm

1300 mm

500 mm

254.16 Eur

To the basket

75116

250 kg

1250 kg

3000 mm

1300 mm

800 mm

288.47 Eur

To the basket

You can buy more

Additional arm, height 70 mm - 74895 Code: 74895

16.31 Eur without VAT (19.74 Eur with VAT)

Buy

Additional arm, height 70 mm - 74895 Code: 74895

Additional arm complete with cover to be purchased additionally for shelves. Height 70 mm, depth 500 mm, load 430 kg. Color RAL 5010 blue.

MULTISTRONG M cantilever rack - single-sided base 75103 Code: 75103

409.12 Eur without VAT (495.04 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - single-sided base 75103 Code: 75103

Anti-rolling mandrel 74911 Code: 74911

1.31 Eur without VAT (1.59 Eur with VAT)

Buy

Anti-rolling mandrel 74911 Code: 74911

Stop against rolling away 20 x 10 x 170 complete galvanized. Plug-in, usable height 100.

Anti-rolling mandrel 74912 Code: 74912

1.97 Eur without VAT (2.38 Eur with VAT)

Buy

Anti-rolling mandrel 74912 Code: 74912

Stop against rolling 20 x 10 x 270 complete zinc. Plug-in, usable height 200.

Similar products

MULTISTRONG M cantilever rack - one-sided extension (12 models) Code: 75067

197.21 Eur without VAT (238.62 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension (12 models) Code: 75067

Medium load racks for standing and lying long material. Height 2000 - 3000 mm, width 1000 or 1300 mm, depth 500 or 800 mm, number of arms 4 - 5 per post, arm load capacity 250 or 430 kg, one-sided web load capacity 1250 - 2340 kg, rack weights between 50 - 202 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75071 Code: 75071

226.61 Eur without VAT (274.20 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75071 Code: 75071

Medium load rack for standing and lying long material, height 2000, width 1000, depth 800 mm, number of arms 4 per post, arm load capacity 250 kg, one-sided web load capacity 1650 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75075 Code: 75075

215.56 Eur without VAT (260.83 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75075 Code: 75075

Medium load rack for standing and lying long material, height 2500, width 1000, depth 500 mm, number of arms 4 per post, arm load capacity 430 kg, one-sided web load capacity 2200 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75079 Code: 75079

245.02 Eur without VAT (296.47 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75079 Code: 75079

Medium load rack for standing and lying long material, height 2500, width 1000, depth 800 mm, number of arms 4 per post, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base rakcs.

MULTISTRONG M cantilever rack - one-sided extension 75083 Code: 75083

251.24 Eur without VAT (304.00 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75083 Code: 75083

Medium load rack for standing and lying long material, height 3000, width 1000, depth 500 mm, number of arms 5 per post, arm load capacity 430 kg, one-sided web load capacity 2000 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75087 Code: 75087

285.48 Eur without VAT (345.43 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75087 Code: 75087

Medium load rack for standing and lying long material, height 3000, width 1000, depth 800 mm, number of arms 5 per post, arm load capacity 250 kg, one-sided web load capacity 1250 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75091 Code: 75091

In stock

200.14 Eur without VAT (242.17 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75091 Code: 75091

Medium load rack for standing and lying long material, height 2000, width 1300, depth 500 mm, number of arms 4 per post, arm load capacity 430 kg, one-sided web load capacity 2340 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75095 Code: 75095

229.60 Eur without VAT (277.82 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75095 Code: 75095

Medium load rack for standing and lying long material, height 2000, width 1300, depth 800 mm, number of arms 4 per post, arm load capacity 250 kg, one-sided web load capacity 1650 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75108 Code: 75108

247.95 Eur without VAT (300.02 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75108 Code: 75108

Medium load rack for standing and lying long material, height 2500, width 1300, depth 800 mm, number of arms 4 per post, arm load capacity 250 kg, one-sided web load capacity 1500 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75112 Code: 75112

254.16 Eur without VAT (307.53 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75112 Code: 75112

Medium load rack for standing and lying long material, height 3000, width 1300, depth 500 mm, number of arms 5 per post, arm load capacity 430 kg, one-sided web load capacity 2000 kg. Color RAL 5010 blue. Only one web, serves as an extension of the base racks.

MULTISTRONG M cantilever rack - one-sided extension 75116 Code: 75116

288.47 Eur without VAT (349.05 Eur with VAT)

Buy

MULTISTRONG M cantilever rack - one-sided extension 75116 Code: 75116

Medium load rack for standing and lying long material, height 3000, width 1300, depth 800 mm, number of arms 5 per post, arm load capacity 250 kg, one-sided web load capacity 1250 kg. Color RAL 5010 blue. Only one web, serves as an extension of the basic shelves.

Information / documents

Before you order the shelf:

please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well
