Roller track PL-351M
Code: PL-351M
In stock

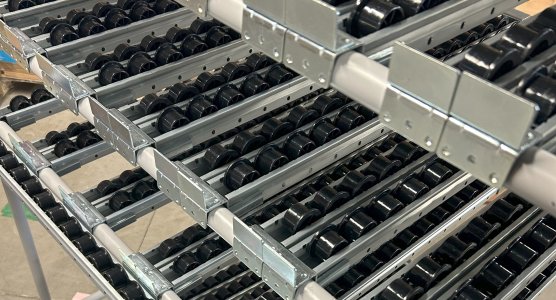

Roller tracks 35 mm – 4000 mm roller rails with Ø27–40 mm rollers
Roller tracks 35 mm are steel roller rails 35 mm wide and 4000 mm long for handling light to medium-weight loads in flow racks, at workstations and in conveyors built from the modular system. Enprag offers the PL-351M, PL-351F and PL-351G tracks with roller diameters of 27, 28 and 40 mm and a pitch of 16.5 or 33 mm, with rollers in grey, white or ESD black and a 2-year warranty. For supplying lines with containers and FIFO picking.
more
35 mm wide roller rails for flow racks and workstations
Roller tracks 35 mm are versatile conveyor rails for efficient handling of light to medium-weight loads. They have a 35 mm wide steel body, a length of 4000 mm and rollers 27–40 mm in diameter on Ø3 mm axles; one rail weighs 3.26–3.55 kg. They are mounted in flow racks and workstations built from the modular system – all widths are listed in the roller tracks category.
Roller tracks PL-351M, PL-351F and PL-351G: which roller diameter and pitch?
The roller tracks differ in roller diameter and pitch. Roller track PL-351M has Ø27 mm rollers at a close 16.5 mm pitch, suited to smaller containers and boxes. Roller track PL-351F has Ø28 mm rollers at a 33 mm pitch. Roller track PL-351G with Ø40 mm rollers at a 33 mm pitch has guide rollers with a higher edge that keep the container on the track.
How are roller rails mounted in gravity flow lanes?
The standard inclination of Enprag roller tracks is 3° and is adjusted to the weight and type of container; the lanes are selected for KLT containers as well as cardboard boxes and ensure FIFO picking. Return lanes for empty containers are placed above or below the picking level. For fixing and side guidance, use grips of roller tracks and guidance for roller tracks.
| Model | Roller diameter | Roller pitch | Roller colours |
|---|---|---|---|
| PL-351M | 27 mm | 16.5 mm | grey, black, ESD black |
| PL-351F | 28 mm | 33 mm | white, grey, ESD black |
| PL-351G (with guide edge) | 40 mm | 33 mm | white, grey, black |
Designing a flow rack or parts feeding on a line? Enprag designs the lane for your containers including inclination and return lanes; the 3D design is free of charge and arrives before the quotation. Contact Enprag.
Frequently asked questions
What is the difference between the PL-351M, PL-351F and PL-351G roller tracks?
Roller diameter and pitch: PL-351M from Enprag has Ø27 mm rollers at a 16.5 mm pitch, PL-351F Ø28 mm rollers at 33 mm and PL-351G Ø40 mm rollers at 33 mm with a guide edge. All are 35 mm wide and 4000 mm long.
Are 35 mm roller tracks available in an ESD version?
Yes, Enprag PL-351M and PL-351F tracks are supplied with rollers in ESD black for antistatic workstations. The other variants have grey, white or black rollers, always with a 2-year warranty.
What inclination should a gravity lane made of roller rails have?
3° as standard – Enprag adjusts the inclination to the weight and type of container so that it rolls smoothly to the picking point. Lanes are designed for KLT containers as well as cardboard boxes.
In what form does Enprag supply roller tracks?
The rails are 4000 mm long; Enprag supplies material in full lengths, cut to size including assembly instructions and a drawing, or as a fully assembled structure. Finished assemblies are usually delivered within 2–4 weeks of ordering.
