Roller track PL-401X_YL
Code: PL-401X_YL
In stock

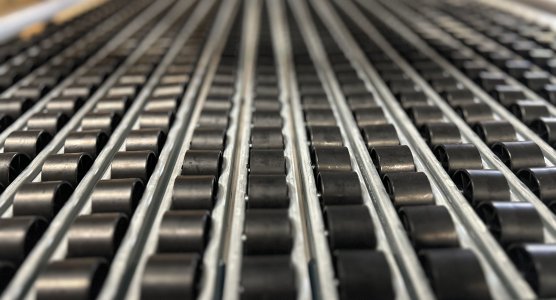

Roller tracks 40 mm – roller rails with Ø 27.5–46 mm rollers, also ESD
Roller tracks 40 mm are Enprag roller rails 40 mm wide with a standard length of 4000 mm for handling light to medium-weight loads in flow racks, FIFO supermarkets and gravity conveyors. They are supplied with rollers of Ø 27.5, 30, 33.5 or 46 mm, in white, grey, black and ESD versions and with a guide edge. Except for the multi-wheel roller track PL-401F_Z, all types are in stock.
more
Multi-wheel roller track PL-401F_Z
Code: PL-401F_Z
Roller Track PL-403F_EM – roller Diameter 33.5 mm
Code: PL-403F_EM
In stock
Roller track PL-402F_EM
Code: PL-402F_EM
In stock
Roller track PL-401G
Code: PL-401G
In stock
Roller track PL-401F
Code: PL-401F
In stock
40 mm wide roller rails for flow racks and FIFO
Roller tracks 40 mm (roller rails) from Enprag are tracks 40 mm wide with a standard length of 4000 mm and rollers of Ø 27.5–46 mm, designed for handling light to medium-weight loads in flow racks, FIFO supermarkets and gravity conveyors. They are made in coloured and ESD versions, and almost all types are in stock. The complete range of widths is in the roller tracks category.
40 mm roller rails: which roller diameter to choose?
The basic roller track PL-401F has a steel body and Ø 30 mm rollers in white, grey or ESD black. The smallest rollers, Ø 27.5 mm at a 35.7 mm pitch, are fitted on the ESD track PL-402F_EM weighing 2.63 kg; the ESD track PL-403F_EM has Ø 33.5 mm rollers and weighs 4.92 kg. The roller track PL-401G with Ø 46 mm rollers has a raised edge on one side that guides the crate along the rack; it is available in white, black and ESD black.
ESD roller rails and special versions
For electronics, the ESD tracks PL-402F_EM, PL-403F_EM and the variants PL-401G_EM and PL-401F in ESD design are intended. The PL-401X_YL track allows light to medium-weight loads to be moved in all directions, and the multi-wheel roller track PL-401F_Z is compatible with 40 × 40 mm profiles for FIFO and LIFO systems. Narrower and wider tracks are in the roller tracks 35 mm and roller tracks 60–85 mm categories.
Slope, guides and holders of a roller track in a flow rack
The standard slope of roller tracks in a flow rack is 3°; Enprag adjusts it to the weight and type of crate, for KLT containers and cardboard boxes alike. Side guide rails are in the guidance for roller tracks category, and mounting to the structure is handled by roller track holders.
| Model | Roller diameter | Version | Availability |
|---|---|---|---|
| PL-401F | 30 mm | steel body, white, grey, ESD | in stock |
| PL-402F_EM | 27.5 mm, 35.7 mm pitch | ESD, weight 2.63 kg | in stock |
| PL-403F_EM | 33.5 mm | ESD, black, weight 4.92 kg | in stock |
| PL-401G | 46 mm | guide edge, white, black, ESD | in stock |
| PL-401X_YL | – | handling in all directions | in stock |
| PL-401F_Z | multi-wheel | for 40 × 40 profiles, FIFO/LIFO | on request |
Planning a flow rack with 40 mm tracks? Send us a sketch with dimensions and crate type – Enprag will recommend the track type and slope, cut the tracks to length and prepare a 3D design free of charge. Contact Enprag.
Frequently asked questions
What roller diameter do 40 mm roller tracks have?
Enprag roller tracks 40 mm have rollers of Ø 27.5 mm (PL-402F_EM), 30 mm (PL-401F), 33.5 mm (PL-403F_EM) or 46 mm (PL-401G). On PL-401G, the larger diameter with a guide edge keeps the crate in its lane.
Are roller tracks 40 mm available in an ESD version?
Yes, Enprag supplies the ESD tracks PL-402F_EM and PL-403F_EM and ESD variants of PL-401G and PL-401F, all 4000 mm long. They suit flow racks and conveyors in ESD protected areas.
What slope should a 40 mm roller track have in a flow rack?
The standard slope of Enprag roller tracks is 3°, and our designers adjust it to the weight and type of crate. Tracks are designed the same way for KLT containers and cardboard boxes.
How long are roller tracks 40 mm?
Enprag roller tracks 40 mm have a standard length of 4000 mm, and we cut them to the length you need. We supply them as material, as cut parts with assembly instructions or as a finished rack.
