Spool trolley 22010701
Code: 22010701

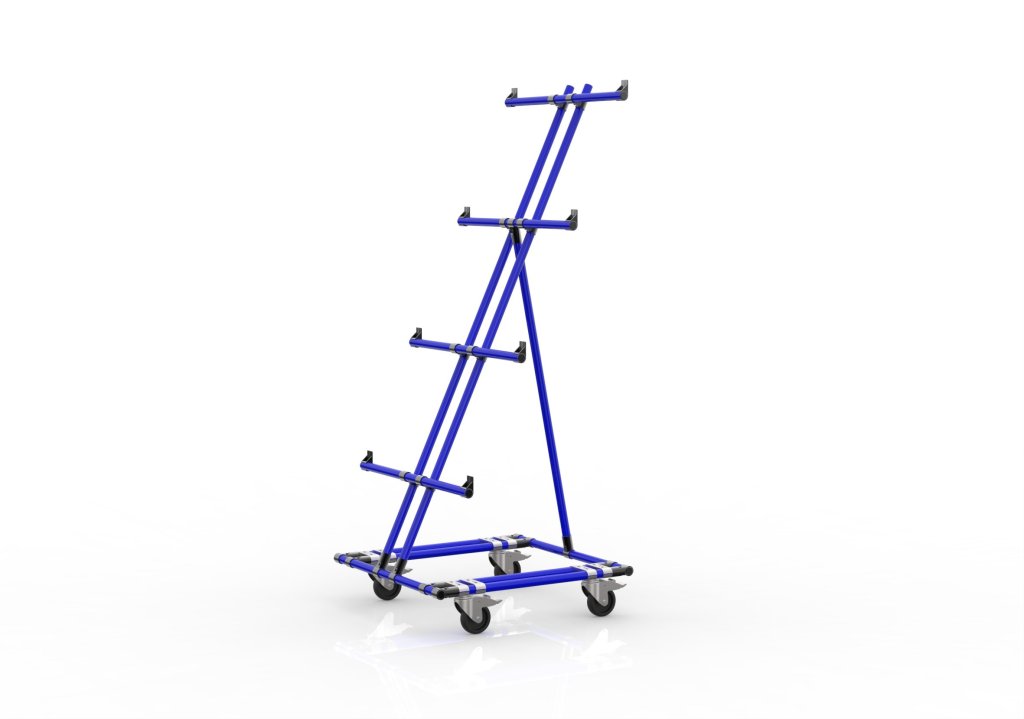

The spool trolley 22010701 is used to store and transport large spools of wire and cable safely. This modular trolley made of a tube system has a load capacity of 100 kg, dimensions of 700 x 733 mm full description and parameters
Spool trolley 22010701
The spool trolley 22010701 is used to store and transport large spools of wire and cable safely. This modular trolley made of a tube system has a load capacity of 100 kg, dimensions of 700 x 733 mm and a height of 1679 mm. The wheels with brakes prevent spontaneous movement when the trolley is not in use.
- provides a safe place to store cables
- reduces the risk of injury to employees
- wheels equipped with brakes
- the color of the structure can be selected according to the available tubes on the website
- load capacity: 100 kg

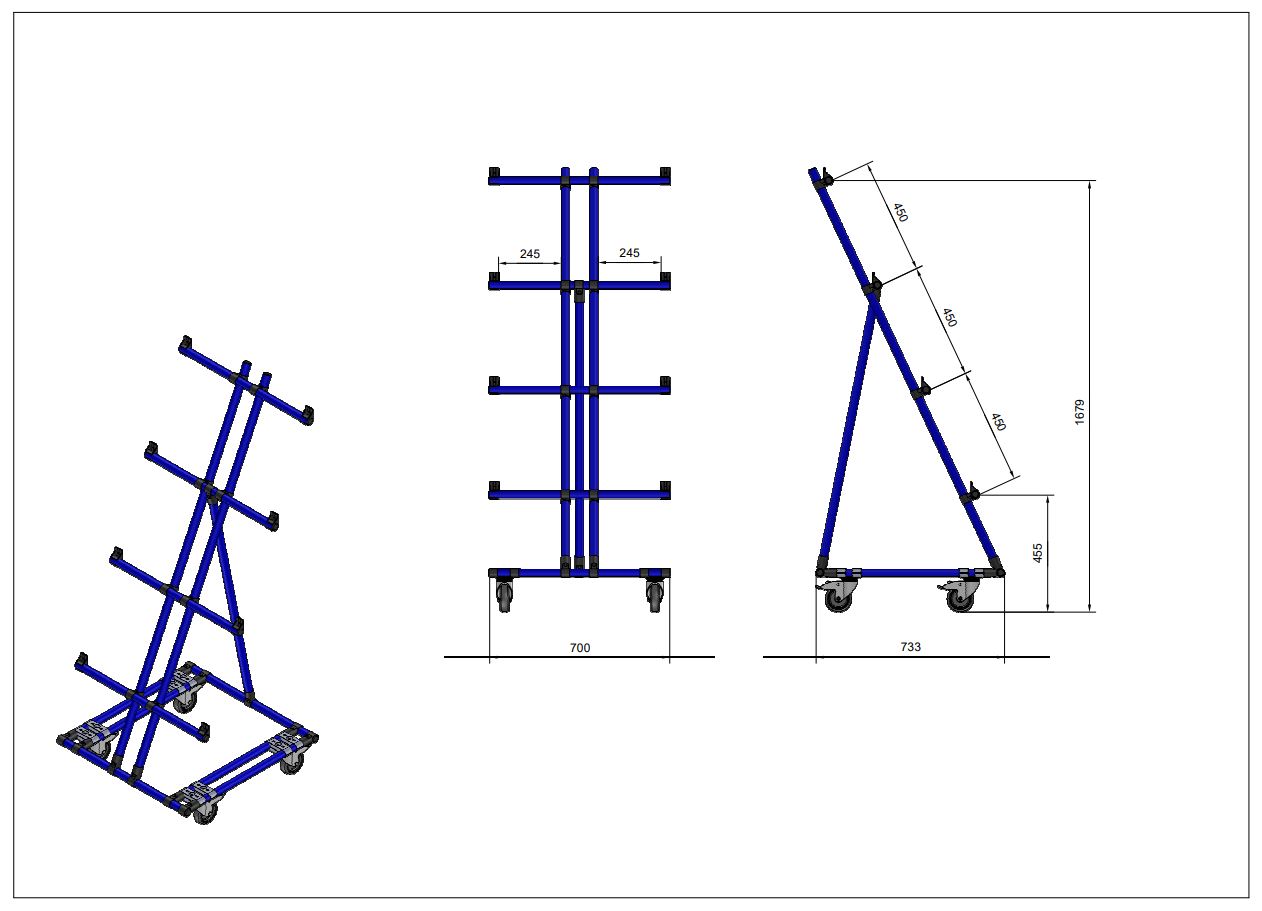

- dimensions (w × d × h): 700 x 733 x 1679 mm
- structure made of the Logiform tube system
Customized application, all dimensions can be adjusted according to customer needs.

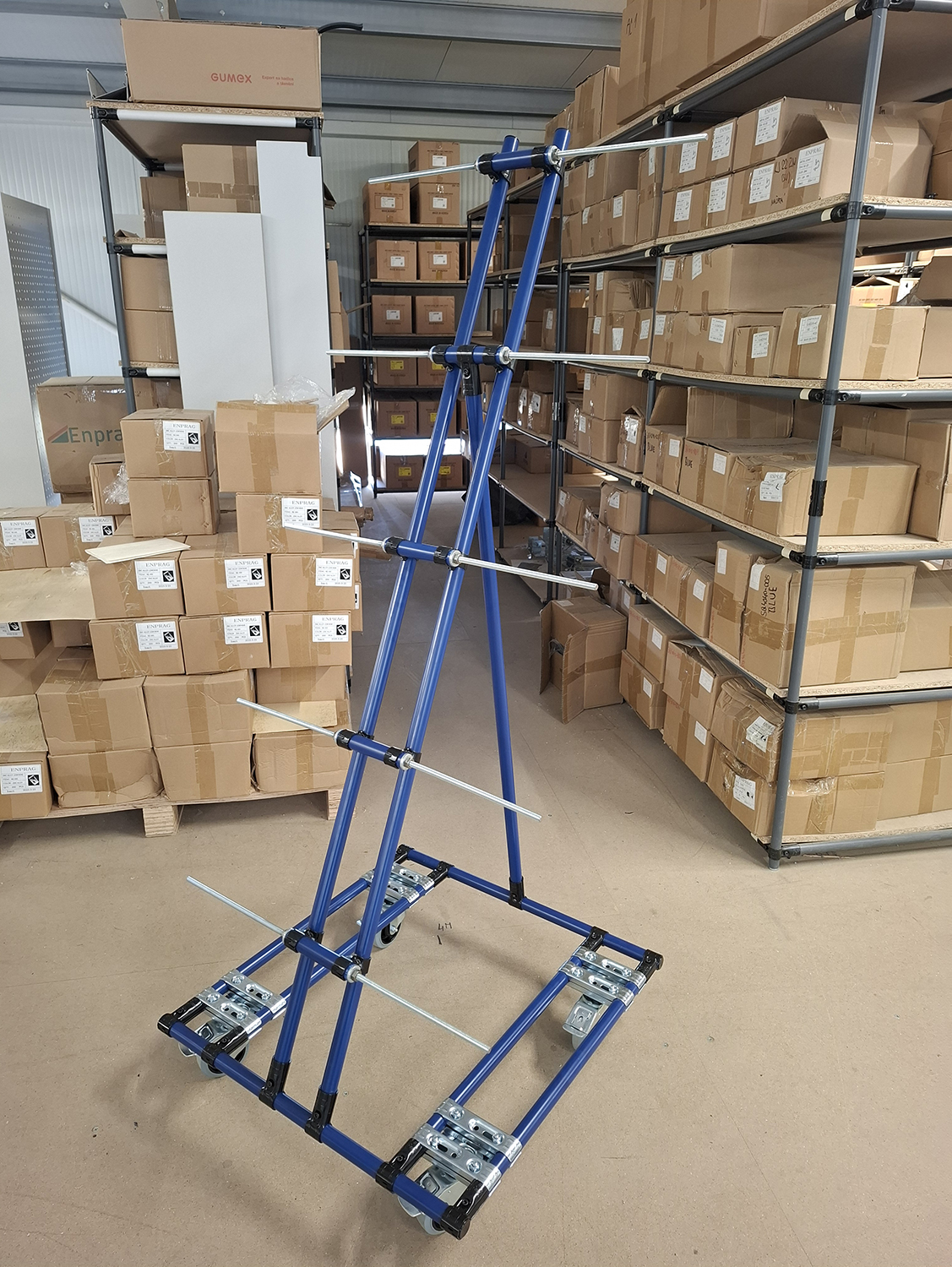

The brakes on the wheels hold the trolley in place when spools are loaded and set down, so heavy spools do not roll around the workshop and the risk of injury to the operator is reduced. We build on the Logiform tube system, so the structure can be rebuilt later and, in case of damage, only the individual part needs to be replaced. You can use it, for example, to supply a workstation with spools of wire and cable or to store them when not in use.
We check the tube wall thickness (1 or 2 mm) against the required load capacity and dimensions and design it so that the structure does not give way under load.
Is this trolley not right for you? In the category you will find other trolleys and stands made of the tube system in a different design, dimensions and load capacity – you can choose according to your workstation.
All products in the Others category
Frequently asked questions
How do I choose the load capacity of a spool trolley?
This spool trolley carries 100 kg. If you transport heavier spools, we will design a structure with a higher load capacity; trolleys made of a tube system are usually built for up to 1 t.
Is the spool trolley also suitable for cable reels or other wound material?
Yes, the spool trolley is intended for wound material – wires, cables and tapes. We start from the diameter and width of the reels and use them to design the spacing and the number of storage positions.
Can the spool trolley be adapted to the dimensions of our spools?
Yes, we adjust the dimensions of the trolley to the diameter and number of your spools and take into account how they are stored in your operation.
Did you not find the answer to your question?
Contact our experts via the inquiry form, by phone or by email. They will go through the requirements of your operation with you and prepare a product proposal tailored to your needs free of charge.
You will find the inquiry form further down on this page.

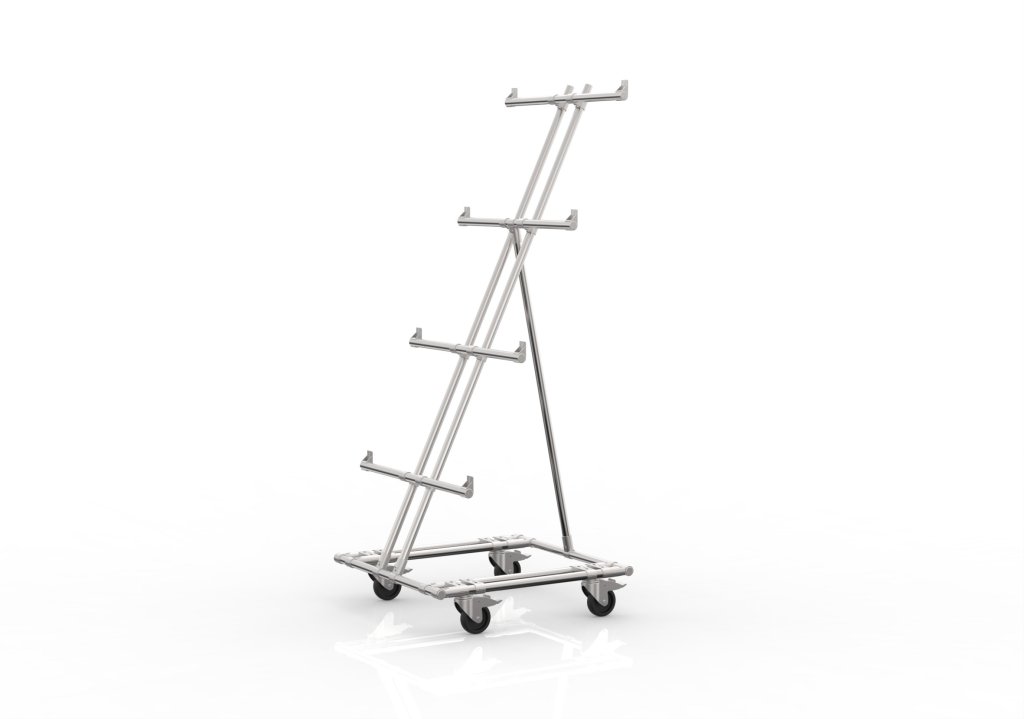

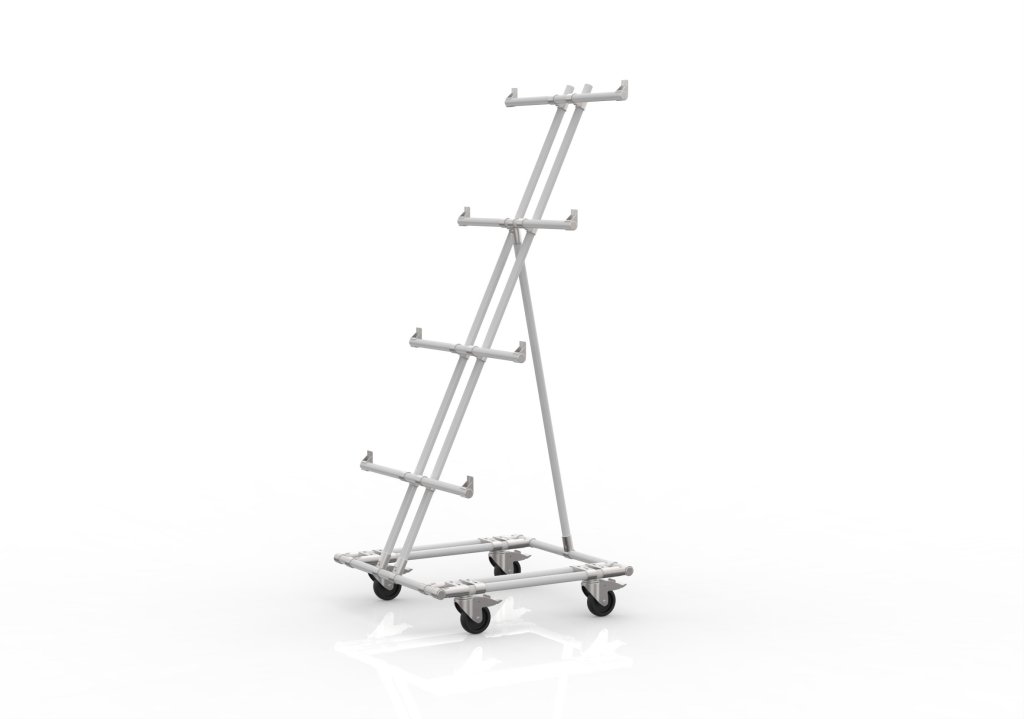

The tubes are available in several colors and in ESD or stainless steel versions.
| Color variants | ESD variant | Stainless steel variant |
![]() |
![]() |
![]() |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
![]() |
![]() |
![]() |
| metal connectors are always available in three variants - black, silver and nickel | ||
