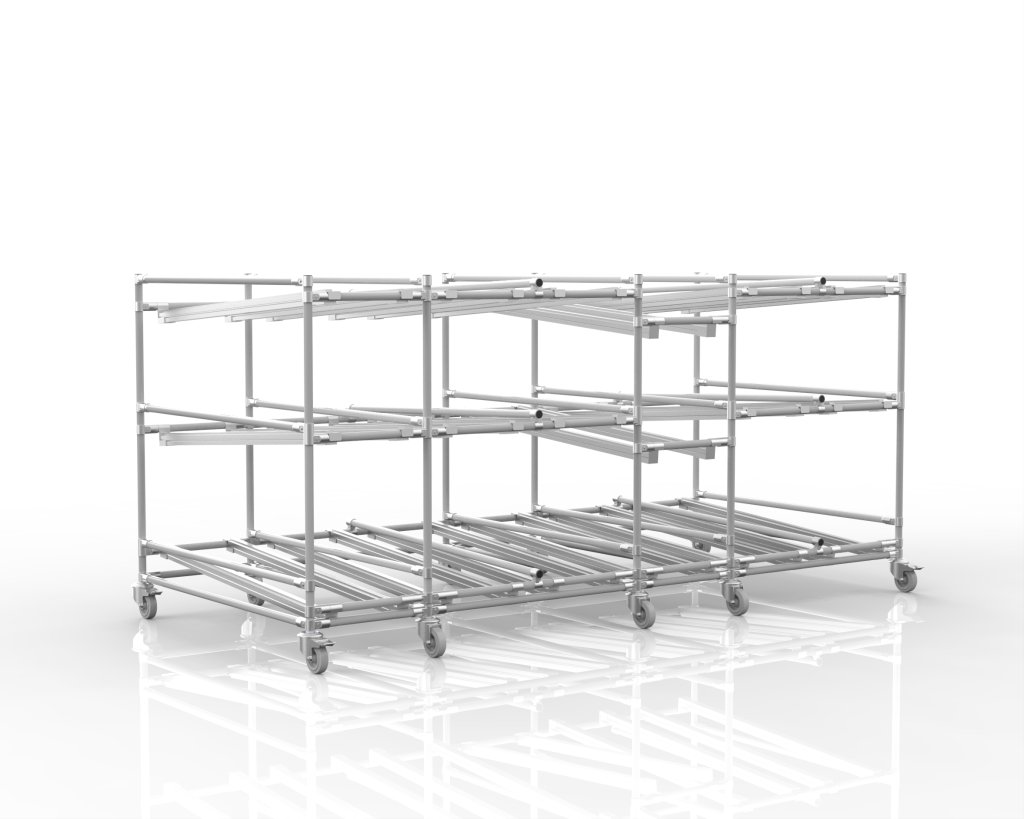

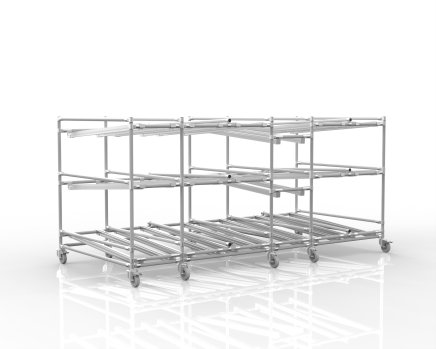

Three-level mobile gravity flow rack with roller tracks
Code: 26052808
The three-level mobile gravity flow rack, built from a modular tubular system, provides organised storage and sequential picking of materials in containers. Three levels of roller tracks allow full description and parameters
Three-level mobile gravity flow rack with roller tracks
The three-level mobile gravity flow rack, built from a modular tubular system, provides organised storage and sequential picking of materials in containers. Three levels of roller tracks allow containers to be stored one above another and make use of the available height. The rack is suitable for storage, material supply and order picking.
Containers move along the inclined tracks under their own weight towards the picking point, without a motorised drive. When the front container is removed, the next one moves into its place. Castors allow the rack to be moved as required, for example when changing the facility layout or relocating a supply point.
- 3 levels of roller tracks
- mobile design on castors
- load capacity per level: 300 kg
- total load capacity: 900 kg
- dimensions (H × W × D): 1 260 × 2 733 × 1 253 mm
Custom solutions: we adapt the rack dimensions, number and width of tracks, and spacing between levels to the containers used and the required stock level. We consider the weight of the materials, available space and methods of replenishment and picking.
FAQ
How should different materials be allocated to individual tracks?
We design the layout according to the number of material types, container dimensions and required stock level. We also consider picking frequency and which parts operators use together so that the arrangement matches the workflow.
How should the appropriate spacing between levels be chosen?
We determine the spacing during the design stage based on container height and the handling method. It matters whether operators remove whole containers or pick individual parts directly from them. We allow the necessary space for access to the materials and stock replenishment accordingly.
How can I get a custom rack design?
Contact our specialists using the enquiry form, by phone or by email. They will discuss your operational requirements with you and prepare a rack design tailored to your needs free of charge.
| Colour variants | ESD version | Stainless steel version |
![]() |
![]() |
![]() |
| steel tube with a wall thickness of 1 mm (LP-1100) or 2 mm (LP-1200) | antistatic steel tube with a wall thickness of 1 mm (CP-1100BK) or 2 mm (CP-1200BK) | stainless steel tube with a wall thickness of 0.7 mm (ST-1070) or 1.1 mm (ST-1110) |
| Black version | Nickel version | Silver version |
![]() |
![]() |
![]() |
| Metal joints are available in three versions: black, silver and nickel. | ||
