Tipper 4704
Code: 4704
Tippable transporter made in Germany, the tub is made of 2 mm thick steel sheet, leakproof welded, the upper edge is reinforced for greater resistance. The chassis is made of 3 mm thick steel sheet. full description and parameters
Product description

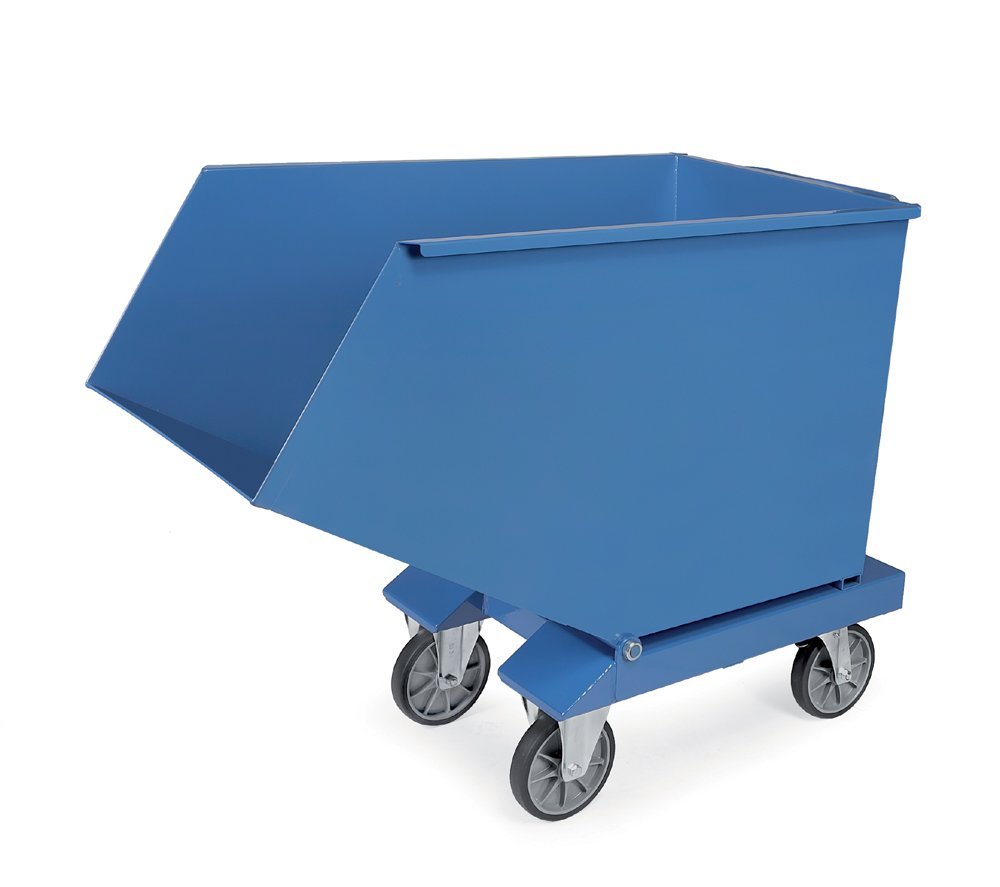

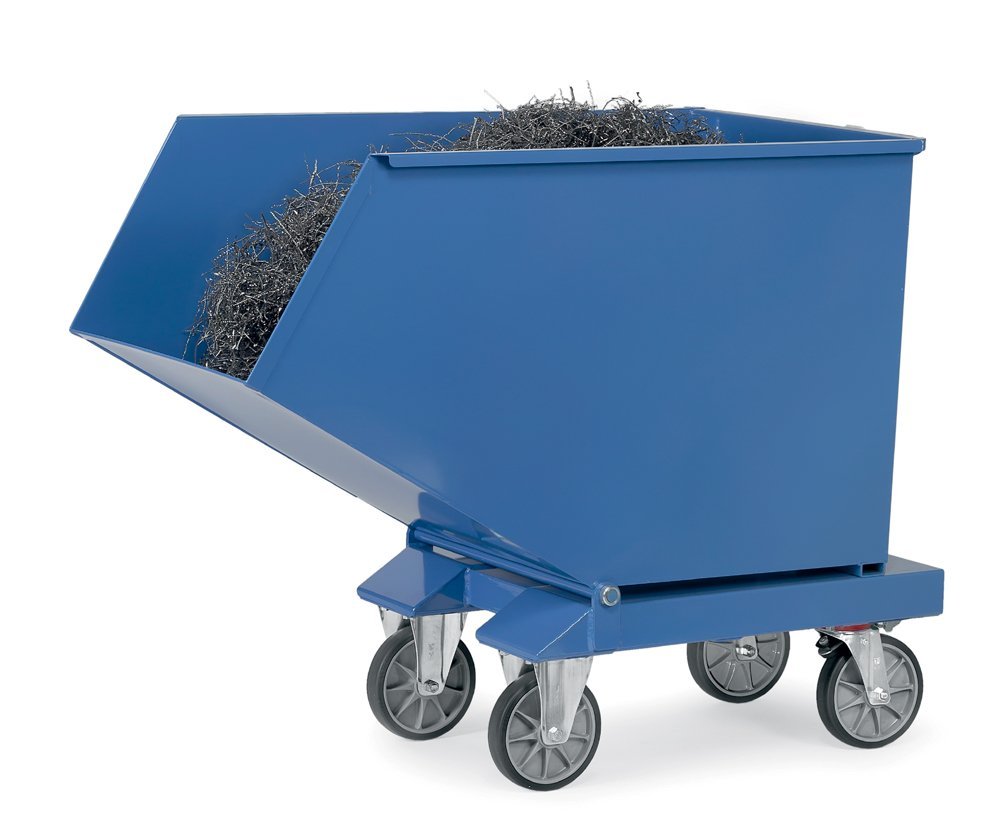

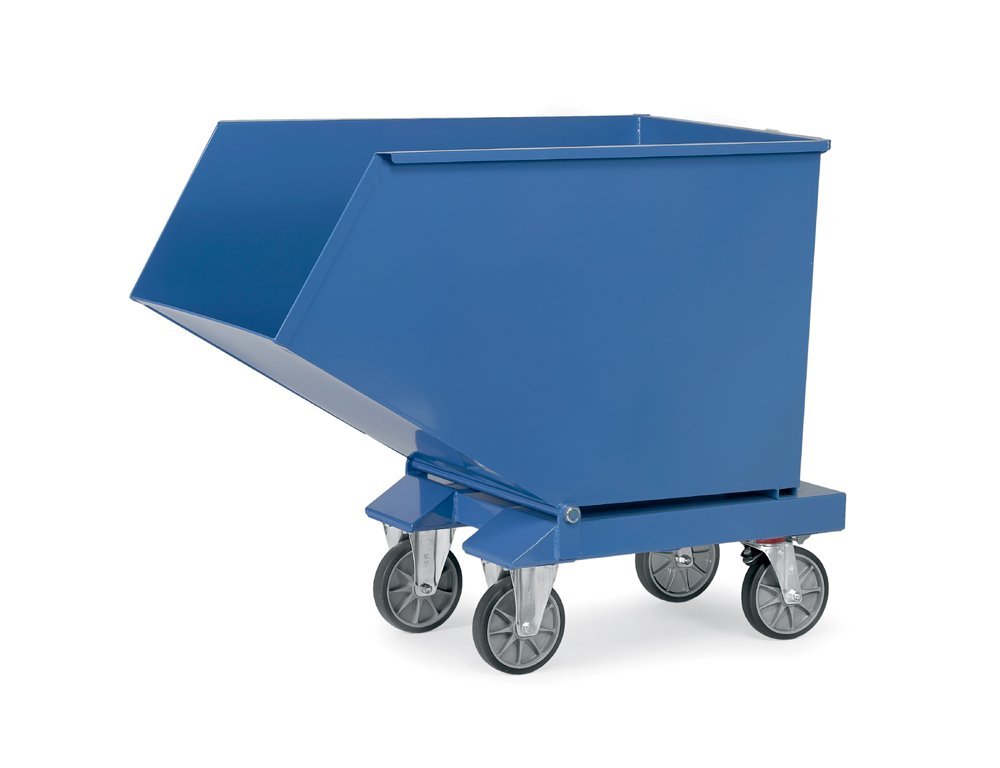

Tipper 4704
Tippable transporter made in Germany, the tub is made of 2 mm thick steel sheet, leakproof welded, the upper edge is reinforced for greater resistance. The chassis is made of 3 mm thick steel sheet. Elastic wheels.
- Tippable transporter made in Germany
- the tub is made of 2 mm thick steel sheet, sealed welded, the upper edge is reinforced for greater resistance
- color blue RAL 5007
- the chassis is made of 3 mm thick sheet steel with built-in forklift pockets
- can be attached to a forklift with a chain for safe tipping
- 4 elastic wheels, of which 2 swivel with brake, 2 fixed
- Fetra central brake system - Totalstop
Fetra central braking system - Totalstop
Innovative, comfortable, ergonomic and safe.
- this braking system developed by Fetra can be easily locked or released with just one foot
- the movement of both swivel wheels is safely secured
- due to its position, the brake pedal is visible and the trolley can be secured in any position
- Patent DE 201220011982
Forklift dimensions:
| Code | Liter Contents | A (mm) | B (mm) | C (mm) | D (mm) |
| 4701 | 250 | 194 | 203 | 603 | 70 |
| 4702 | 450 | 194 | 203 | 603 | 70 |
| 4703 | 600 | 194 | 327 | 727 | 70 |
| 4704 | 800 | 194 | 578 | 978 | 70 |
Technical parameters
Carrying capacity
800 kg
Mass
114 kg
Liters content
800
The height of the tipping edge
721 mm
Warranty (years)
10
Manufacturer
All models
