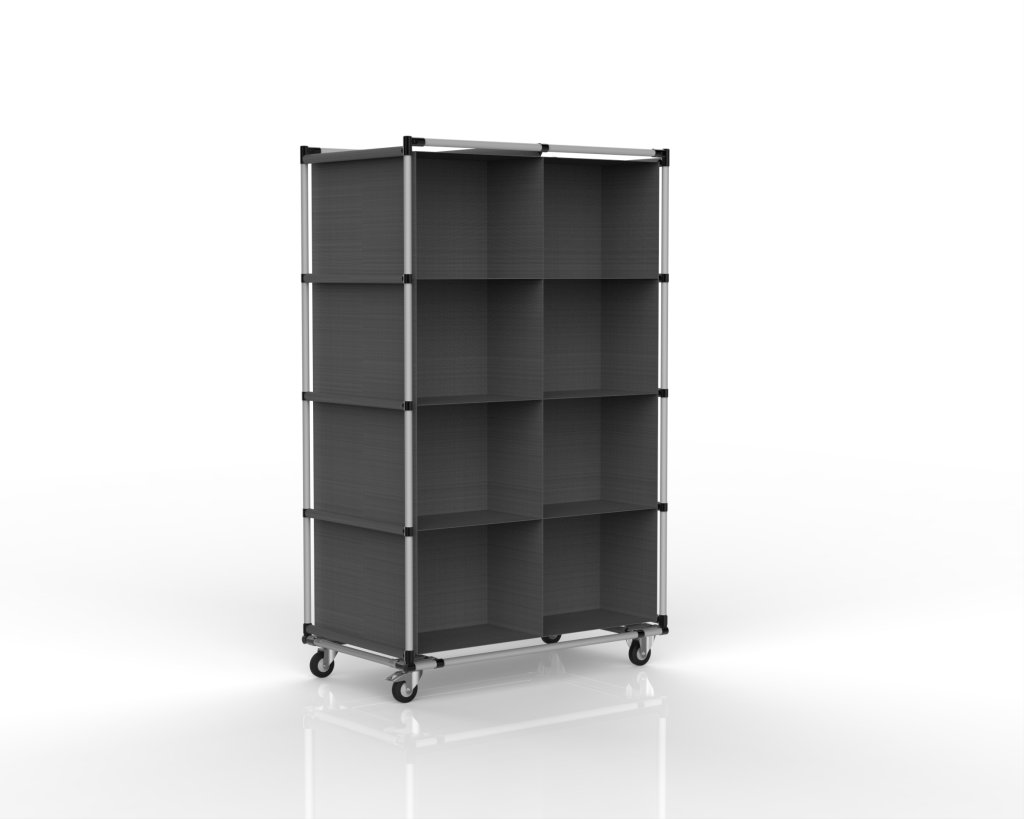

Trolley with a textile insert secured by sleeves, 8 + 8 pockets

Trolley made from a modular tube system with a textile insert secured by sleeves, for storing and transporting materials. 8 + 8 pockets, four swivel castors, one braked. Dimensions (h × w × d): 2 033 × 1 238 × 728 mm.

• modular tube system
• textile insert attached to the frame by sleeves
• 8 + 8 pockets, 8 on each side of the trolley
• 4 swivel castors, including 1 with a brake
• dimensions of one pocket (h × w × d): 448 × 571.5 × 348 mm
• frame dimensions (h × w × d): 2 033 × 1 238 × 728 mm

Custom solution. We adapt the trolley dimensions and pocket layout to the materials being transported and the space available. The design takes account of the size and shape of the parts, how they are loaded and removed, and the handling requirements within your facility.

The textile insert trolley is suitable for organised storage and safe transport of materials in production facilities and warehouses. It can be used, for example, to supply workstations or move parts between individual production operations.

The textile insert divides the storage area into separate compartments (textile pockets). Storing parts separately limits contact between them and helps prevent scratches and other damage during handling and transport. Operators also have a clear overview of the stored materials. The pockets are accessible from both sides of the trolley, with 8 compartments on each side.

The supporting tubes pass through sleeves in the textile insert, securing it firmly to the frame. Four swivel castors make the trolley easy to manoeuvre. One castor has a brake to secure the trolley when parked.

FAQ

How do you choose the right pocket layout?
We start with the size and shape of the parts being transported and the way they are stored. We then design the dimensions and layout of the individual compartments. We also consider the required number of storage spaces and sufficient room for convenient loading and removal of materials.

Can the trolley be modified if the transported materials change?
We assess the modification options based on the existing frame and the requirements of the new materials. We check whether the dimensions of the trolley and the textile insert are suitable and propose the necessary changes.

How can I get a custom textile insert trolley design?
Contact our experts via the enquiry form, by phone or by email. They will discuss your operational requirements with you and prepare a trolley design, including a 3D visualisation, free of charge.

Color variants	ESD variant	Stainless steel variant
1 mm thick steel tube (LP-1100) or 2 mm (LP-1200)	antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK)	0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110)

Black variant	Nickel variant	Silver variant
metal clutches are always available in three variants - black, silver and nickel
