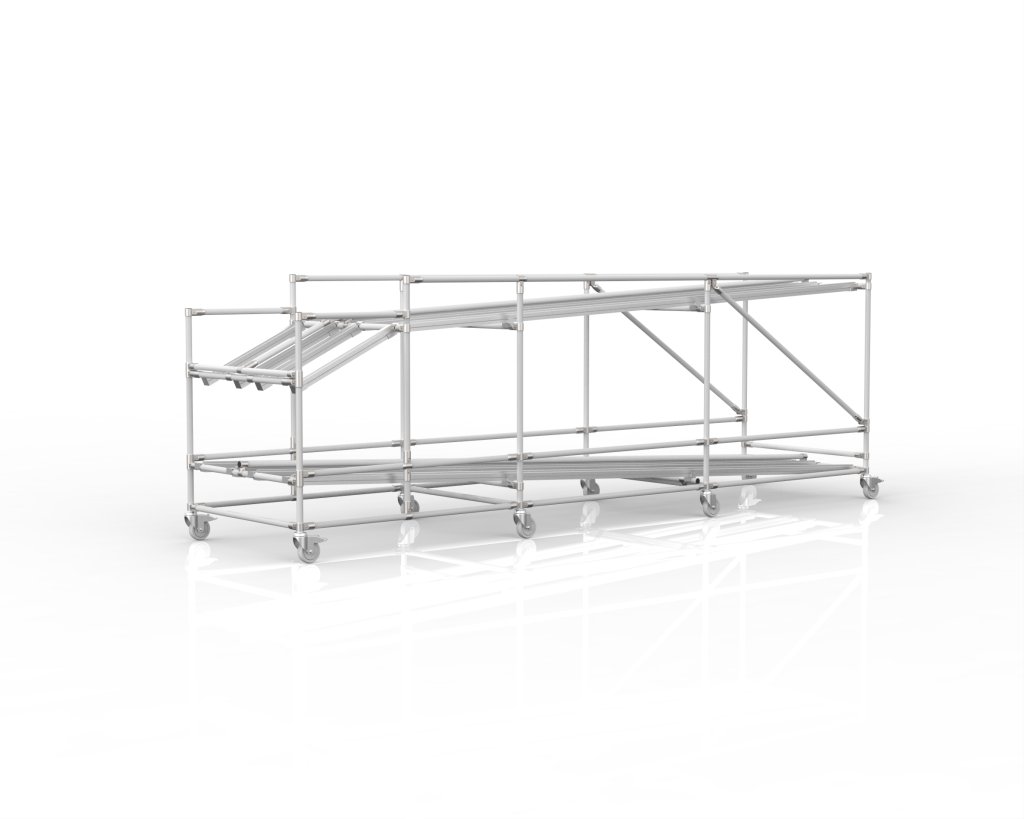

Two-tier mobile flow rack
This two-tier mobile flow rack made from a modular pipe system is designed for storing and progressively picking material from containers. The long roller tracks allow several containers to be lined up one behind another, creating a buffer stock for storage, replenishment or material picking.
The two tiers allow containers to be stored one above another, making use of the available height. Containers move along the inclined tracks under their own weight towards the picking point, without a motor drive. The castors allow the rack to be moved as needed, for example when reorganising the workplace.
- 2 tiers of roller tracks
- mobile design on castors
- load capacity per tier: 200 kg
- total load capacity: 400 kg
- dimensions (H × W × D): 1 207 × 933 × 3 633 mm
Custom solutions, we adapt the rack dimensions, tier heights and track arrangement to the containers used and the required buffer stock. We take into account their weight, the number of containers lined up one behind another and the space needed for replenishment and material picking.
FAQ
How do you choose the required roller track length?
We base the design on the container dimensions and the number of containers you need to keep in stock one behind another. When determining this stock level, material consumption and replenishment frequency should be considered. We then adapt the rack length to the available space.
How is the appropriate tier height determined?
We design the tier heights according to the containers used and the way the operator works. We consider whether entire containers or individual parts are picked directly from them, and leave enough space for handling.
How can you get a custom rack design?
Contact our experts via the enquiry form, by telephone or by email. They will discuss your operational requirements with you and prepare a rack design tailored to your needs free of charge.
| Colour options | ESD version | Stainless steel version |
![]() |
![]() |
![]() |
| steel pipe with a wall thickness of 1 mm (LP-1100) or 2 mm (LP-1200) | antistatic steel pipe with a wall thickness of 1 mm (CP-1100BK) or 2 mm (CP-1200BK) | stainless steel pipe with a wall thickness of 0.7 mm (ST-1070) or 1.1 mm (ST-1110) |
| Black version | Nickel version | Silver version |
![]() |
![]() |
![]() |
| metal joints are available in three versions: black, silver and nickel | ||
