Vertical storage rack MINI-RACK base (6 models)
Code: 76673
Racks for storage of vertical profiles base. Rack height 2200, 2500 or 3000, width 1400, depth 500 (one-sided) or 800 mm (double-sided). Surface treatment powder color light gray RAL 7035, reinforcing full description and parameters
Product description

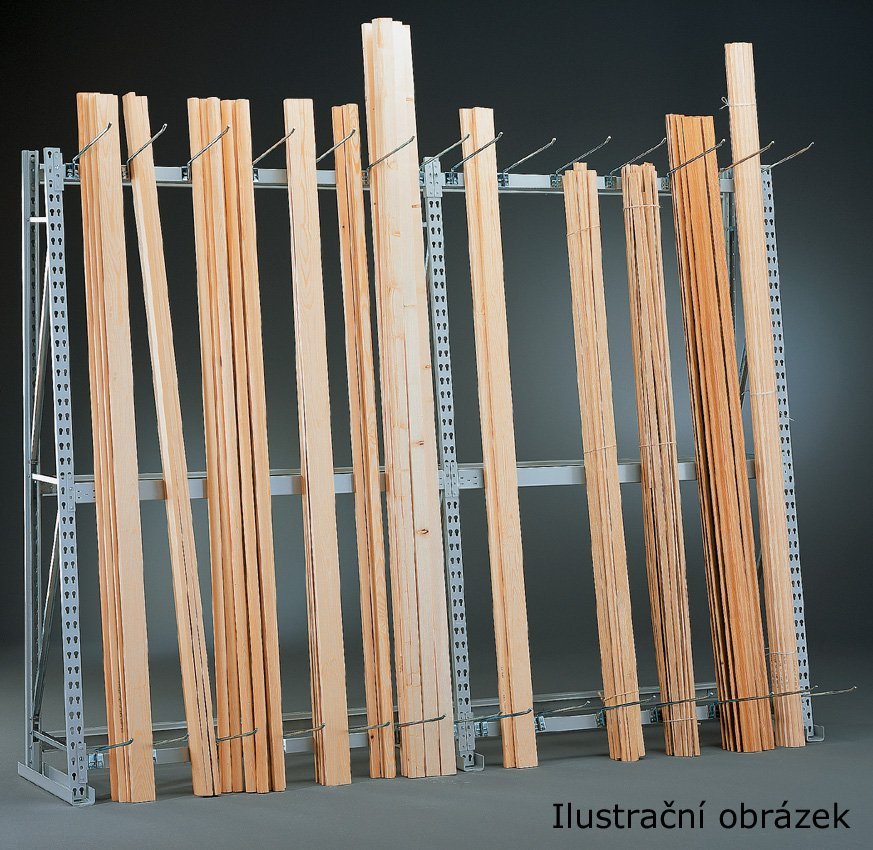

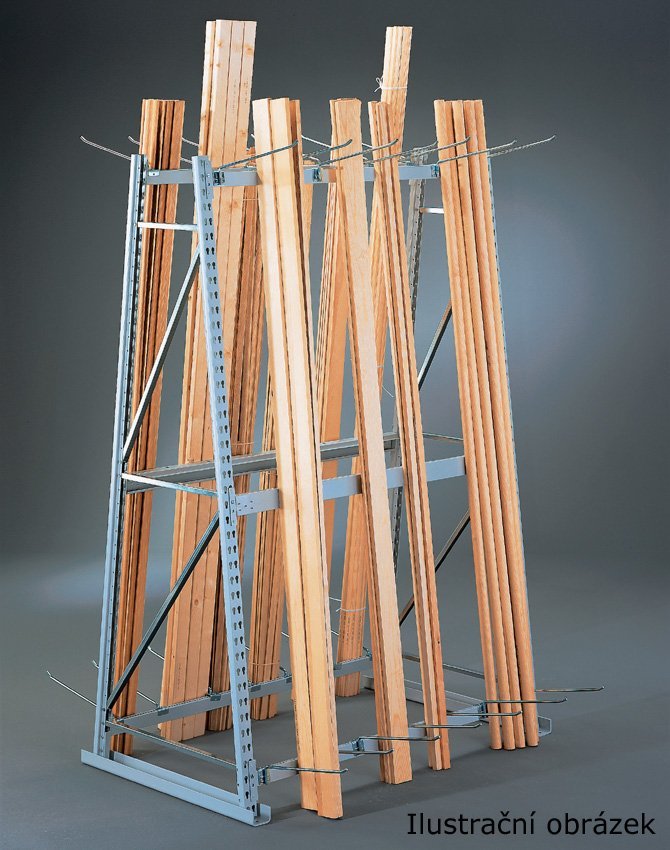

Vertical storage rack MINI-RACK base type 76673
Racks for storage of vertical profiles base. Rack height 2200, 2500 or 3000, width 1400, depth 500 (one-sided) or 800 mm (double-sided). Surface treatment powder color light gray RAL 7035, reinforcing profiles galvanized.
- frame height 2200, 2500 or 3000 mm
- optimal for upright storage of wooden profiles, panels, ladders and rod material
- depth of separating arms 400 mm
- frame inclination 6°, maximum lateral force 50 kg
- frames and adjustable stringers color light gray RAL 7035, horizontals, diagonals and separating arms galvanized
- separating arms are not part of the delivery, must be ordered separately
- CAUTION - racks with a height/depth ratio equal to or greater than 5 must be secured against tipping over
- when planning, it is necessary to add 107 mm for the base racks + 51 mm for each extension racks
Technical parameters
Total height
2200 mm
Width
1400 mm
Depth
500 mm
Mass
45 kg
Warranty (years)
5
Manufacturer
All models
Technical parameters
Code
Mass
Total height
Width
Depth
In stock
Price
You can buy more
Similar products
Information / documents
Before you order the shelf:
- please note that the dimensions shown (width + depth) are the net dimensions of the shelf of the bookcase
- an additional approx. 60 mm (width of the sides) must be added to the total width of the shelf or shelf set
- this is important in the case of placing a shelf or a shelf assembly, for example, in a niche or between two walls
- when measuring the space in which you want to place the shelf, please don't forget the plinth or heating pipes as well
Documents for download:
- CLIP + FIX Declaration of Conformity
- META shelf catalog
- META CLIP assembly instructions
- CLIP accessory assembly instructions
- META COMPACT assembly instructions
- META CLIP S3 assembly instructions
- META FIX assembly instructions
- META Speed-Rack assembly instructions
- META Mini-Rack assembly instructions
- ATLAS, Multistrong M+L assembly instructions
- META Multipal assembly instructions
- Multipal accessories assembly instructions
- META Multistrong H assembly instructions
- META Reifenregal assembly instructions
- load capacities of META Fix shelves
