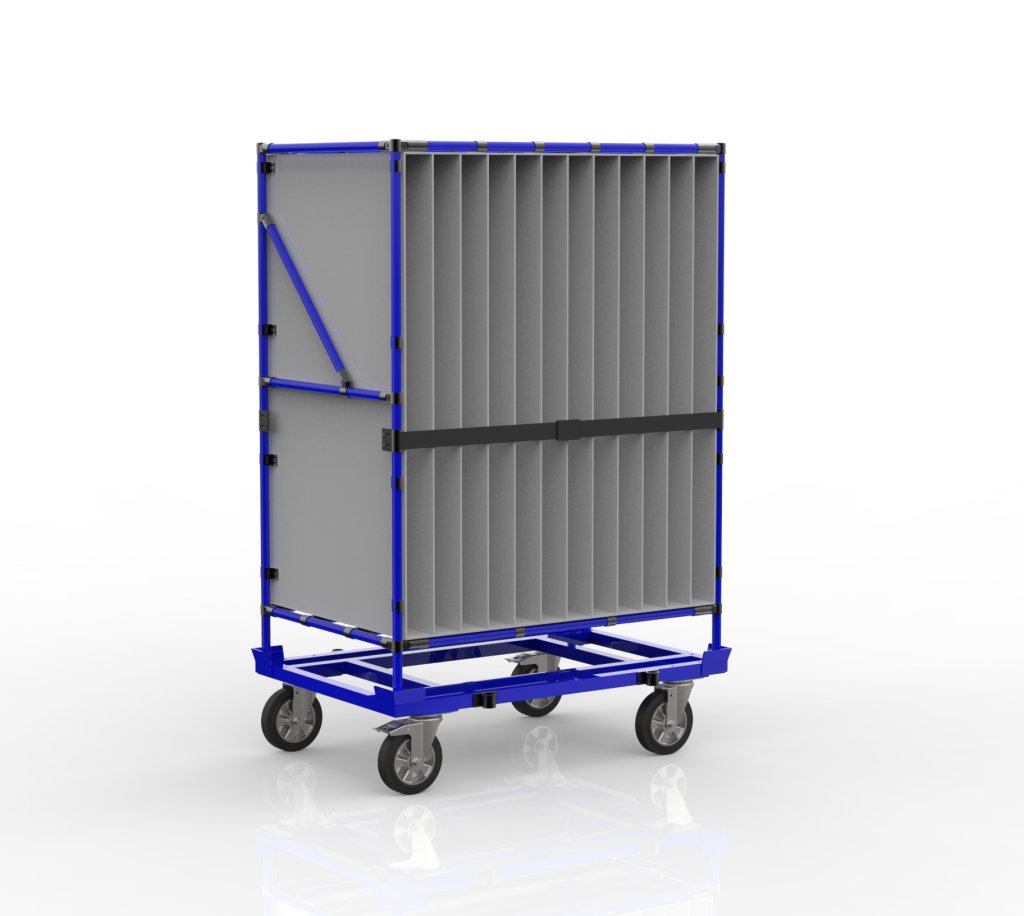

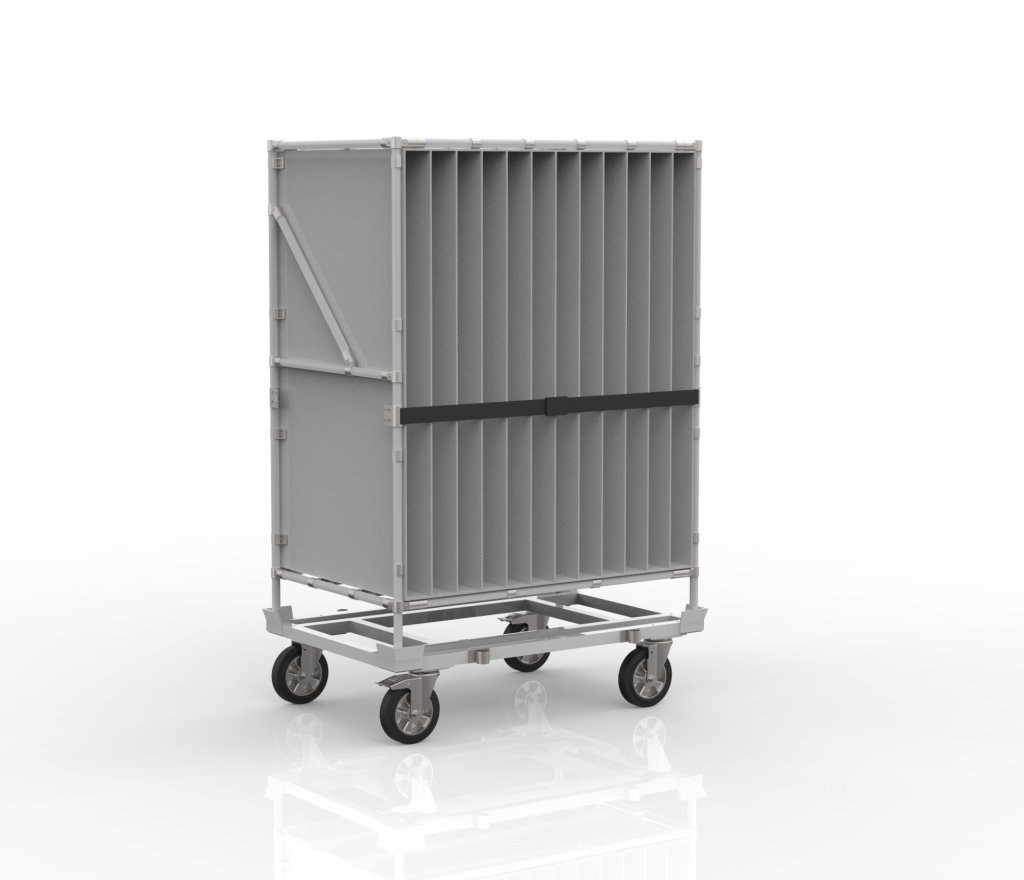

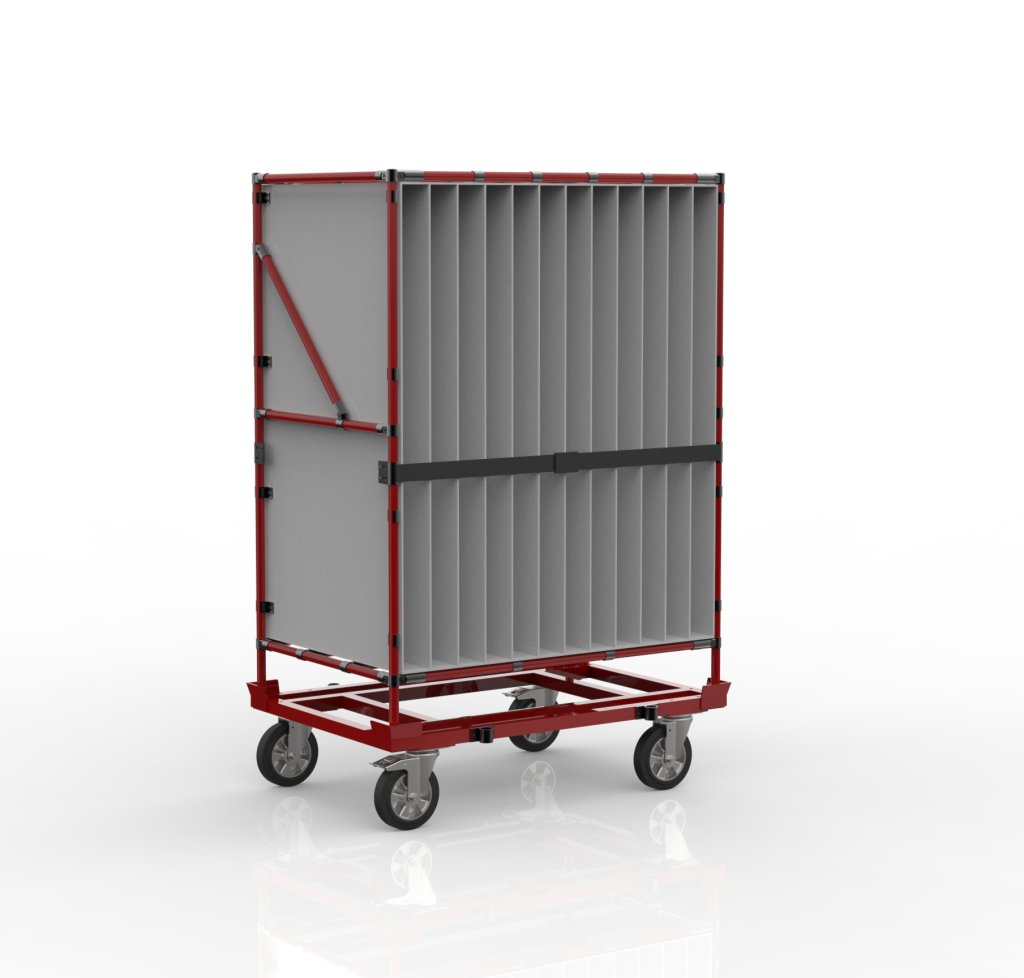

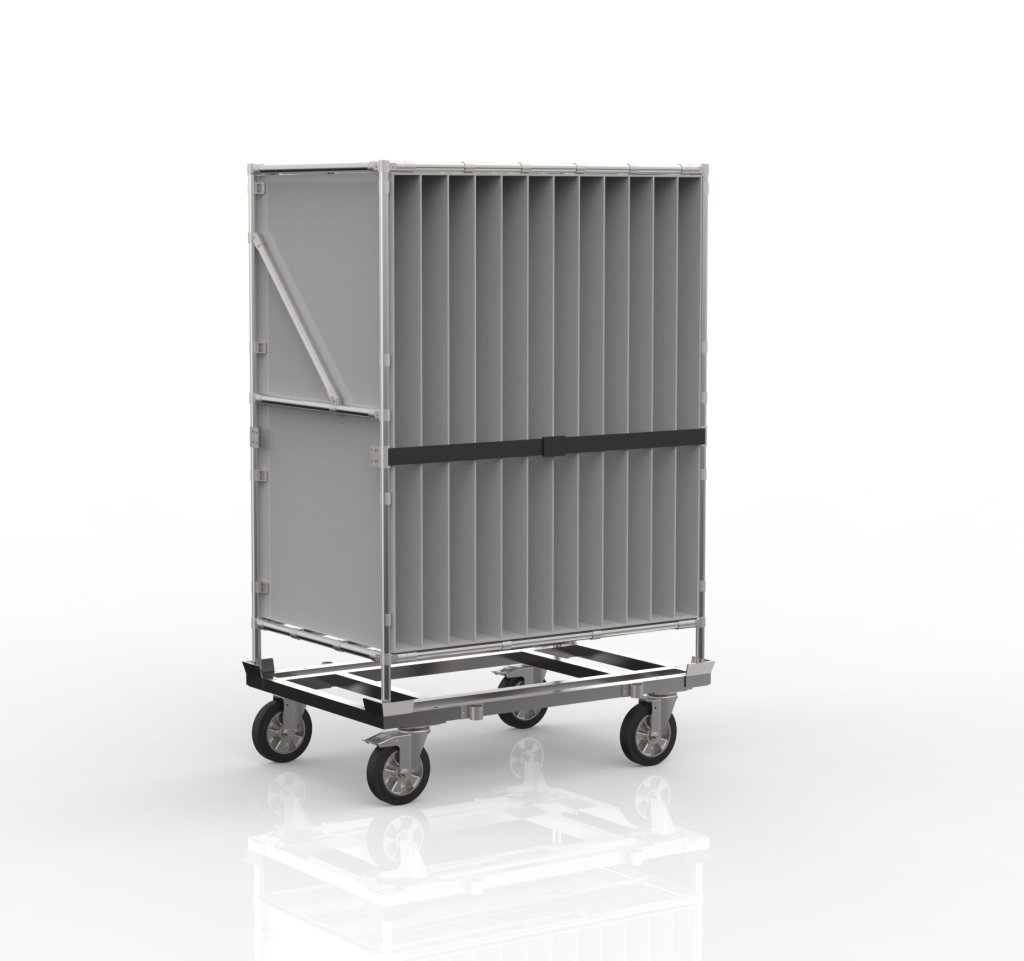

Work cart for material transport 24102401
Code: 24102401
Welded trolley with a tubular system extension. The base of the trolley consists of a welded steel frame with a galvanized surface, and the extension is made of a tubular modular system with a full description and parameters
Product description
Work cart for material transport
Welded trolley with a tubular system extension. The base of the trolley consists of a welded steel frame with a galvanized surface, and the extension is made of a tubular modular system with a laminated PP insert featuring a removable bottom in each compartment. For securing stored materials, a strap with loops on each side is provided. The trolley also includes two swivel wheels with brakes and two swivel wheels without brakes, each with a diameter of 200 mm. Load capacity of the trolley: 120 kg. Dimensions: 1885 x 1203 x 803 mm.
- welded steel frame
- extension from tubular modular system
- 2x swivel wheel with brake, 2x swivel wheel without brake
- wheel diameter 200 mm
- load capacity 120 kg
- dimensions 1885 x 1203 x 803 mm
Customized application, all dimensions can be adjusted according to customer needs. The tubes are available in several colors and in ESD or stainless steel versions.
| Color variants | ESD variant | Stainless steel variant |
 |
 |
 |
| 1 mm thick steel tube (LP-1100) or 2 mm (LP-1200) | antistatic steel tube 1 mm thick (CP-1100BK) or 2 mm (CP-1200BK) | 0.7 mm thick stainless steel tube (ST-1070) or 1.1 mm (ST-1110) |
| Black variant | Nickel variant | Silver variant |
 |
 |
 |
| metal clutches are always available in three variants - black, silver and nickel | ||
Technical parameters
Total height
1885 mm
Width
1203 mm
Depth
803 mm
Carrying capacity
120 kg
Wheel diameter
200 mm
Warranty (years)
2
Manufacturer
