Structural pipes Logiform Ø28 mm – steel, ESD, stainless steel and aluminum

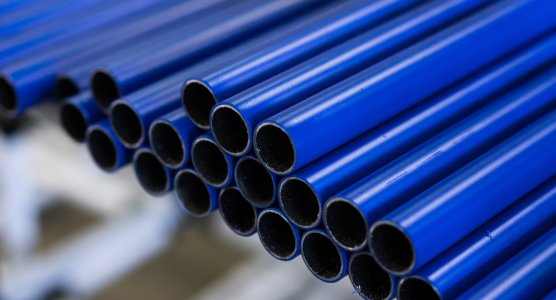

Logiform structural pipes with a diameter of 28 mm are the load-bearing element of the pipe modular system used to build assembly workstations, shelving, carts and conveyors. They are supplied in a length of 4000 mm or cut to customer requirements, with a wall thickness of 0.7–2 mm, in steel with a synthetic resin surface, ESD, stainless steel and aluminum versions, with a 5-year warranty. They are connected with metal, plastic or aluminum joints, individually or in sets. more

Steel pipes

Aluminum pipes

Pipe brackets

Accessories

Detailed filtering

We recommend From the cheapest From the most expensive

Steel tube Logiform LP-1100 wall thickness 1 mm

Steel tube Logiform LP-1100 wall thickness 1 mm Code: LP-1100

In stock

17.21 € without VAT (20.82 € with VAT)

Steel tube Logiform LP-1100 wall thickness 1 mm Code: LP-1100

Logiform steel pipe, Ø 28 mm, length 4000 mm, wall thickness 1 mm, choice of several colors. A steel pipe with a synthetic resin surface.

Steel tube Logiform LP-1200 wall thickness 2 mm

Steel tube Logiform LP-1200 wall thickness 2 mm Code: LP-1200

In stock

32.39 € without VAT (39.19 € with VAT)

Steel tube Logiform LP-1200 wall thickness 2 mm Code: LP-1200

Logiform steel tube, Ø 28 mm, length 4000 mm, wall thickness 2 mm, choice of several colors. A steel pipe with a synthetic resin surface.

Safety Steel Tube LP-100_SAFETY

Safety Steel Tube LP-100_SAFETY Code: LP-1100_SAFETY

In stock

32.31 € without VAT (39.10 € with VAT)

Safety Steel Tube LP-100_SAFETY Code: LP-1100_SAFETY

Steel Tube Logiform, Ø 28 mm, length 4000 mm, wall thickness 1 mm. Steel tube with a surface coated in safety synthetic resin.

ESD steel pipe Logiform wall thickness 1 mm - Black

ESD steel pipe Logiform wall thickness 1 mm - Black Code: CP-1100_BK

18.00 € without VAT (21.78 € with VAT)

ESD steel pipe Logiform wall thickness 1 mm - Black Code: CP-1100_BK

Logiform Conductive Pipe, Ø 28 mm, length 4000 mm, wall thickness 1 mm, color black. Antistatic (ESD) design.

ESD steel pipe Logiform wall thickness 2 mm - Black

ESD steel pipe Logiform wall thickness 2 mm - Black Code: CP-1200_BK

In stock

28.59 € without VAT (34.59 € with VAT)

ESD steel pipe Logiform wall thickness 2 mm - Black Code: CP-1200_BK

Logiform Conductive Pipe, Ø 28 mm, length 4000 mm, wall thickness 2 mm, color black. Antistatic (ESD) design.

ESD steel pipe Logiform with a wall thickness of 1 mm – color grey

ESD steel pipe Logiform with a wall thickness of 1 mm – color grey Code: AP-1100_GR

In stock

24.57 € without VAT (29.73 € with VAT)

ESD steel pipe Logiform with a wall thickness of 1 mm – color grey Code: AP-1100_GR

Logiform Antistatic Pipe, Ø 28 mm, length 4000 mm, wall thickness 1 mm, color gray. Antistatic (ESD) design.

Logiform stainless steel pipe, wall thickness 0,7 mm

Logiform stainless steel pipe, wall thickness 0,7 mm Code: ST-1070

In stock

14.41 € without VAT (17.44 € with VAT)

Logiform stainless steel pipe, wall thickness 0,7 mm Code: ST-1070

Logiform stainless steel tube, Ø 28 mm, length 4000 mm, wall thickness 0.7 mm. Easy maintenance, electrically conductive surface, high resistance to oils and chemicals.

Logiform stainless steel pipe, wall thickness 1.1 mm

Logiform stainless steel pipe, wall thickness 1.1 mm Code: ST-1110

In stock

21.53 € without VAT (26.05 € with VAT)

Logiform stainless steel pipe, wall thickness 1.1 mm Code: ST-1110

Logiform stainless steel pipe, Ø 28 mm, length 4000 mm, wall thickness 1.1 mm. Easy maintenance, electrically conductive surface, high resistance to oils and chemicals.

Logiform aluminum tube, wall thickness 1.5 mm

Logiform aluminum tube, wall thickness 1.5 mm Code: AL-1150

In stock

27.09 € without VAT (32.78 € with VAT)

Logiform aluminum tube, wall thickness 1.5 mm Code: AL-1150

Logiform aluminum tube, Ø 28 mm, length 4000 mm, wall thickness 1.5 mm. Low weight with high strength.

Logiform steel pipe with sliding surface - Grey

Logiform steel pipe with sliding surface - Grey Code: SL-1100_GR

In stock

18.89 € without VAT (22.86 € with VAT)

Logiform steel pipe with sliding surface - Grey Code: SL-1100_GR

Logiform Slide Pipe, Ø 28 mm, length 4000 mm, wall thickness 1 mm, color gray. The tube is equipped with a sliding surface.

Metal joint - set HJ-1

In stock

Metal joint - set HJ-1 Code: HJ-1

1.34 € without VAT (1.62 € with VAT)

Metal joint - set HJ-1 Code: HJ-1

Metal joint - set HJ-1, color black, silver or ESD design Nickel. Price for 1 pc including connecting material.

Metal joint - set HJ-1B

In stock

Metal joint - set HJ-1B Code: HJ-1B

1.80 € without VAT (2.18 € with VAT)

Metal joint - set HJ-1B Code: HJ-1B

Metal joint set HJ-1B, color black, silver or ESD design Nickel. Price for 1 pc including connecting material.

Metal joint - set HJ-8

In stock

Metal joint - set HJ-8 Code: HJ-8

1.42 € without VAT (1.72 € with VAT)

Metal joint - set HJ-8 Code: HJ-8

Metal joint set HJ-8, color black, silver or ESD design Nickel. Price for 1 pc including connecting material.

Masking tape

Masking tape Code: COVER TAPE

In stock

25.20 € without VAT (30.49 € with VAT)

Masking tape Code: COVER TAPE

Masking tape, color black. Suitable for protecting various surfaces.

Logiform stainless steel pipe, wall thickness 2 mm

Logiform stainless steel pipe, wall thickness 2 mm Code: ST-1200

In stock

39.02 € without VAT (47.21 € with VAT)

Logiform stainless steel pipe, wall thickness 2 mm Code: ST-1200

Stainless steel pipe Ø 28 mm, length 4000 mm, wall thickness 2 mm. Easy maintenance, high resistance to oils and chemicals.

Steel pipe EP-1100GR with a wall thickness of 1 mm - color gray

Steel pipe EP-1100GR with a wall thickness of 1 mm - color gray Code: EP-1100_GR

In stock

12.36 € without VAT (14.96 € with VAT)

Steel pipe EP-1100GR with a wall thickness of 1 mm - color gray Code: EP-1100_GR

Steel pipe EP-1100GR with a wall thickness of 1 mm - gray color.

Logiform tubes for the pipe modular system: 28 mm diameter, 0.7–2 mm wall

Logiform structural pipes are the basis of the pipe modular system. They have an outer diameter of 28 mm, a length of 4000 mm and a wall thickness of 0.7–2 mm depending on the material; Logiform pipes come with a 5-year warranty. Standard steel tubes are coated with synthetic resin that protects them in demanding industrial operation, and they are made in colours ranging from white, grey and blue to black, green, red and yellow. The pipes are used to build assembly workstations, shelving, transport carts and conveyors – and when production changes, a cart can be rebuilt into a shelf, for example.

Steel, stainless steel or aluminum pipes?

Steel pipes are the universal choice: the Logiform LP-1100 steel tube with a 1 mm wall weighs 676 g/m, the LP-1200 version with a 2 mm wall 1265 g/m. Stainless steel pipes with a 0.7–2 mm wall suit clean and humid production areas, while aluminum pipes with a 1.5 mm wall weigh only 380 g/m. Steel and aluminum differ mainly in weight and in the type of joints; pipe systems also withstand operation with oils and emulsions.

ESD tubes and joints for antistatic workstations

For electronics, Logiform tubes are available as ESD steel tubes with a 1 or 2 mm wall in black or grey, alongside ESD versions of the ECCO tubes. They are matched by metal joints in a nickel-plated ESD finish; the joints also come in black and silver, individually or as metal joint sets. Every ESD structure from Enprag is supplied with a protocol from a certified measurement.

Logiform structural pipes Ø28 mm by version
Version	Wall thickness	Properties	Example
Steel with resin coating	1 / 2 mm	676 / 1265 g/m, colour options	LP-1100, LP-1200
ECCO steel	0.7–2 mm	grey, also in ESD version	PP-1070MG, PP-1200EG
ESD steel	1 / 2 mm	black or grey	CP-1200_BK, AP-1100_GR
Stainless steel	0.7 / 1.1 / 2 mm	448 g/m with 0.7 mm wall, ESD	ST-1070, ST-1200
Aluminum	1.5 mm	380 g/m	AL-1150
Steel with sliding surface	–	sliding surface for linear movement	SL-1100_GR
Safety steel tube	1 mm	length 4000 mm	LP-1100_SAFETY

Not sure which pipe to choose? Enprag designers will recommend the material and wall thickness based on the load capacity and dimensions of your structure; the design and 3D visualization are free of charge. Contact Enprag.

Frequently asked questions

What is the difference between steel and aluminum structural pipes?

Mainly the weight and the type of joints: the Enprag Logiform steel pipe with a 1 mm wall weighs 676 g/m, the aluminum pipe with a 1.5 mm wall 380 g/m. Both have a diameter of 28 mm, so they stay within one modular system.

How do I choose the wall thickness of a structural pipe?

By the load capacity and dimensions of the structure – Enprag designers recommend the right thickness. Walls of 0.7–2 mm are available; structures made from pipe systems are designed for a maximum deflection of 5 mm.

Do you supply structural pipes cut to length?

Yes, Enprag supplies pipes in the full length of 4000 mm or cut to customer requirements, including assembly instructions and a production drawing. The third option is a fully assembled structure.

Are structural pipes available in an ESD version?

Yes, Enprag offers ESD Logiform steel tubes with a 1 and 2 mm wall as well as ESD versions of the ECCO and stainless steel tubes. Every ESD structure is supplied with a protocol from a certified measurement.
