Chassis for EURO pallet with drawbar 24021102

Code: 24021102

A handling cart for EURO pallets with a drawbar that allows multiple carts to be connected in a row (the so-called Milk-run system). The cart is suitable for various handling purposes in warehouses full description and parameters

Made to order, delivery time 2 - 8 weeks.

499.60 Eur (604.52 Eur with VAT)
Product description

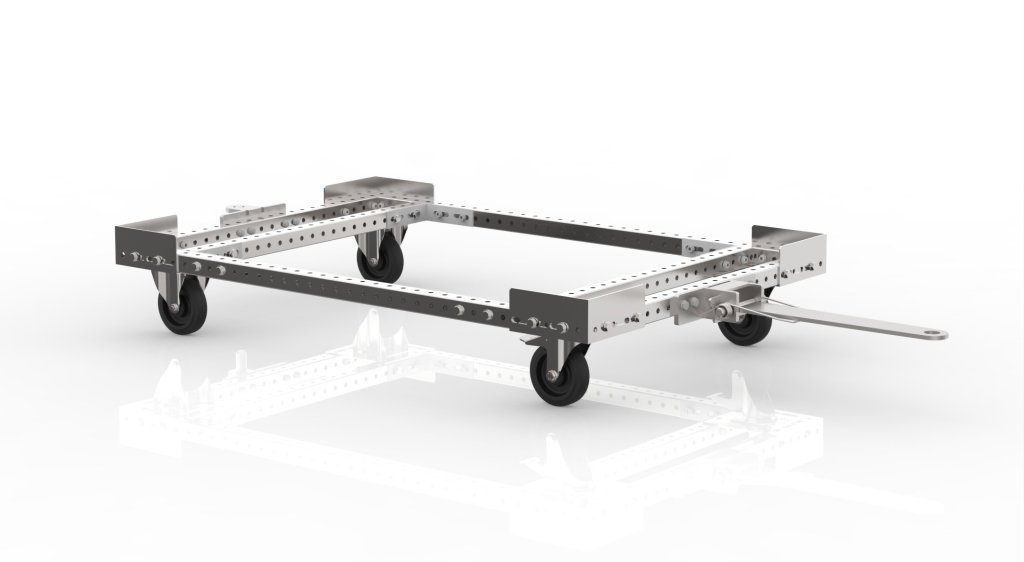

Chassis for EURO pallet with drawbar 24021102

A handling cart for EURO pallets with a drawbar that allows multiple carts to be connected in a row (the so-called Milk-run system). The cart is suitable for various handling purposes in warehouses and workshops. With its high load capacity of 750 kg, it is ideal for transporting heavier items. The cart includes 2 swivel castors with brakes and 2 swivel castors without brakes, each with a diameter of 125 mm, enabling easy handling of items. The dimensions of the cart are 1240 x 840 x 238 mm. ESD version available.

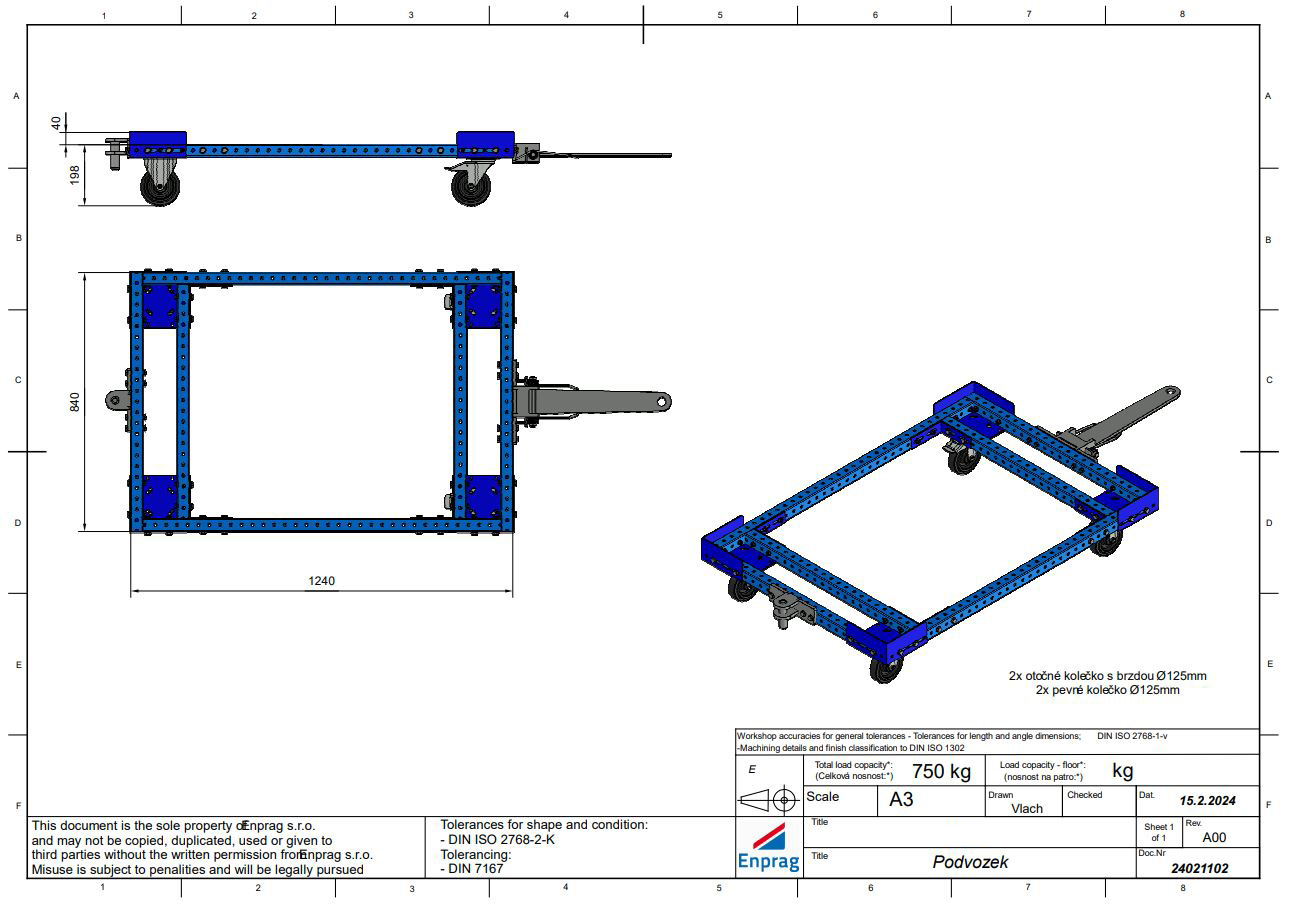

  • Dimensions 1240 x 840 x 238 mm
  • Suitable for handling heavy items
  • 2x swivel castors with brakes Ø125 mm
  • 2x fixed castors Ø125 mm
  • ESD version available
  • Load capacity 750 kg

Custom application, all dimensions can be adjusted according to customer needs.

Technical parameters
Total height
238 mm
Width
840 mm
Length
1240 mm
Carrying capacity
750 kg
Warranty (years)
2
