Chassis for two EURO pallets with drawbar 24021502

Code: 24021502

A handling cart for two EURO pallets with a drawbar that allows multiple carts to be connected in a row (the so-called Milk-run system). The cart is suitable for various handling purposes in full description and parameters

Made to order, delivery time 2 - 8 weeks.

979.60 Eur (1 185.32 Eur with VAT)
Product description

Chassis for two EURO pallets with drawbar 24021502

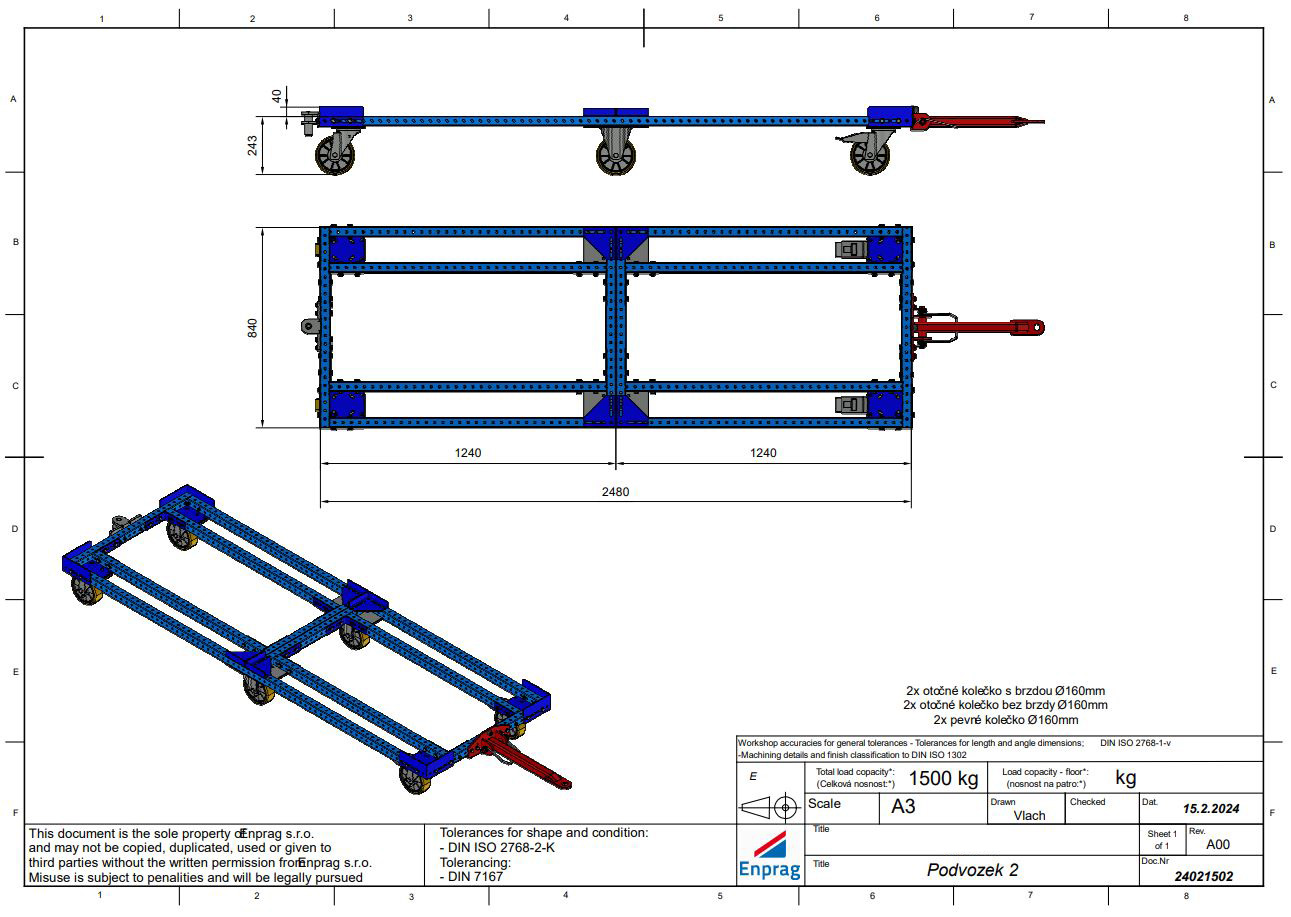

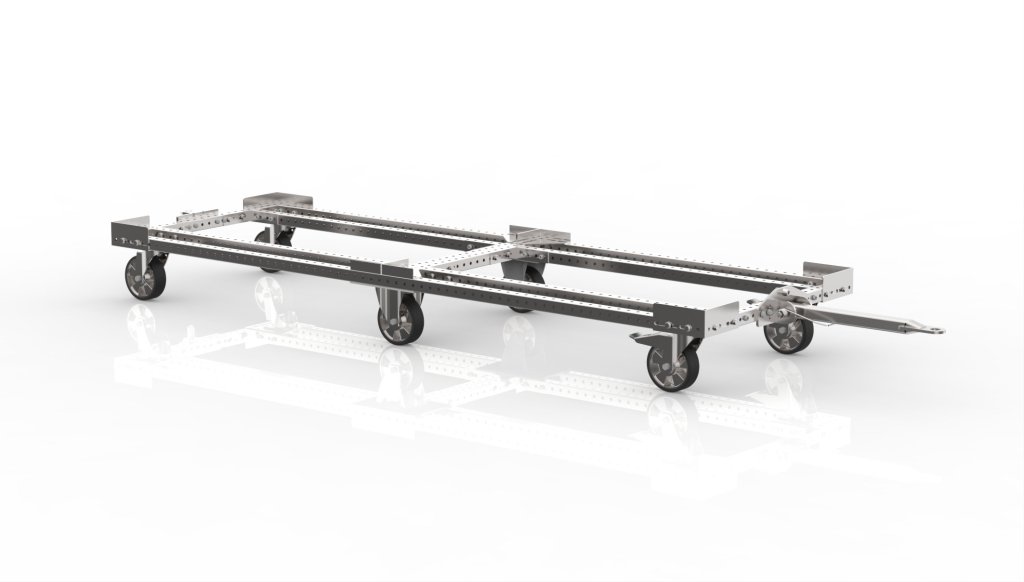

A handling cart for two EURO pallets with a drawbar that allows multiple carts to be connected in a row (the so-called Milk-run system). The cart is suitable for various handling purposes in warehouses and workshops. With its high load capacity of 1500 kg, it is ideal for transporting heavier items. The cart includes 2 swivel castors with brakes, 2 swivel castors without brakes, and 2 fixed castors with a diameter of 160 mm, enabling easy handling of items. The dimensions of the cart are 283 x 2480 x 840 mm. ESD version available.

  • Dimensions 283 x 2480 x 840 mm
  • 2x swivel castors with brakes, 2x swivel castors without brakes, 2x fixed castors
  • Castor diameter 160 mm
  • Possibility to connect multiple carts in a row (the so-called Milk-run system)
  • ESD version available
  • Load capacity 1500 kg

Custom application, all dimensions can be adjusted according to customer needs.

Technical parameters
Total height
283 mm
Width
2480 mm
Depth
840 mm
Carrying capacity
1500 kg
Wheel diameter
mm
Warranty (years)
2
