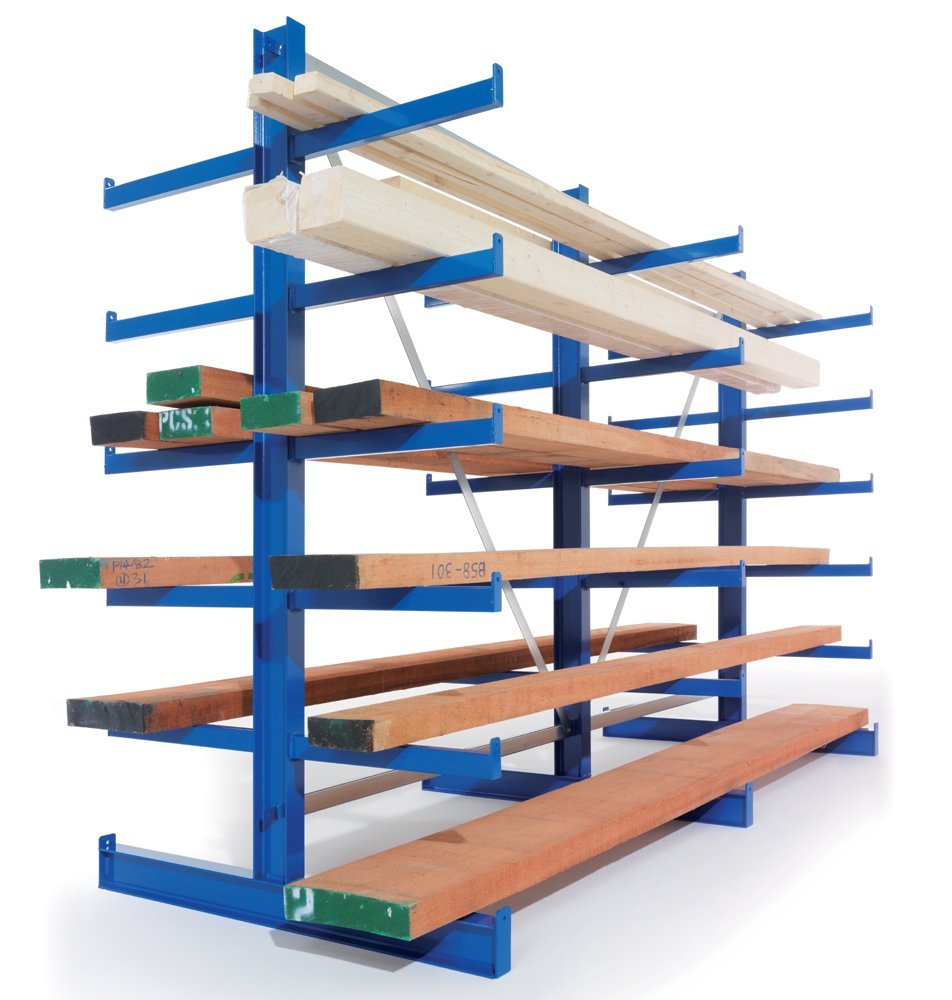

Double-sided console rack type 97841 - 1

Double-sided console rack type 97841 - 2

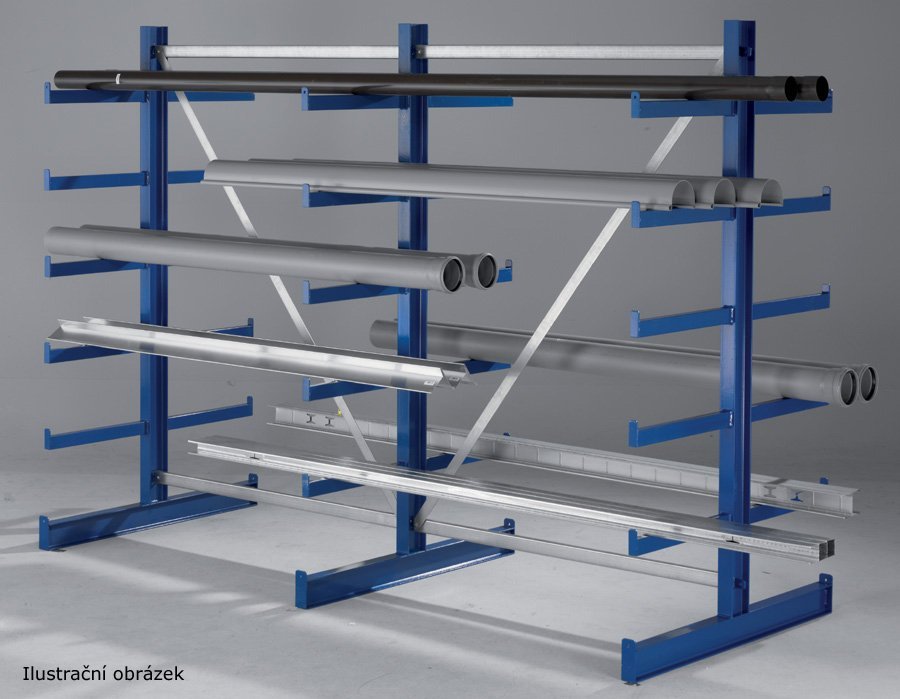

Double-sided console rack type 97841 - 3

Double-sided console rack type 97841

Code: 97841

Atlas ST double-sided cantilever rack with the same arm length. Number of arms 2 x 5 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 1150 mm, color blue RAL 5010. Arm capacity 200 full description and parameters

Product description

Double-sided console rack type 97841

Atlas ST double-sided cantilever rack with the same arm length. Number of arms 2 x 5 per web, number of webs 6. Rack height 2000 mm, width 6750 mm, depth 1150 mm, color blue RAL 5010. Arm capacity 200 kg.

with the number of webs 3, the total width of the shelf is 2700 mm
with the number of webs 4, the total width of the shelf is 4050 mm
with the number of webs 5, the total width of the rack is 5400 mm
with the number of webs 6, the total width of the rack is 6750 mm

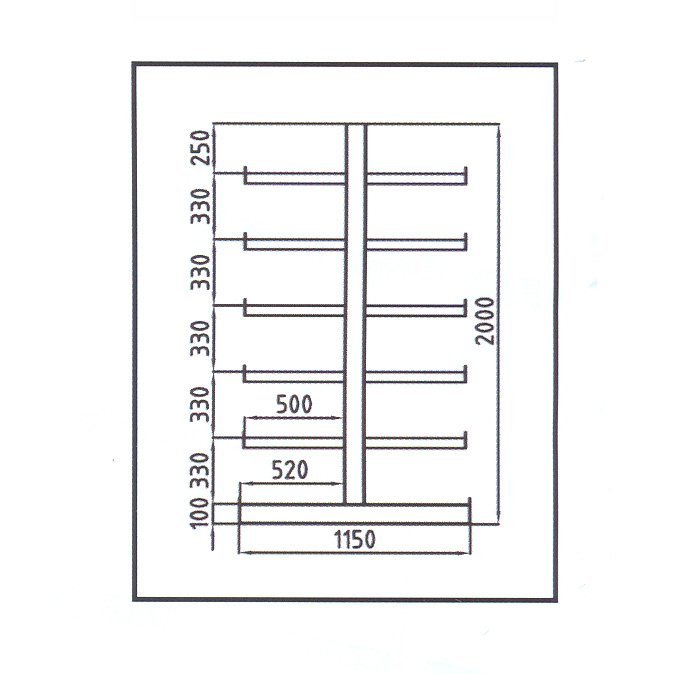

axial distance of webs is 1350 mm
arm capacity 200kg
clearance between arms 300 mm
clear arm depth 500 mm

Technical parameters

Total height

2000 mm

Width

6750 mm

Depth

1150 mm

Column load capacity

1200 kg

Carrying capacity of the arm

200 kg

Number of arms

10

Number of webs

6

Mass

251 kg

Warranty (years)

5

Manufacturer

All models

Technical parameters

Code

Mass

Number of webs

Number of arms

Carrying capacity of the arm

Column load capacity

Total height

Width

Depth

In stock

Price

97837

97837

125 kg

3

10

200 kg

1200 kg

2000 mm

2700 mm

1150 mm

No

426.99 Eur

97839

97839

167 kg

4

10

200 kg

1200 kg

2000 mm

4050 mm

1150 mm

No

569.82 Eur

97840

97840

209 kg

5

10

200 kg

1200 kg

2000 mm

5400 mm

1150 mm

No

721.37 Eur

You are currently browsing

97841

97841

251 kg

6

10

200 kg

1200 kg

2000 mm

6750 mm

1150 mm

No

864.20 Eur
