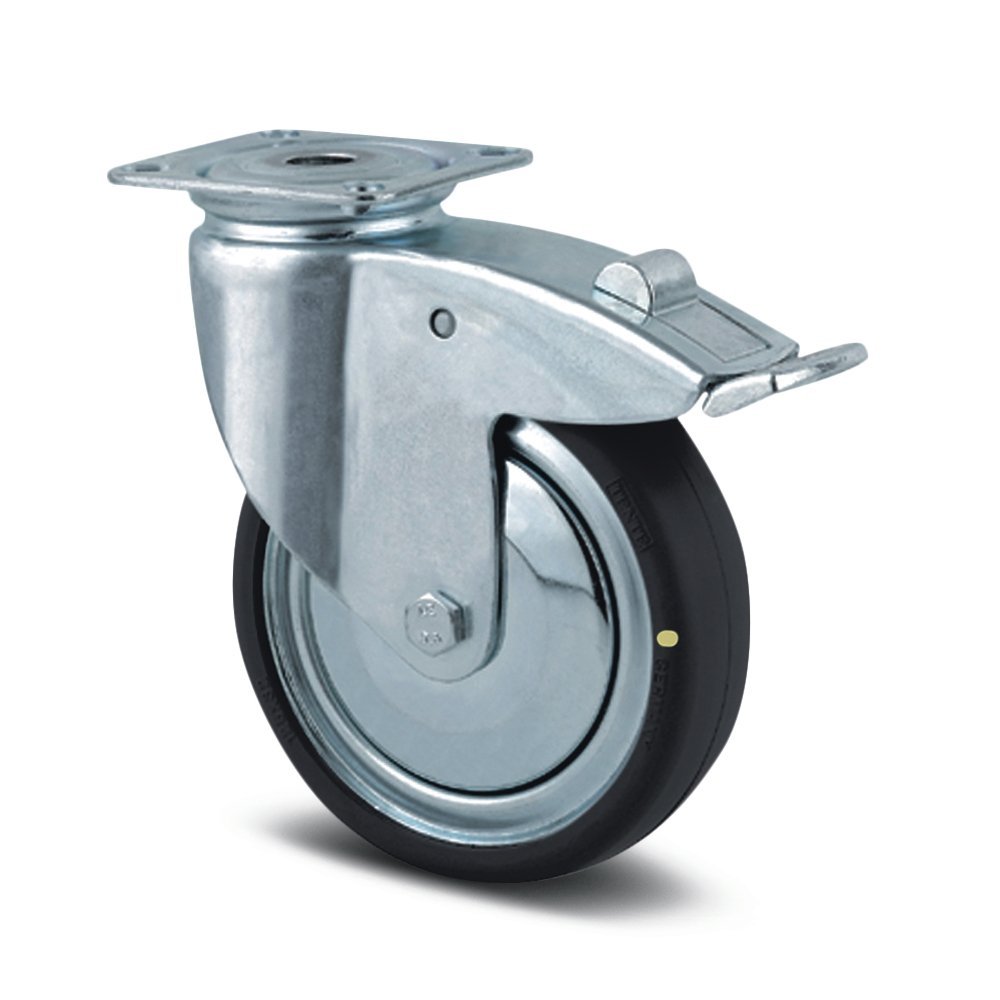

Electrically conductive wheel with total brake and mounting plate (2 models)

Code: 2477DYK075P40

Electrically conductive swivel wheel of ø 75 mm with total brake, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, mounting with full description and parameters

Product description

Electrically conductive wheel ø 75 mm with total brake and mounting plate 2477DYK075P40

Electrically conductive swivel wheel of ø 75 mm with total brake, suitable according to ESD, fork made of pressed steel, galvanized, double ball bearing in the swivel head of the wheel, mounting with plate. Wheel center made of steel extrusion, black rubber non-blackening rim tread, lint-free cover, taper bearing.

wheel center made of pressed steel
tread from black rubber non-blackening hoop
tapered bearing
temperature resistance -20 °C to 85 °C
plate size 60 x 60 mm
hole spacing 48/38 x 48/38 mm
hole diameter 6.3 mm
dynamic load capacity 55 kg
static load capacity 110 kg
wheel diameter 75 mm
tread width 25 mm
tread hardness Shore A80
meets the EN 12530 standard
building height 100 mm

Technical parameters

Carrying capacity

55 kg

Wheel diameter

75 mm

Warranty (years)

7

Manufacturer

All models

Technical parameters

Code

Wheel diameter

Carrying capacity

In stock

Price

You are currently browsing

2477DYK075P40

75 mm

55 kg

No

28.92 Eur

2477DYK100P50

100 mm

80 kg

No

34.74 Eur
