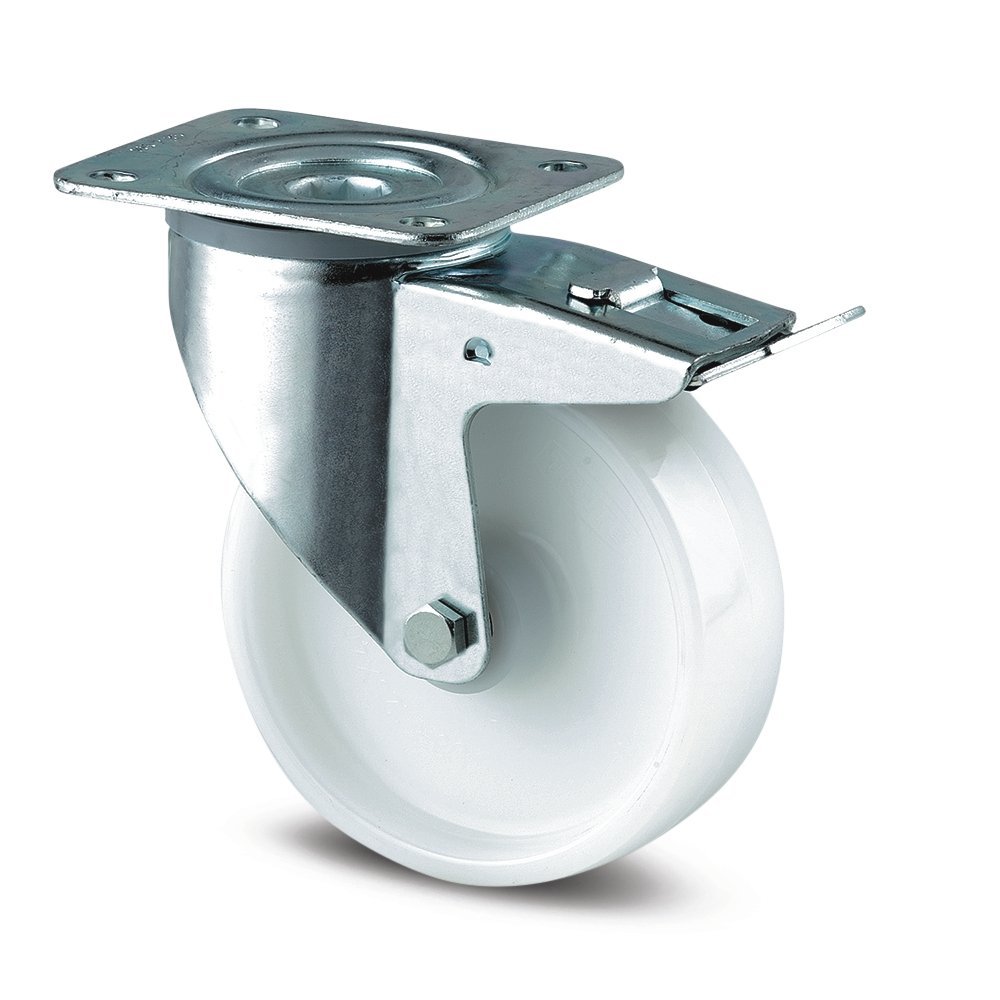

Swivel industrial wheel, white, ø 160 mm, with total brake and mounting plate

Code: 3477UOR160P63

Rotating industrial wheel ø 160 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in the swivel head, wheel with screw and nut with anti-fiber cover, mounting with full description and parameters

Product description

Swivel industrial wheel, white, ø 160 mm, with total brake and mounting plate 3477UOR160P63

Rotating industrial wheel ø 160 mm with total brake, fork made of pressed steel, galvanized, double-row ball track in the swivel head, wheel with screw and nut with anti-fiber cover, mounting with plate. Wheel center made of polyamide, needle bearing.

Polyamide wheel center
temperature resistance -40 °C to 80 °C
plate size 137 x 105 mm
hole spacing 105 x 80/75 mm
hole diameter 11 mm
dynamic load capacity 350 kg
static load capacity 700 kg
wheel diameter 160 mm
tread width 40 mm
tread hardness Shore D75
meets the EN 12532 standard
building height 200 mm

Technical parameters

Carrying capacity

350 kg

Wheel diameter

160 mm

Warranty (years)

7

Manufacturer

All models

Technical parameters

Code

Wheel diameter

Carrying capacity

In stock

Price

3477UOR100P62

100 mm

200 kg

No

16.85 Eur

3477UOR125P62

125 mm

250 kg

No

18.87 Eur

You are currently browsing

3477UOR160P63

160 mm

350 kg

No

31.20 Eur

3477UOR200P63

200 mm

350 kg

No

43.59 Eur
