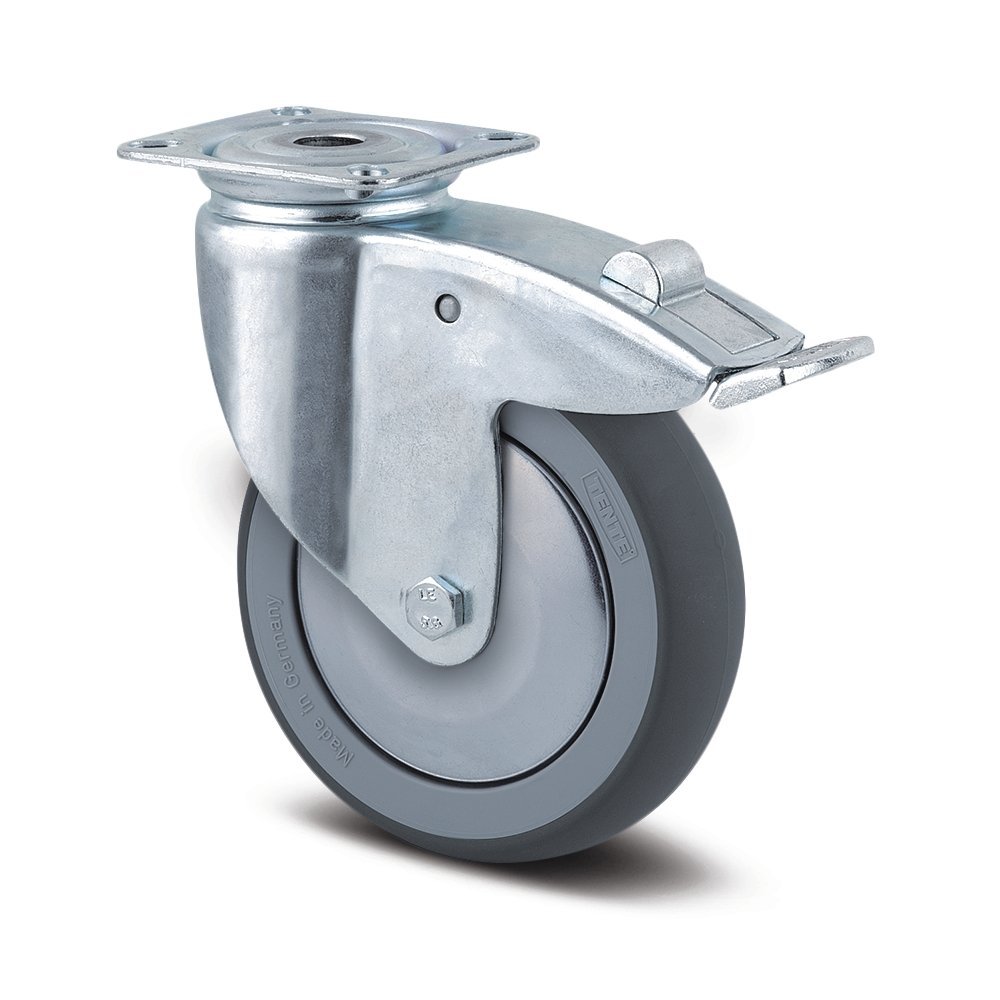

Gray instrument wheel ø 100 mm with total brake, mounting with plate

Code: 2477PJH100P50

Rotating instrument wheel of ø 100 mm with total brake, fork made of pressed steel, double ball bearing in the rotating head, attachment with plate. The center of the wheel is made of polypropylene, full description and parameters

Product description

Instrument wheel gray ø 100 mm mounting with plate with total brake 2477PJH0100P50

Rotating instrument wheel of ø 100 mm with total brake, fork made of pressed steel, double ball bearing in the rotating head, attachment with plate. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing.

polypropylene wheel center
gray non-marking thermoplastic rubber tread
double ball bearing with thread protection
temperature resistance -20 °C to 60 °C
plate size 77 x 67 mm
hole spacing 61.5/56 x 51.5/46.5 mm
hole diameter 8.5 mm
turning radius 131 mm
dynamic load capacity 80 kg
static load capacity 160 kg
wheel diameter 100 mm
tread width 32 mm
tread hardness Shore A87
meets the EN 12530 standard
building height 135 mm

Technical parameters

Carrying capacity

80 kg

Wheel diameter

100 mm

Bearings

ball

Warranty (years)

7

Manufacturer

All models

Technical parameters

Code

Bearings

Wheel diameter

Carrying capacity

In stock

Price

2477PJH075P40

ball

75 mm

75 kg

Yes

8.45 Eur

You are currently browsing

2477PJH100P50

ball

100 mm

80 kg

No

18.37 Eur

2477PJH125P50

ball

125 mm

80 kg

Yes

22.17 Eur
