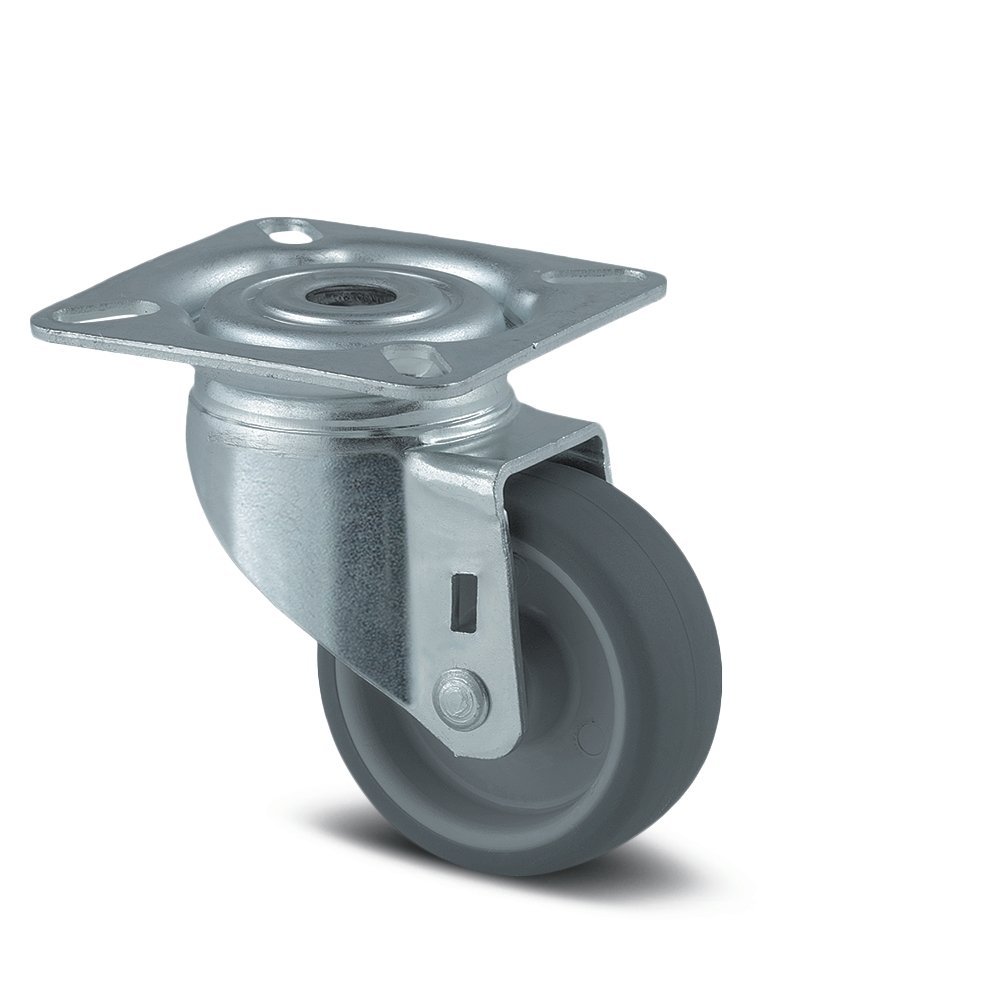

Gray instrument wheel with plate attachment, center riveted
Code: 2470PJI050P40
Rotating instrument wheel with ø 50 mm, fork made of pressed steel, double ball bearing in the rotating head, center riveted, mounting with plate. The center of the wheel is made of polypropylene, the full description and parameters
Product description
Tool wheel gray ø 50 mm with mounting plate 2470PJI050P40
Rotating instrument wheel with ø 50 mm, fork made of pressed steel, double ball bearing in the rotating head, center riveted, mounting with plate. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing.
- polypropylene wheel center
- gray non-marking thermoplastic rubber tread
- double ball bearing in the swivel head
- temperature resistance -20 °C to 60 °C
- plate size 60 x 60 mm
- hole spacing 48/38 x 48/38 mm
- hole diameter 6.3 mm
- turning radius 49 mm
- dynamic load capacity 40 kg
- static load capacity 80 kg
- wheel diameter 50 mm
- tread width 19 mm
- tread hardness Shore A87
- meets the EN 12530 standard
- building height 69 mm
Technical parameters
Carrying capacity
40 kg
Wheel diameter
50 mm
Bearings
ball
Warranty (years)
7
Manufacturer
