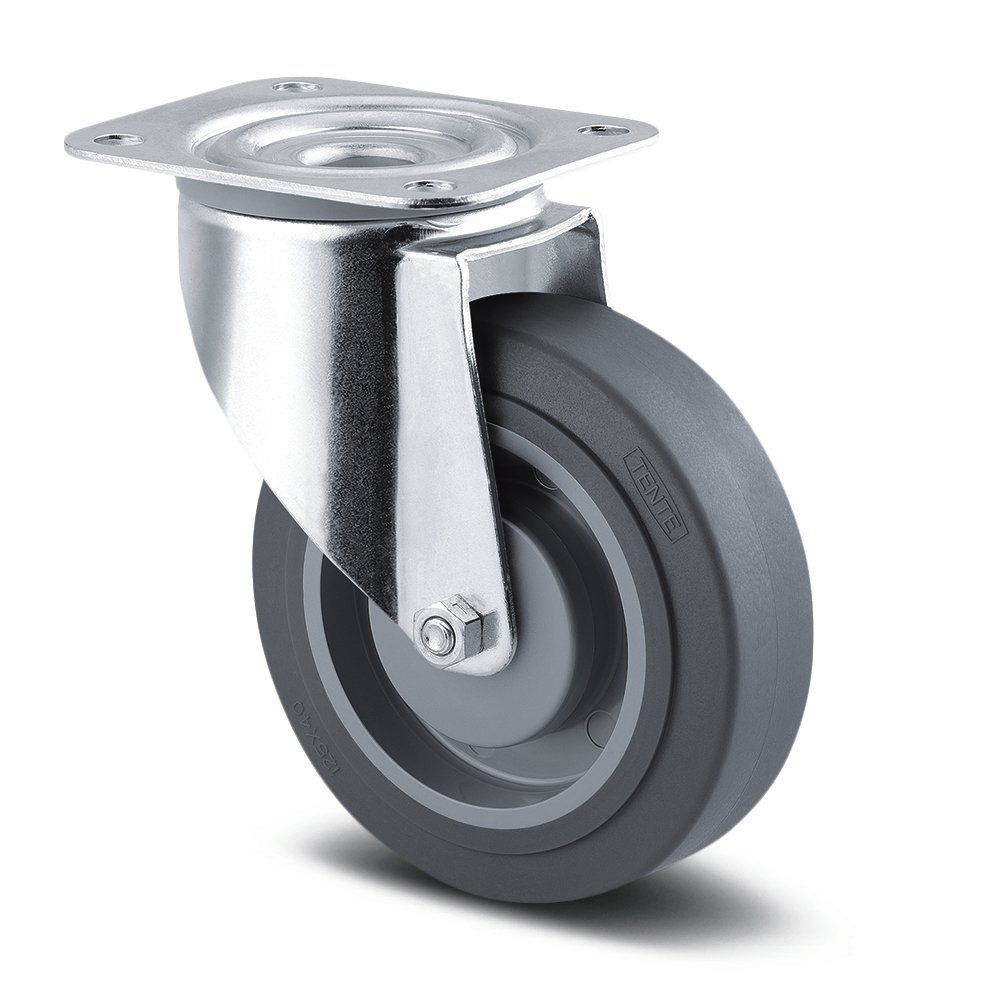

Gray supratech instrument wheel with plate attachment, rotatable (3 models)

Code: 3470PJP100P62

Rotating instrument wheel with a diameter of 100 mm, fork made of pressed steel, galvanized, double-row ball track in the rotating head, wheel fixed with a screw and nut, anti-filament cover, fixing full description and parameters

Product description

Tool wheel gray supratech ø 100 mm with mounting plate 3470PJP100P62

Rotating instrument wheel with a diameter of 100 mm, fork made of pressed steel, galvanized, double-row ball track in the rotating head, wheel fixed with a screw and nut, anti-filament cover, fixing with a plate. Wheel center made of polypropylene, tread made of gray TENTEprene (thermoplastic rubber), precision ball bearing.

polypropylene wheel center
gray non-marking thermoplastic rubber tread
double-row ball bearing with fiber wrap protection
temperature resistance -20 °C to 60 °C
plate size 105 x 85 mm
hole spacing 80/77 x 60 mm
hole diameter 9 mm
turning radius 91 mm
dynamic load capacity 110 kg
static load capacity 220 kg
wheel diameter 100 mm
tread width 35 mm
tread hardness Shore A65
meets the EN 12532 standard
building height 128 mm

Technical parameters

Carrying capacity

110 kg

Wheel diameter

100 mm

Bearings

ball

Warranty (years)

7

Manufacturer

All models

Technical parameters

Code

Bearings

Wheel diameter

Carrying capacity

In stock

Price

You are currently browsing

3470PJP100P62

ball

100 mm

110 kg

No

15.60 Eur

3470PJP125P62

ball

125 mm

180 kg

No

21.10 Eur

3470PJP200P63

ball

200 mm

250 kg

No

44.93 Eur
