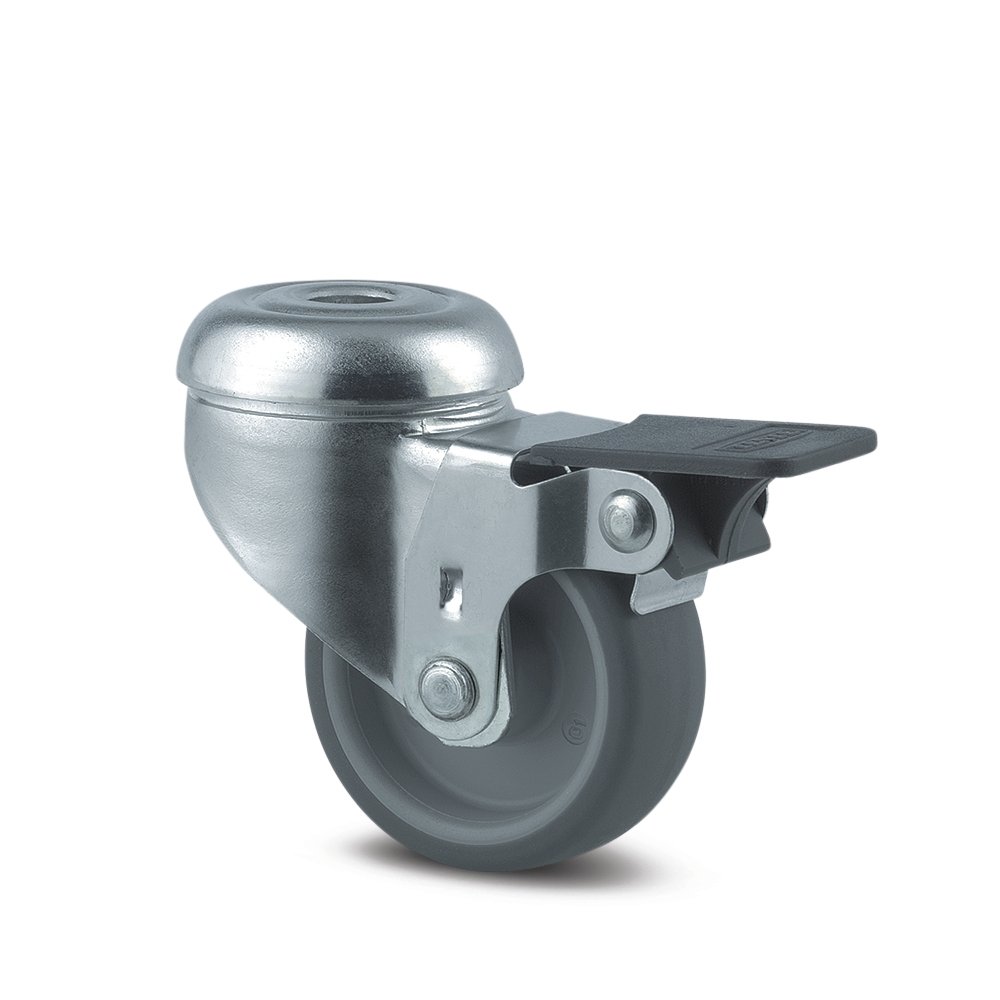

Instrument wheel gray with brake, pin hole, center riveted

Code: 2475PJI050P30-11

Rotating instrument wheel with brake ø 50 mm, fork made of pressed steel, double ball bearing in swivel head, center riveted, hole for pin. The center of the wheel is made of polypropylene, the tread full description and parameters

Product description

Instrument wheel gray with brake ø 50 mm 2470PJI050P30-11

Rotating instrument wheel with brake ø 50 mm, fork made of pressed steel, double ball bearing in swivel head, center riveted, hole for pin. The center of the wheel is made of polypropylene, the tread is made of gray TENTEprene (thermoplastic rubber), sliding bearing. It can be mounted with standard screws of any length.

polypropylene wheel center
gray non-marking thermoplastic rubber tread
double ball bearing with thread protection
temperature resistance -20 °C to 60 °C
diameter of central hole 11 mm
turning radius 49 mm
dynamic load capacity 40 kg
static load capacity 80 kg
wheel diameter 50 mm
tread width 19 mm
tread hardness Shore A87
meets the EN 12530 standard
building height 69 mm

Technical parameters

Carrying capacity

40 kg

Wheel diameter

50 mm

Bearings

ball

Warranty (years)

7

Manufacturer
