Modular system components for workstations, racks and roller tracks

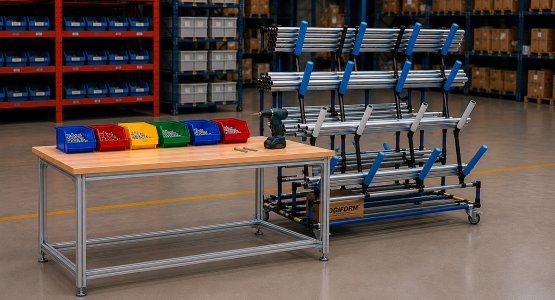

Modular system components from Enprag are the parts for building workstations, racks, carts and roller tracks without welding: Logiform tubes Ø 28 mm, aluminum profiles from 30 × 30 to 45 × 90 mm, square steel tubes, joints and roller tracks. They are intended for production and logistics operations that need to adapt their structures as production evolves. Most material is in stock, we cut profiles to size and prepare the design with 3D visualization free of charge. more

Pipe modular system

Pipe modular system

Aluminum profile system

Square tube modular system

Square tube modular system

Cube system

Rail system

Accessories

Detailed filtering

We recommend From the cheapest From the most expensive

Nut with spring KEE-40

Nut with spring KEE-40 Code: KEE-40

In stock

0.33 € without VAT (0.40 € with VAT)

Nut with spring KEE-40 Code: KEE-40

Nut with spring for the ability to adjust the position of the nut in the profile groove. Thread M8, weight 10.2 g.

Half round head screw KDB-8x16

Half round head screw KDB-8x16 Code: KDB-8*16

0.49 € without VAT (0.59 € with VAT)

Half round head screw KDB-8x16 Code: KDB-8*16

A half round head screw is a type of common fastener with a rounded head. This design provides better force distribution when tightening the bolt and ensures a strong connection. Thread diameter M8. Total length 20.4 mm. Weight 8.11 g.

Roller track PL-401F

Roller track PL-401F Code: PL-401F

In stock

35.32 € without VAT (42.74 € with VAT)

Roller track PL-401F Code: PL-401F

Roll track width 40 mm, total length 4000 mm. Steel body, roller diameter 30 mm, roller color white, gray or ESD black.

Roller track PL-401G

Roller track PL-401G Code: PL-401G

In stock

37.41 € without VAT (45.27 € with VAT)

Roller track PL-401G Code: PL-401G

Roll track width 40 mm, total length 4000 mm. Steel body, guide rollers with a higher edge on one side, roller diameter 46 mm, roller color white or ESD black.

Roller track holder type PM-4010A

Roller track holder type PM-4010A Code: PM-4010A

In stock

1.72 € without VAT (2.08 € with VAT)

Roller track holder type PM-4010A Code: PM-4010A

Mounting roller track type PM-4010A. For tracks with a width of 40 mm with a steel body.

Roller track holder type PM-4010BR

Roller track holder type PM-4010BR Code: PM-4010BR

In stock

1.95 € without VAT (2.36 € with VAT)

Roller track holder type PM-4010BR Code: PM-4010BR

Mounting roller track type PM-4010BR. For tracks with a width of 40 mm with a steel body.

Aluminum profile 45 x 90, MI45x90L B10 1 m + cut to size Code: MI45x90L B10

In stock

30.59 € without VAT (37.01 € with VAT)

Aluminum profile 45 x 90, MI45x90L B10 1 m + cut to size Code: MI45x90L B10

Aluminum profile with dimensions of 45 x 90 mm. The price is given per 1 m. The maximum length of one profile is 6 m.

Safety Steel Tube LP-100_SAFETY

Safety Steel Tube LP-100_SAFETY Code: LP-1100_SAFETY

In stock

32.31 € without VAT (39.10 € with VAT)

Safety Steel Tube LP-100_SAFETY Code: LP-1100_SAFETY

Steel Tube Logiform, Ø 28 mm, length 4000 mm, wall thickness 1 mm. Steel tube with a surface coated in safety synthetic resin.

Logiform aluminum tube, wall thickness 1.5 mm

Logiform aluminum tube, wall thickness 1.5 mm Code: AL-1150

In stock

27.09 € without VAT (32.78 € with VAT)

Logiform aluminum tube, wall thickness 1.5 mm Code: AL-1150

Logiform aluminum tube, Ø 28 mm, length 4000 mm, wall thickness 1.5 mm. Low weight with high strength.

ESD steel pipe Logiform with a wall thickness of 1 mm – color grey

ESD steel pipe Logiform with a wall thickness of 1 mm – color grey Code: AP-1100_GR

In stock

24.57 € without VAT (29.73 € with VAT)

ESD steel pipe Logiform with a wall thickness of 1 mm – color grey Code: AP-1100_GR

Logiform Antistatic Pipe, Ø 28 mm, length 4000 mm, wall thickness 1 mm, color gray. Antistatic (ESD) design.

Logiform steel pipe with sliding surface - Grey

Logiform steel pipe with sliding surface - Grey Code: SL-1100_GR

In stock

18.89 € without VAT (22.86 € with VAT)

Logiform steel pipe with sliding surface - Grey Code: SL-1100_GR

Logiform Slide Pipe, Ø 28 mm, length 4000 mm, wall thickness 1 mm, color gray. The tube is equipped with a sliding surface.

Aluminum profile 30 x 30, KA-3030 1 m + cut to size Code: KA-3030

In stock

12.73 € without VAT (15.40 € with VAT)

Aluminum profile 30 x 30, KA-3030 1 m + cut to size Code: KA-3030

Aluminium profile with dimensions of 30 x 30 mm. The price is given for 1 m. The maximum length of one profile is 4 m.

Aluminum profile 30 x 30, MI30x30 B8 1 m + cut to size Code: MI30x30 B8

In stock

11.73 € without VAT (14.19 € with VAT)

Aluminum profile 30 x 30, MI30x30 B8 1 m + cut to size Code: MI30x30 B8

Aluminum profile with dimensions of 30 x 30 mm. The price is given per 1 m. The maximum length of one profile is 6 m.

Aluminum profile AL profil-40x20x2mm 1 m + cut to size Code: AL profil-40x20x2mm

In stock

6.63 € without VAT (8.02 € with VAT)

Aluminum profile AL profil-40x20x2mm 1 m + cut to size Code: AL profil-40x20x2mm

Aluminium profile with dimensions 40x20x2 mm. The price is listed per 1 meter. The maximum length of a single profile is 4 meters.

Aluminum profile AL profil-50x30x2mm 1 m + cut to size Code: AL profil-50x30x2mm

In stock

7.41 € without VAT (8.97 € with VAT)

Aluminum profile AL profil-50x30x2mm 1 m + cut to size Code: AL profil-50x30x2mm

Aluminium profile with dimensions 50x30x2 mm. The price is listed per 1 meter. The maximum length of a single profile is 4 meters.

Aluminum profile 40 x 40, MI40x40L B10 1 m + cut to size Code: MI40x40L B10

In stock

17.61 € without VAT (21.31 € with VAT)

Aluminum profile 40 x 40, MI40x40L B10 1 m + cut to size Code: MI40x40L B10

Aluminum profile with dimensions of 40 x 40 mm. The price is given per 1 m. The maximum length of one profile is 6 m.

Lean modular system built from tubes, profiles and joints

Modular system components from Enprag are sets of parts – tubes, aluminum profiles, square steel tubes, joints and roller tracks – used to build workstations, racks, carts and flow lines for lean manufacturing without welding. Logiform tubes have a diameter of 28 mm, a length of 4,000 mm and a wall thickness of 0.7–2 mm; aluminum profiles range from 30 × 30 to 45 × 90 mm in cross-section and are cut to size up to 4 or 6 m. Structures are designed for a maximum deflection of 5 mm and can be rebuilt with the original parts when production changes.

Which modular system to choose: pipe system or aluminum profiles?

The pipe modular system suits applications that call for versatility and easy reconfiguration. Tubes come in steel with a synthetic resin coating, stainless steel, aluminum, safety and ESD versions and are joined with metal joints, e.g. the Metal joint – set HJ-1 with 2 MJ-2101 joints, a screw and a nut. Choose the aluminum profile system for higher loads and more demanding operation; profiles with an 8 or 10 mm slot are compatible with item, Bosch Rexroth, Haberkorn and Alutec systems. Both systems can be combined in one assembly, most often for racks, material handling carts and assembly workstations.

Modular system parts for warehouses, roller tracks and higher loads

Modular system parts also include roller tracks 35 and 40 mm wide and 4,000 mm long with Ø 27–46 mm rollers, plus holders for mounting them. They are used to build FIFO flow racks with a standard 3° slope as well as the rail system. For sturdier structures there is the square tube modular system made of galvanized 40 × 40 × 2 and 45 × 45 × 3 mm square tubes up to 6 m long and perforated 40 × 40 mm square tubes. As a guide, custom tables are designed for up to 500 kg, carts for up to 1 t and racks for up to several tonnes.

Modular system components from Enprag – overview
Component type	Dimensions	Design	Example model
Logiform steel tubes	Ø 28 mm, 4,000 mm, wall 1–2 mm	coated, ESD, safety, with sliding surface	LP-1100, LP-1200
Stainless steel and aluminum tubes	Ø 28 mm, 4,000 mm, wall 0.7–1.5 mm	stainless steel (incl. ESD), aluminum	ST-1070, AL-1150
Metal joints for tubes	set 0.15 kg (2 joints, screw, nut)	Black, Silver, Nickel (ESD)	HJ-1, HJ-2
Aluminum profiles	30 × 30 to 45 × 90 mm, up to 4 or 6 m	8 and 10 mm slot, cut to size	KA-4040, MI45x90L B10
Square steel and perforated tubes	40 × 40 and 45 × 45 mm, wall 2–3 mm, up to 6 m	galvanized, blue	WJ-SQ4040-000, 45x45x3 mm tube
Roller tracks	width 35–40 mm, 4,000 mm, rollers Ø 27–46 mm	steel body, grey or black	PL-351F, PL-401G
Fasteners and small parts	M8 thread, angle 40 × 35 × 40 mm	nuts, screws, angles, holders	KEE-40, KBA-40

Need a structure designed from a modular system? Send us a photo or a sketch with dimensions and the required load capacity – we will prepare the design and 3D visualization free of charge and send them to you for approval before the quotation. Contact Enprag's technical sales representatives.

Frequently asked questions

When should I choose the pipe modular system and when aluminum profiles?

Choose the Enprag pipe system where you need versatility and easy reconfiguration, and aluminum profiles from 30 × 30 to 45 × 90 mm for higher loads and more demanding operation. Our designers will recommend the tube wall thickness (0.7–2 mm) based on the load capacity and size of the structure.

Can aluminum profiles be combined with the pipe system in one structure?

Yes, Enprag routinely combines aluminum profiles with Ø 28 mm tubes in a single assembly, most often for racks, material handling carts and assembly workstations. This lets you use each system where it brings the greatest benefit.

In what form are modular system components supplied?

Enprag supplies components in 3 forms: as material (tubes in 4 m bars and joints by the piece), as cut material with assembly instructions and a production drawing, or as fully assembled structures. Material in stock is delivered within a few days, finished assemblies usually within 2–4 weeks.

How are modular systems assembled and what tools are needed?

Your maintenance team can handle the assembly with 3 basic tools – an Allen key, a hammer and a screwdriver. Enprag also offers free assembly training in its showroom or at your site, and the assembly manual is freely available for download.
